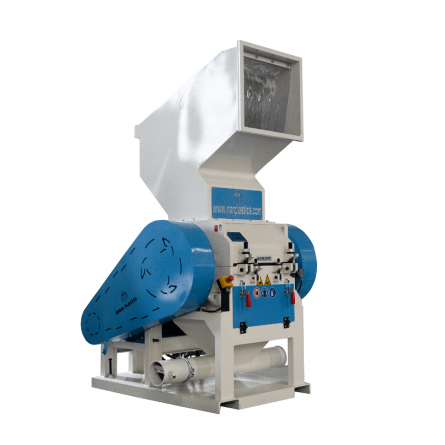

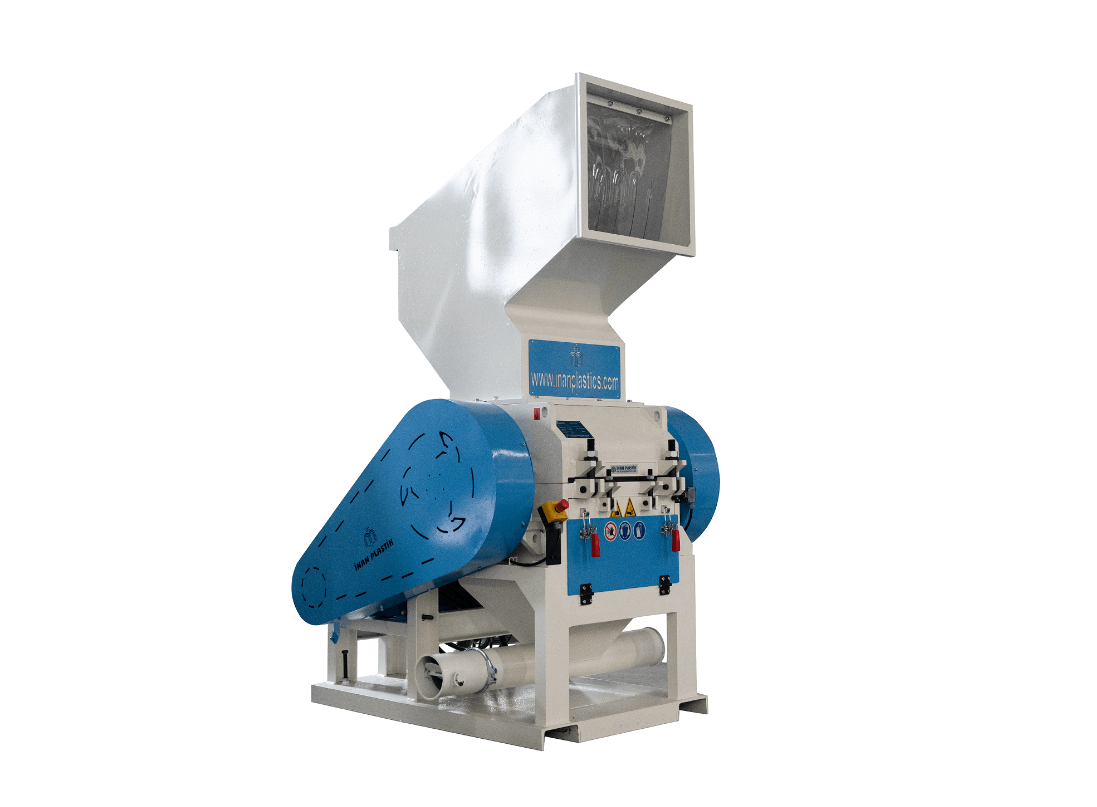

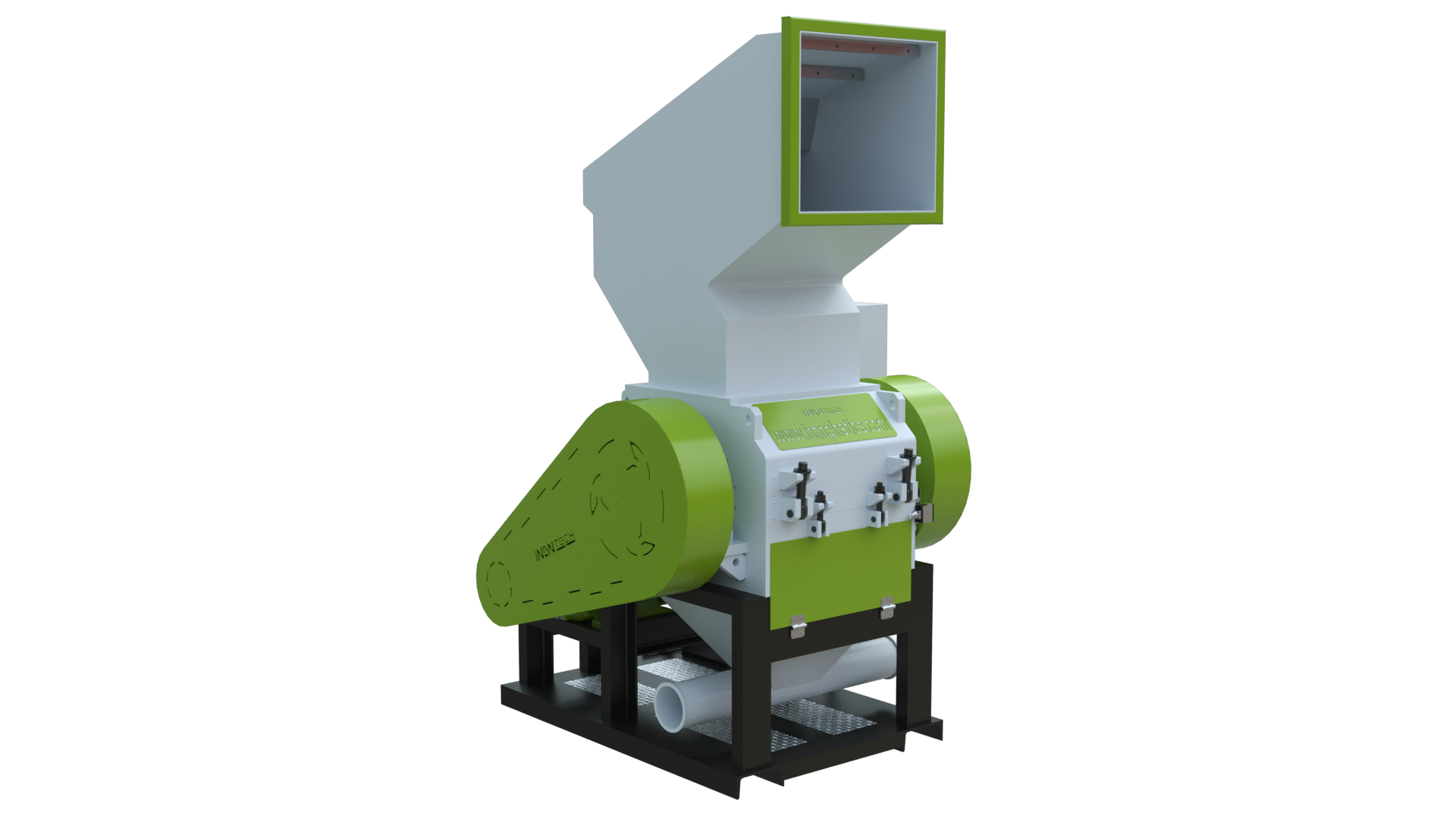

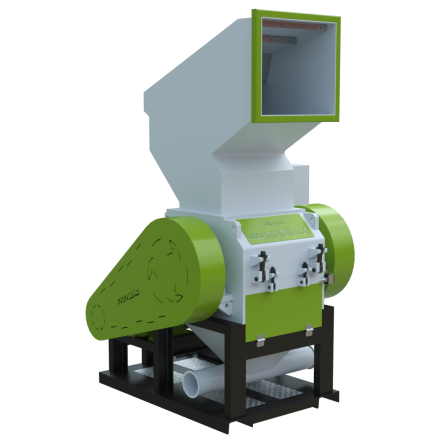

IPGR 42/60-xx

Technical Specifications

Rotor Dimensions	420×600 mm
Motor Power	22 kW
Capacity	150-500* kg/hour
Number of Fixed Blades	4 pieces
Number of Rotor Blades	6 pieces
Sieve Hole Diameter	8mm ( May change as per request )

Application

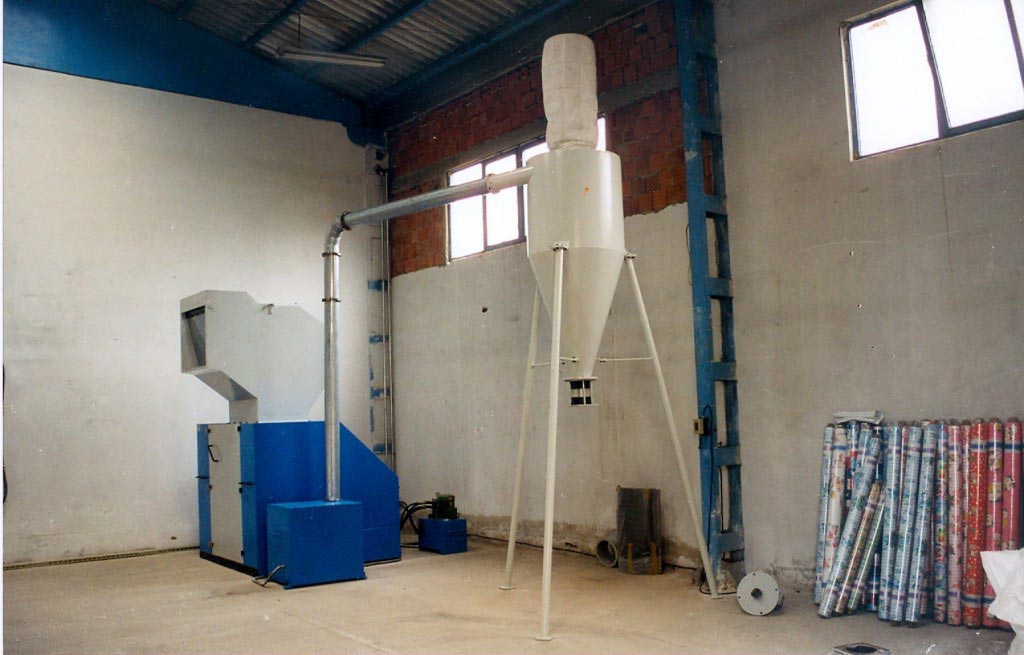

With strong rotor and bearing designs, suitable for use in recycling of wastes of all plastic and rubber products such as sheets, films, pipes and profiles, upsetting materials (cans, barrels, fuel tanks, etc.) as extrusion waste (wedge) in the recycling industry, as central wet or dry crushing.

Provides flexibility and cost-effectiveness in specific applications, with the ability to determine the exact model specific to the requirement among the optional components.

With the flow channels on the rotor side walls, accumulation and jamming of the crushed material in these areas are prevented. In this way, there is no need for rotor-blade geometric placement solutions and blade assembly and adjustment are enabled

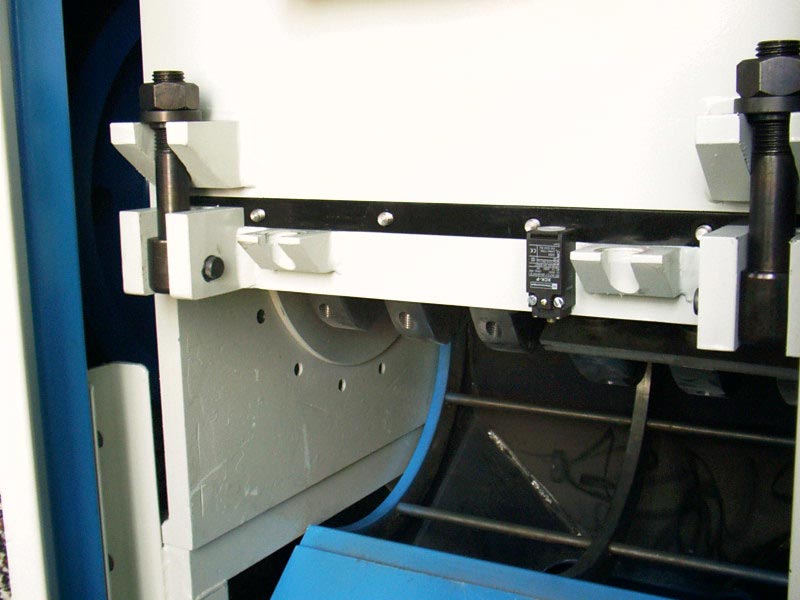

Thanks to the adjustable rotor and fixed blades, the cutting range can be brought to the ideal distance easily and in a short time after each grinding.
Reversible sieve increases service life.
It has design features to keep maintenance costs low.
