Blade Material DIN 1.2379
Motor Power 37-45 kW
Capacity 300-800* kg/hour
Rotor Diameter 450mm
Rotor Length 800mm
Sieve Hole Diameter 10 mm (may change upon request)

With strong rotor and bearing designs, suitable for use in recycling of wastes of all plastic and rubber products such as sheets, films, pipes and profiles, upsetting materials (cans, barrels, fuel tanks, etc.) as extrusion waste (wedge) in the recycling industry, as central wet or dry crushing.

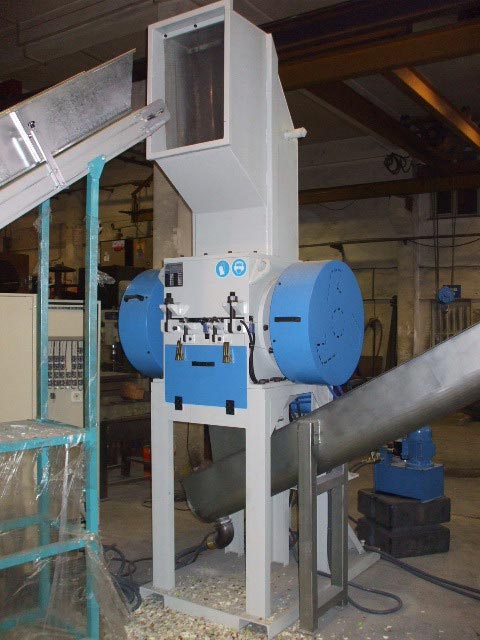

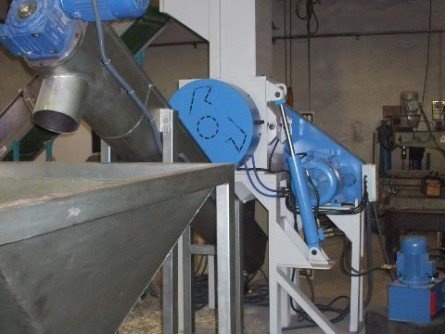

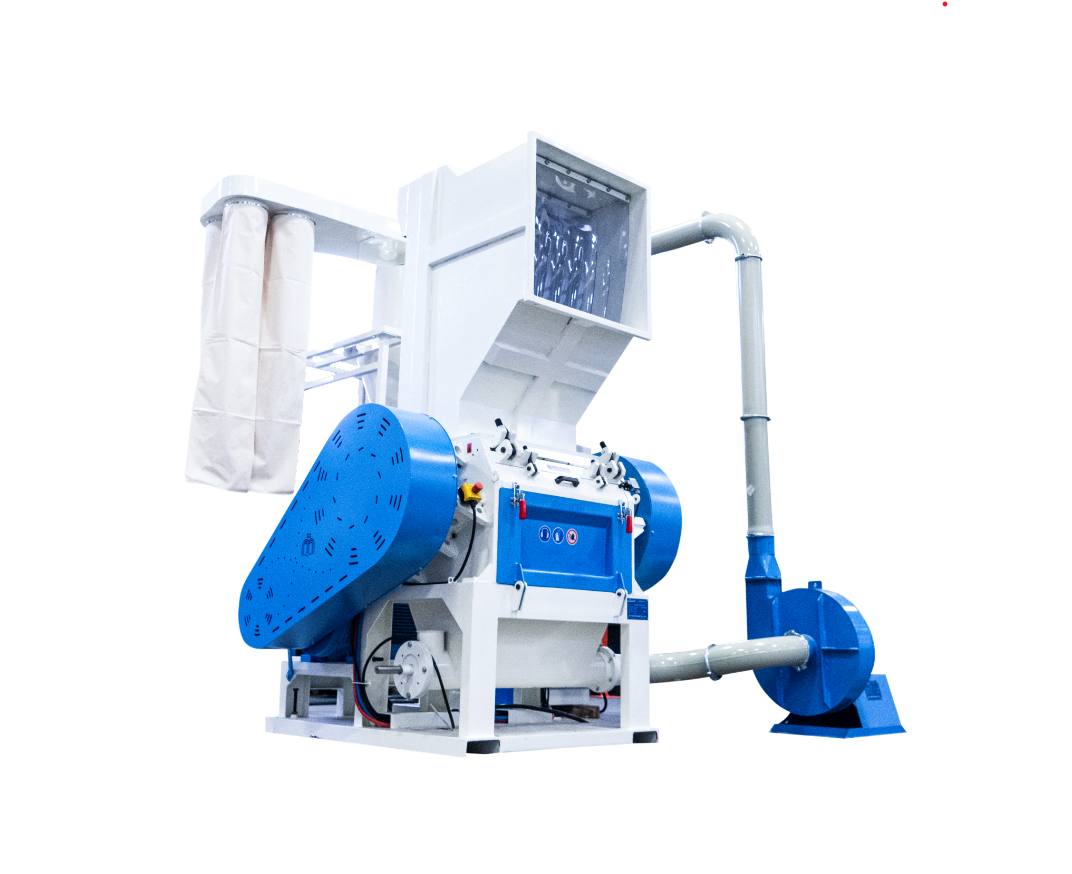

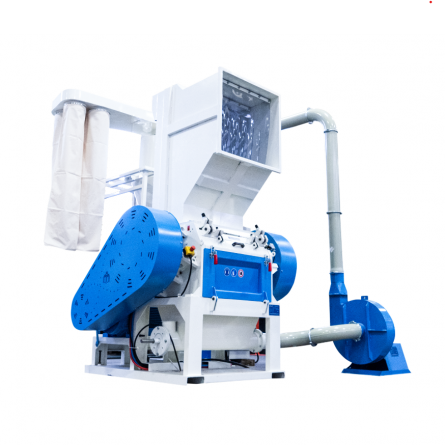

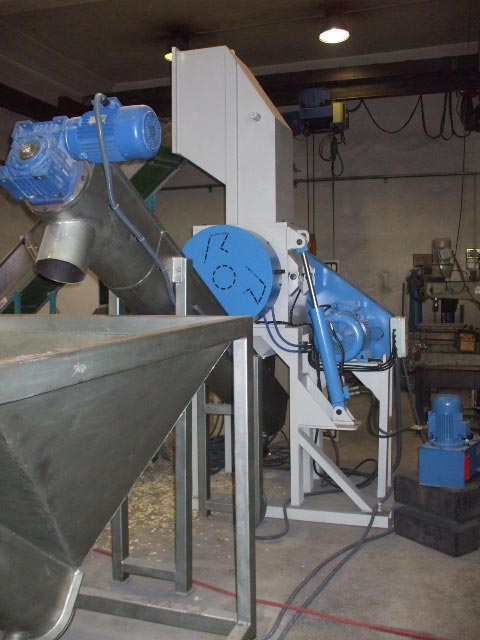

Thanks to the optional components such as the ability to work as wet crushing with the feature of dewatering helix discharge as well as standard fan/cyclone discharge, integrated sound insulation, hydraulic folding hopper and upper body group, dust separator, stepped rotor blades, in-line or off-line use with the addition of sheet puller and, feeding conveyor, it provides flexibility and cost-effectiveness in specific applications with the ability to determine the exact model specific to the requirement.

  • With the flow channels on the rotor side walls, accumulation and jamming of the crushed material in these areas are prevented with the centrifugal force. In this way, there is no need for rotor-blade geometric placement solutions and blade assembly and adjustment are enabled
  • Thanks to the adjustable rotor and fixed blades, the cutting range can be brought to the ideal distance easily and in a short time after each grinding.
  • Reversible sieve increases service life.
  • It has design features to keep maintenance costs low.
