Rotor Diameter 370 mm
Rotor Length 1300 mm
Product inlet dimensions 1305 x 1470 mm
Number of Blades 66 (40x40 mm)
Rotor Speed 130 rpm
Sieve Hole Diameter 50 mm
Motor Power 75Kw
Operating Voltage 400 V, 3 phase
Frequency 50 Hz - 60 Hz
Protection Class IP55-65
Machine Dimensions 3070x2630x1500 mm.
Machine Weight 5600 kg
Capacity 800-1000 kg / h
  • Thanks to precisely tuned blades and rotor profile:
  • efficiency at maximum capacity,
  • homogeneous chip structure and size,
  • low level of sieve wear,
  • not heating the rotor and crushed material
  • Smooth operation with a solid steel rotor
  • Long blade life and easy replacement thanks to the V-shaped blade slots.
  • Low cost thanks to the ability to use all four sides of the concave blades.t.
  • Homogeneous chip structure and highest capacity thanks to the special profiled fixed blade
  • Fully gas metal arc welded manufacturing from heavy-duty steel and sheets.
  • The material to be shredded is fed to the rotor by a PLC controlled hydraulic pusher.

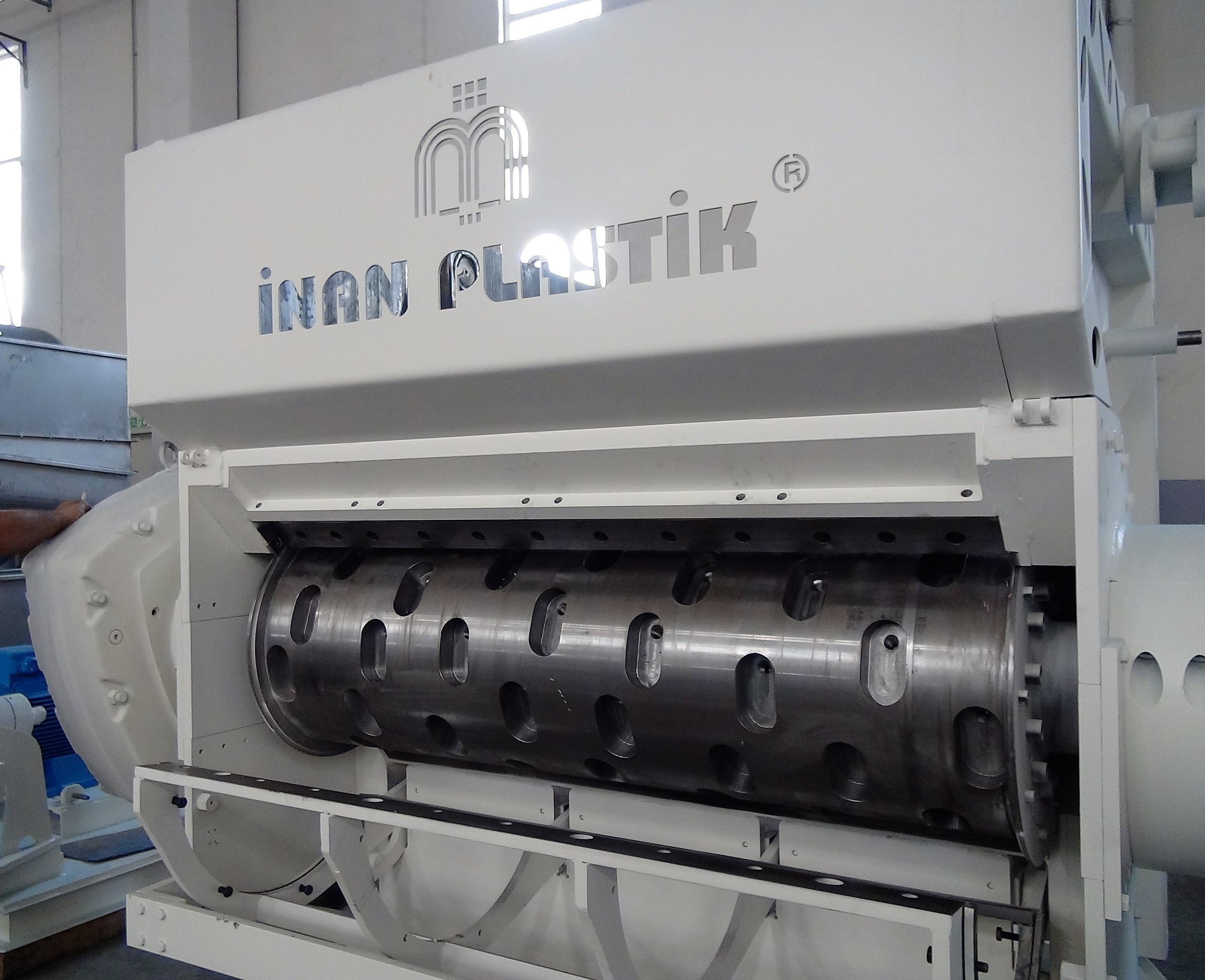

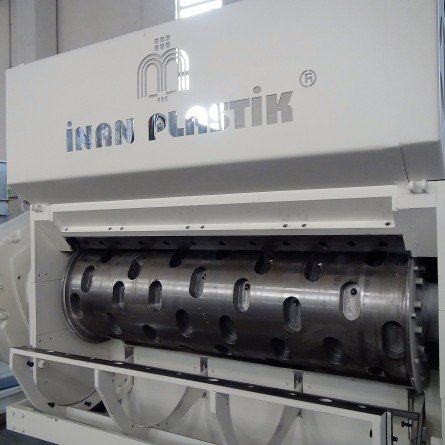

  • The rotor, which has a special profile, is made of solid high-quality steel.
  • Inclined rotor driving system with special reducer and inverter.
  • Double-roller, heavy-duty type bearings easily absorb crushing shocks.
  • The bushings are fully sealed from the chamber in precisely manufactured solid steel bearings.
  • Power is transmitted to the rotor via B type V belts within the safety shield.
  • Gas metal arc welded strong steel chassis mounted on vibration and shock absorbing feet.
