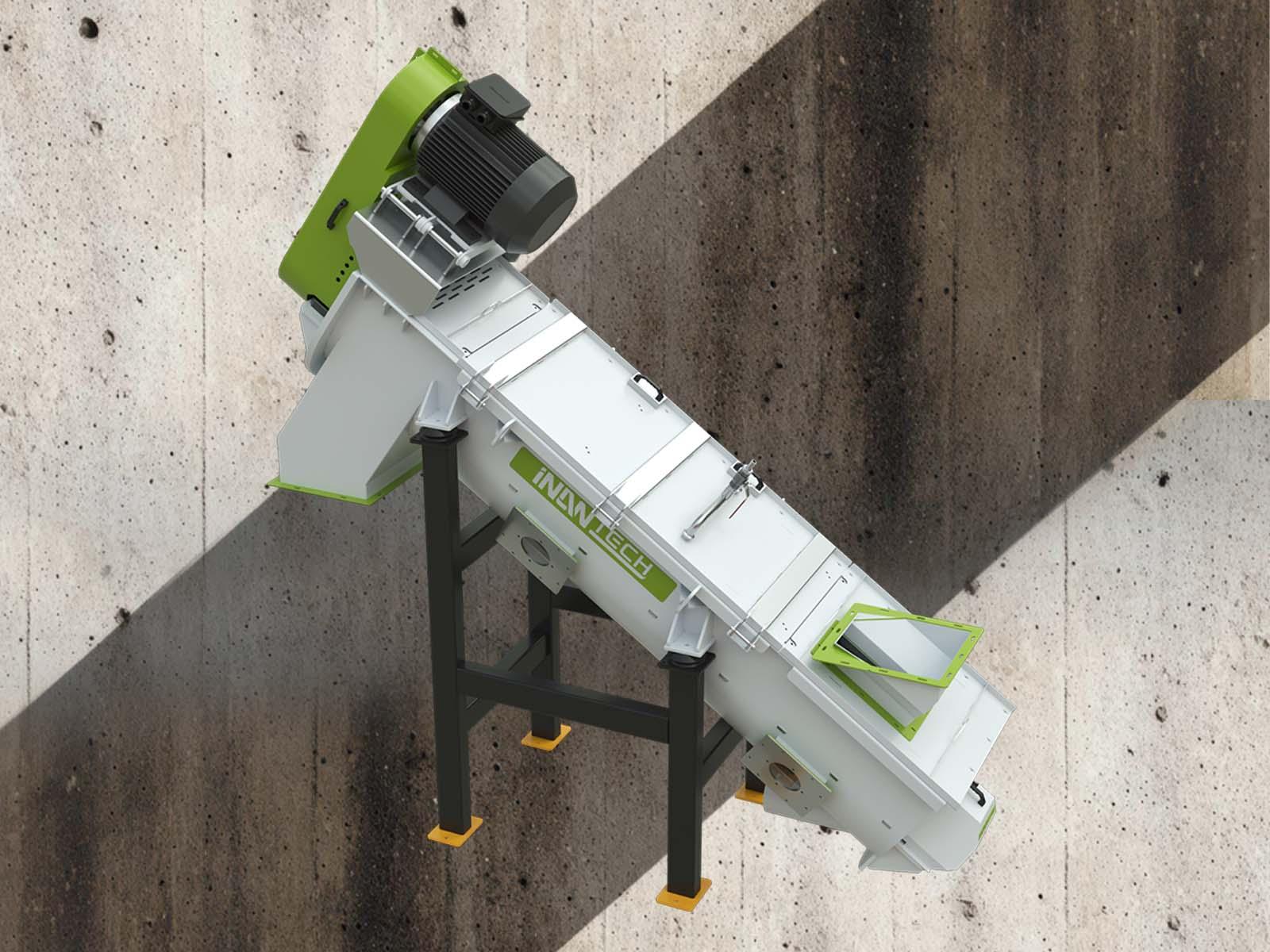

35D Friction Washer

Using a high-speed rotor, it scrubs flakes to remove surface dirt, labels and adhesives while removing water at the same time.

35D Friction Washer
Technical Data

Features

Rotor Diameter
Ø500 mm
Total Power
22 kW
Approximate Weight
~3,5-4 t

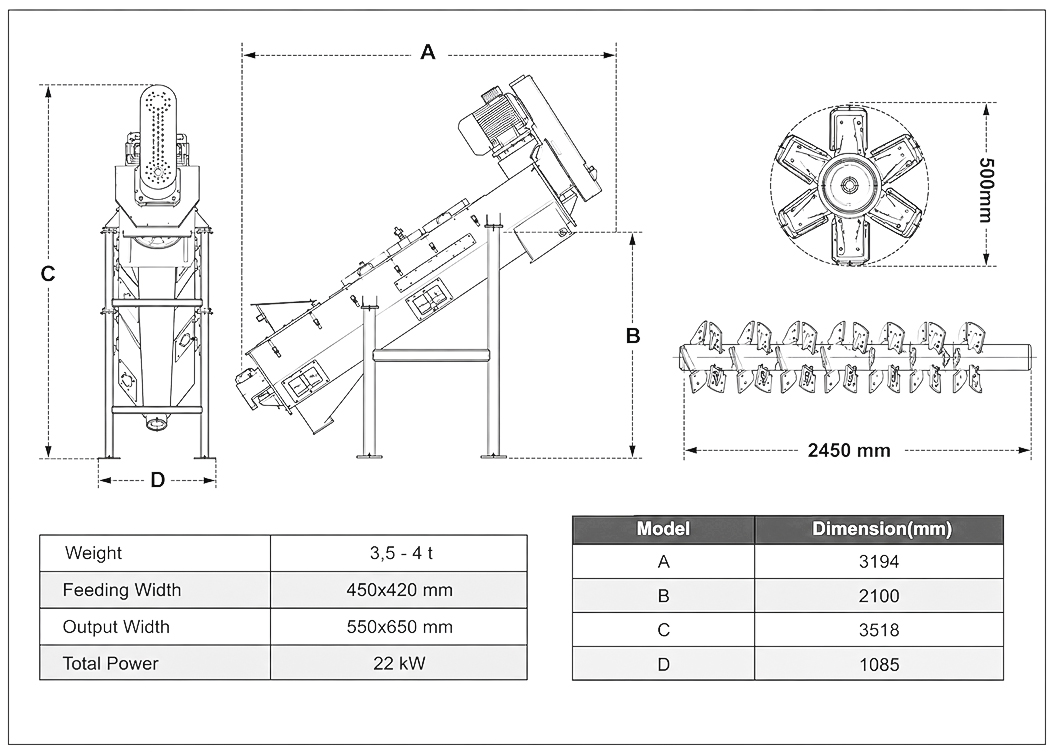

35D Friction Washer technical drawing

What is the 35D Friction Washer and what is it used for?

The 35D Friction Washer is a vertically/inclined-mounted friction washer. Using a high-speed rotor, it scrubs flakes against each other and against the body to remove surface dirt, labels and adhesives while removing water at the same time. It delivers intensive washing and dewatering in a compact footprint.

Applications

  • PET bottle and hot washing lines
  • Film and rigid plastic washing
  • Removal of label and adhesive residue
  • Pre-dewatering after washing

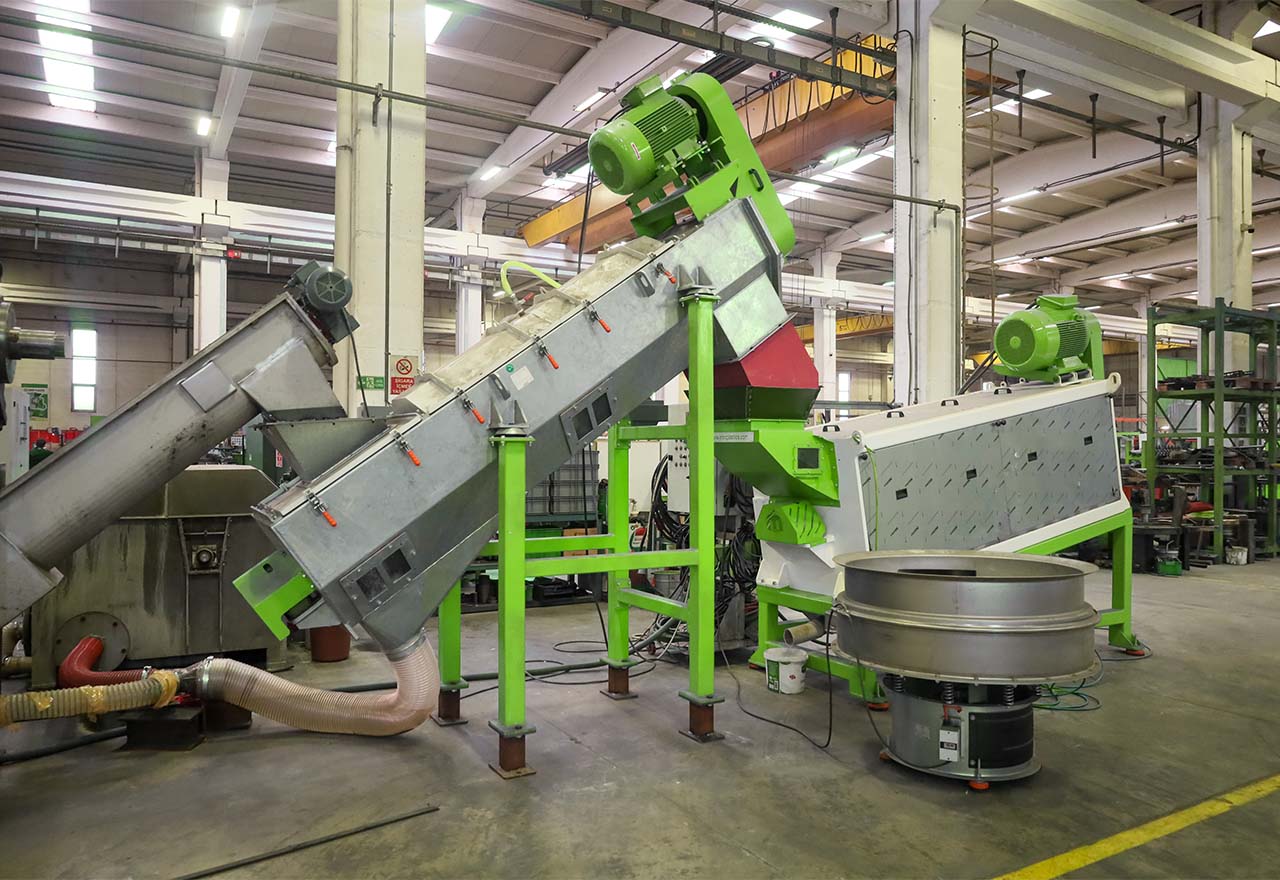

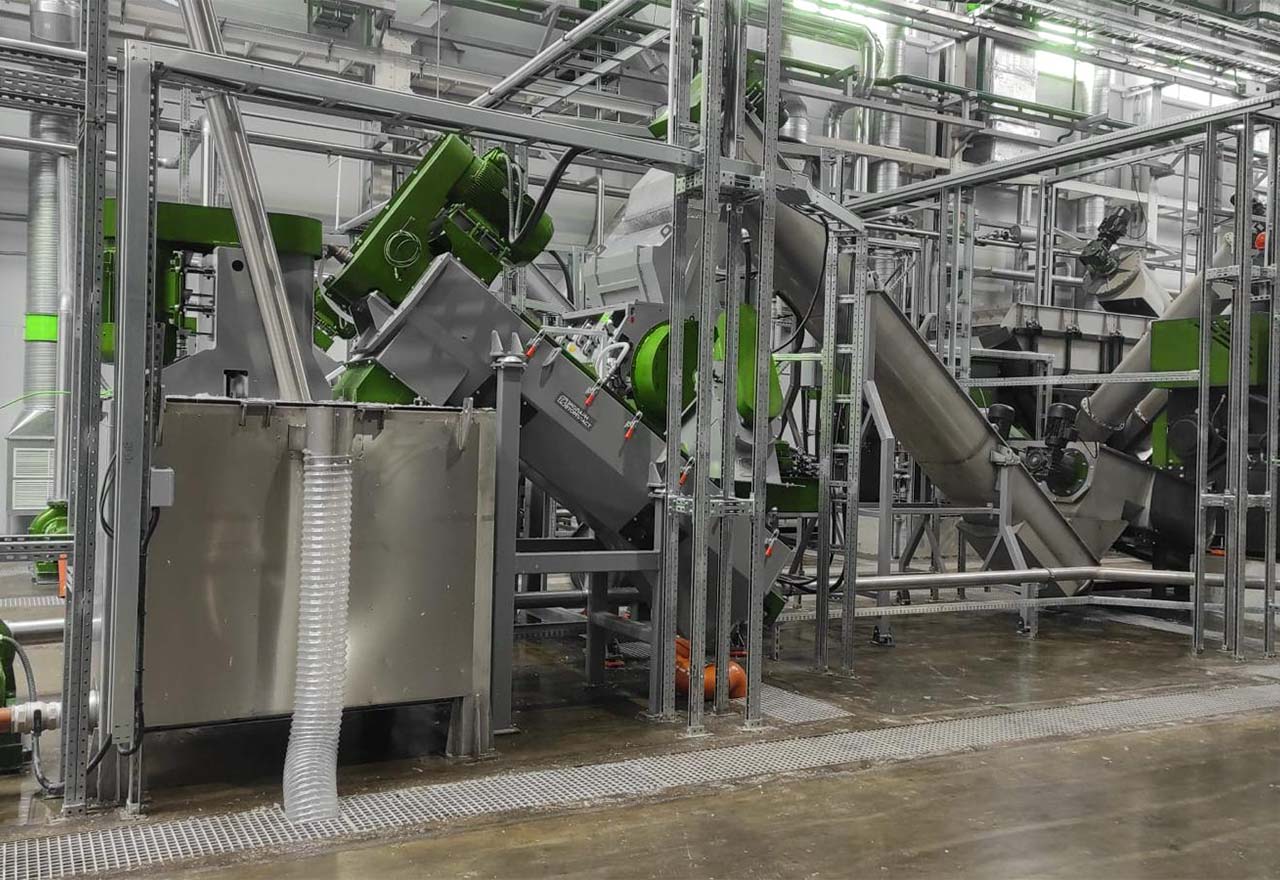

From the Field

Images

35D Friction Washer-1
35D Friction Washer-1

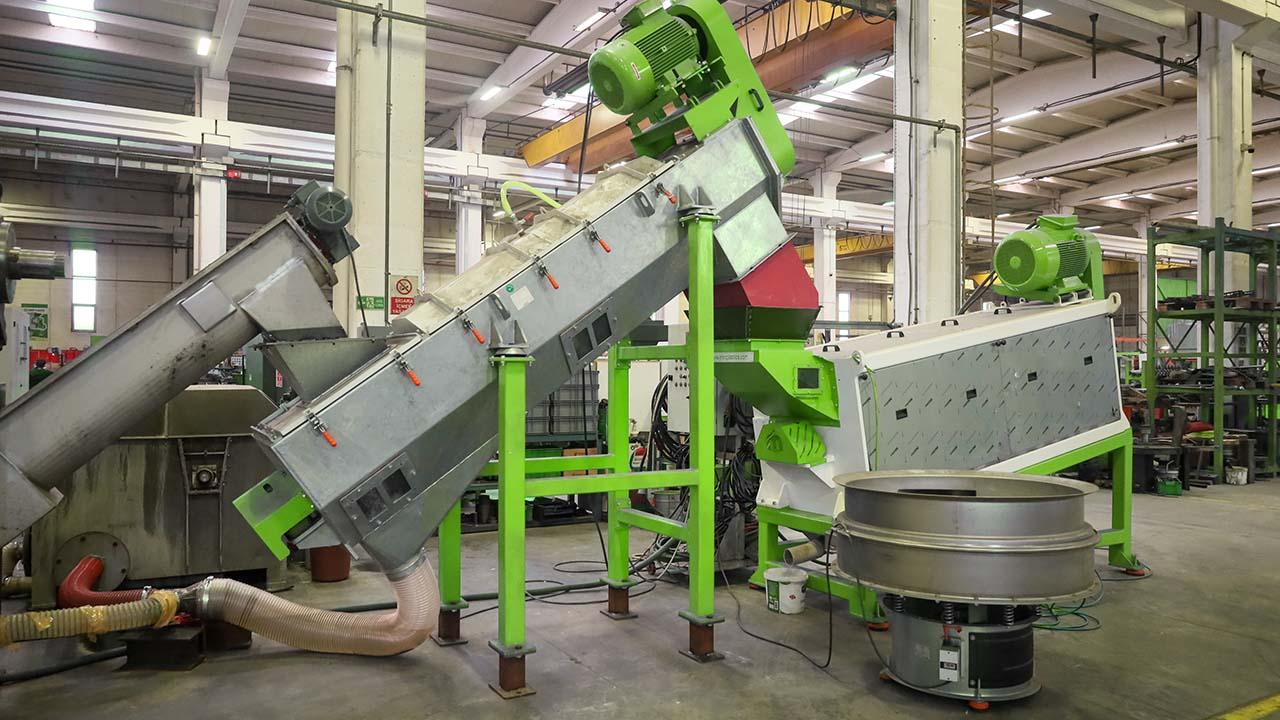

35D Friction Washer-2
35D Friction Washer-2

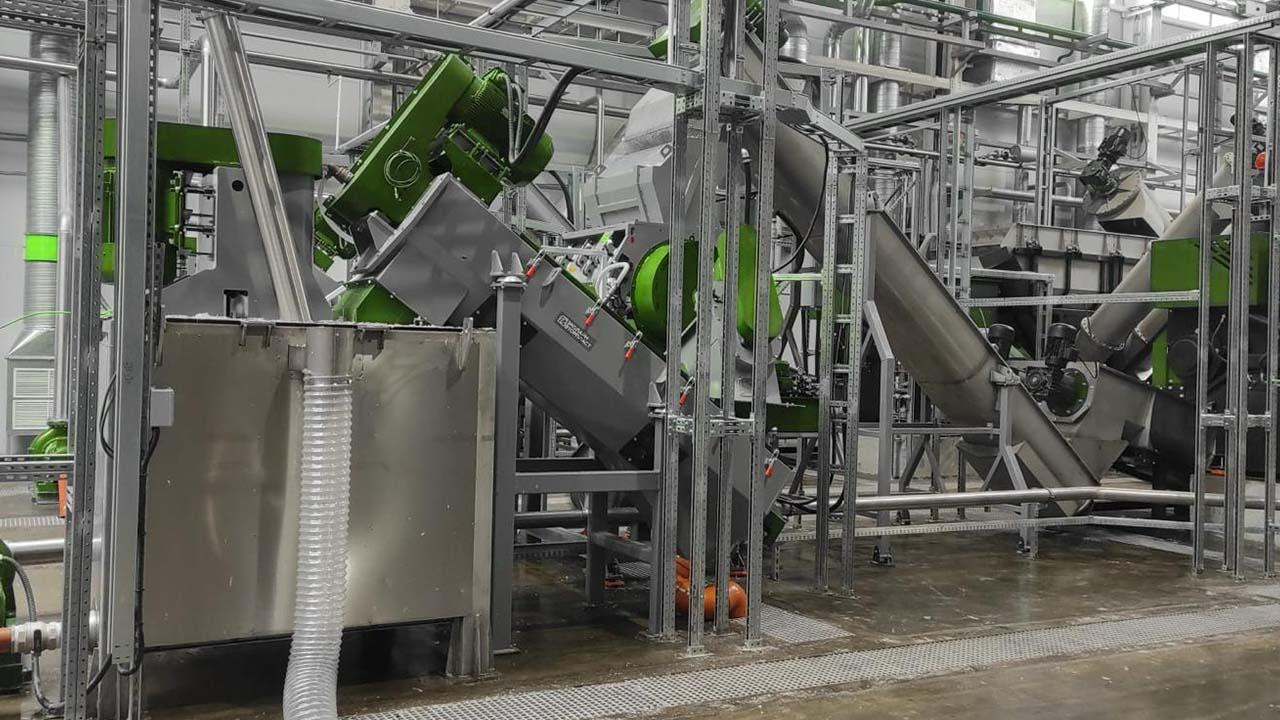

35D Friction Washer-3
35D Friction Washer-3
Frequently Asked Questions

About this page

What does the 35D Friction Washer do?
Using a high-speed rotor, it scrubs flakes to remove surface dirt, labels and adhesives and removes water; it serves as both an intensive wash and a pre-drying step.
What is the difference between the Horizontal and 35D friction washers?
Both perform friction washing and dewatering; they differ in layout (horizontal / vertical-inclined) and flow direction. We can determine the right type for your line together.
Do you provide installation, spare parts and service?
Yes. We provide engineering, installation, commissioning, operator training, spare parts and ongoing technical service.
