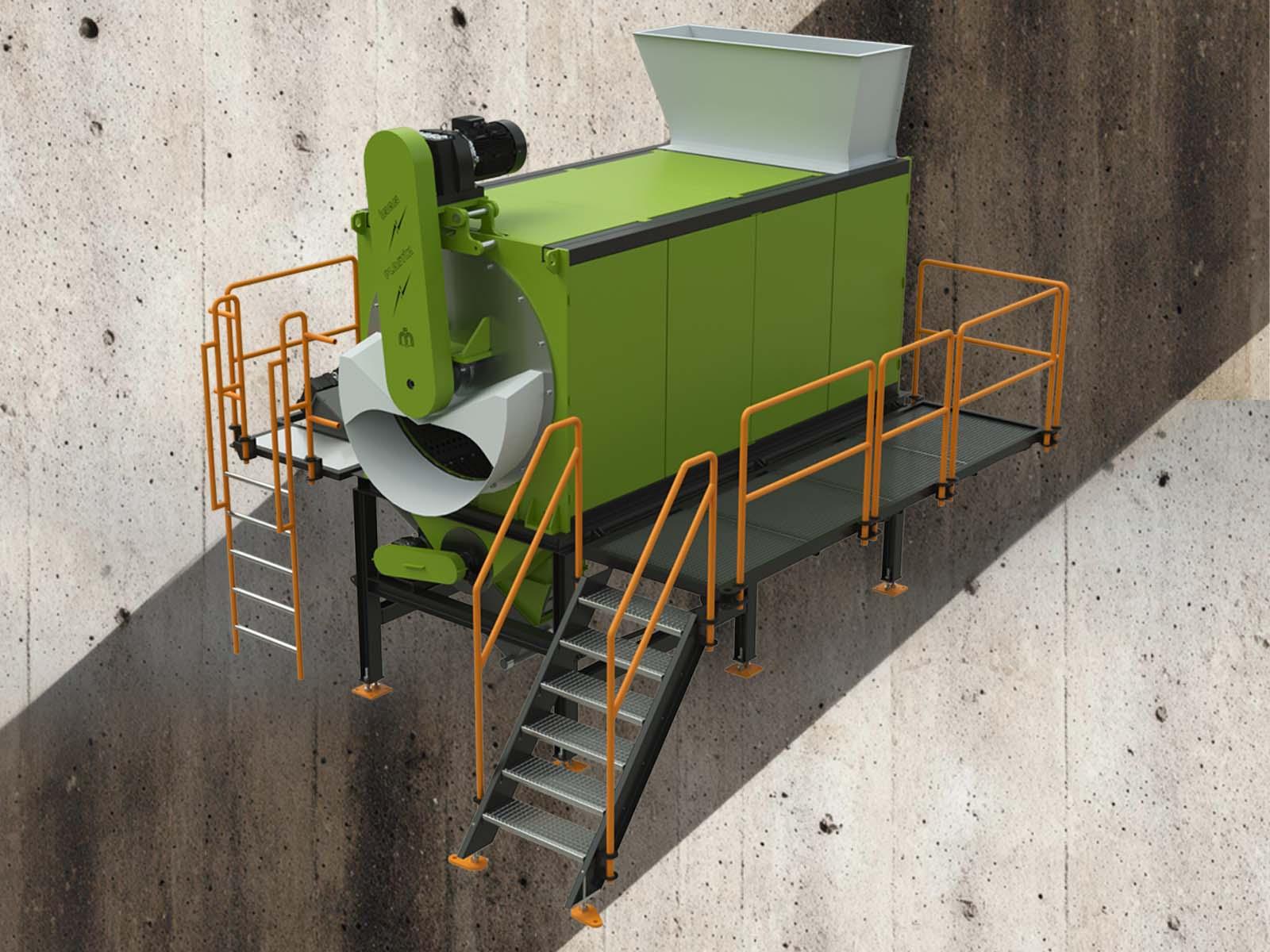

Pre-Washing Unit

Roughly cleans crushed plastic through pre-washing; separates coarse dirt such as dust, soil and sand, and light foreign matter, from the water.

Pre-Washing Unit
Technical Data

Features

Rotor Diameter
Ø1400 mm
Total Power
29 kW
Approximate Weight
~10 t

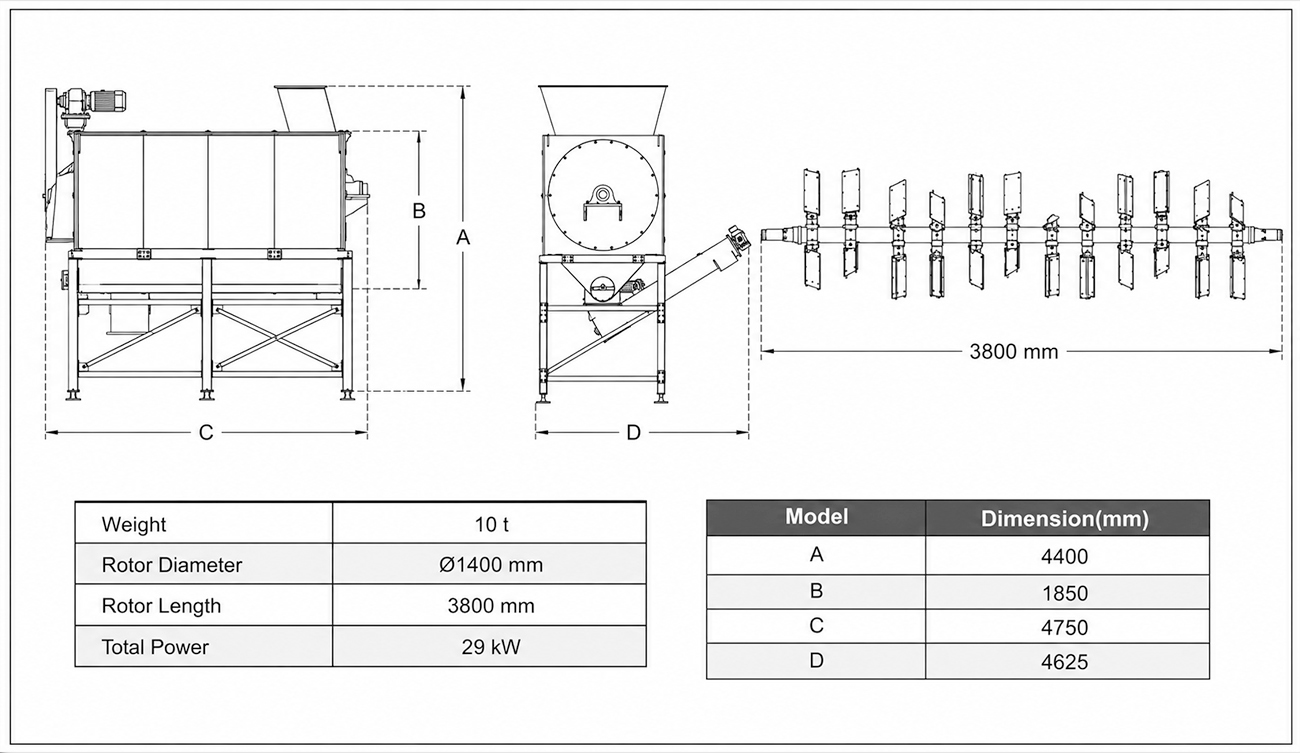

Pre-Washing Unit technical drawing

What is the Pre-Washing Unit and what is it used for?

The pre-washing unit washes the flakes after crushing with water and mechanical action, removing surface dust, soil, sand and loose dirt. Heavy dirt settles to the bottom, while light foreign matter is floated off and removed. It is the first washing step that boosts the efficiency of hot washing and the subsequent stages.

Advantages

  • Early removal of coarse dirt, dust and soil
  • Reduces the load on the subsequent washing stages
  • Efficient water use
  • Robust, continuously running construction

Applications

  • PET, HDPE, PP and film washing lines
  • Pre-cleaning after crushing
  • Inputs heavy in soil and sand

Position in the line

Pre-washing comes after size reduction (crushing / shredding) and before hot washing. Removing coarse dirt, stones, soil and heavy contaminants at this stage reduces the load, water and chemical consumption of the subsequent washing steps.

From the Field

Images

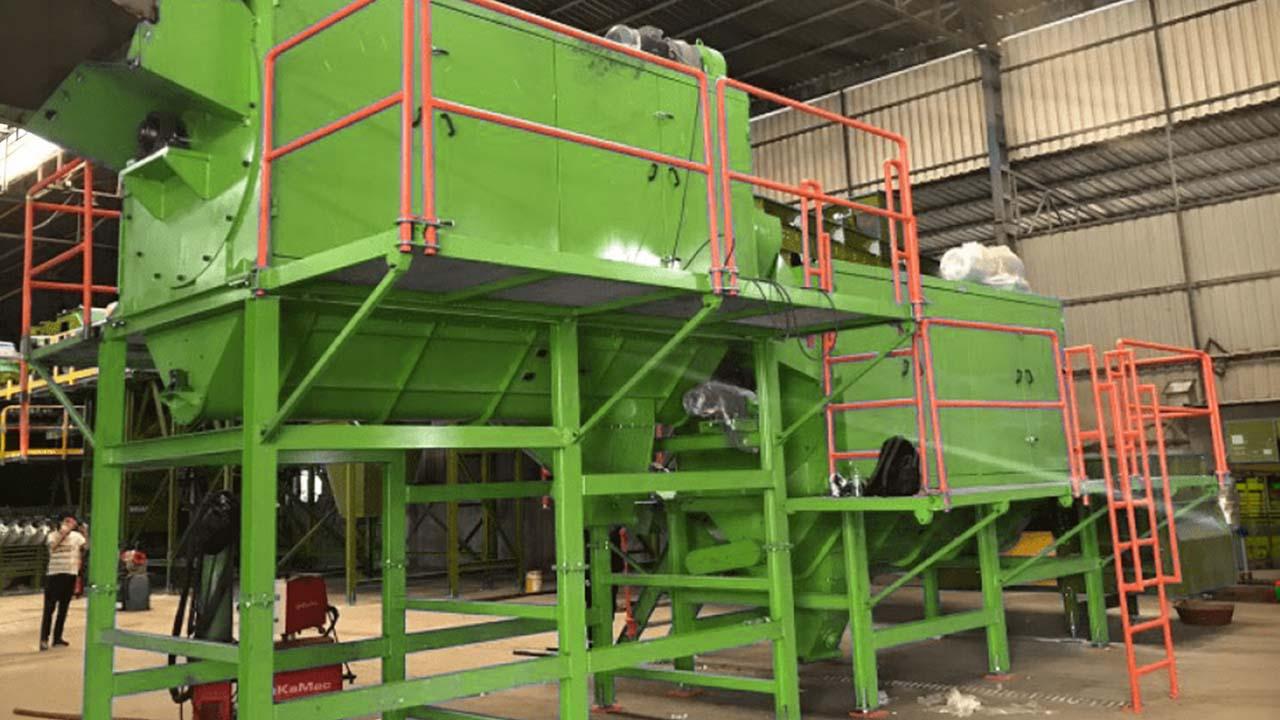

Pre-Washing-1
Pre-Washing-1

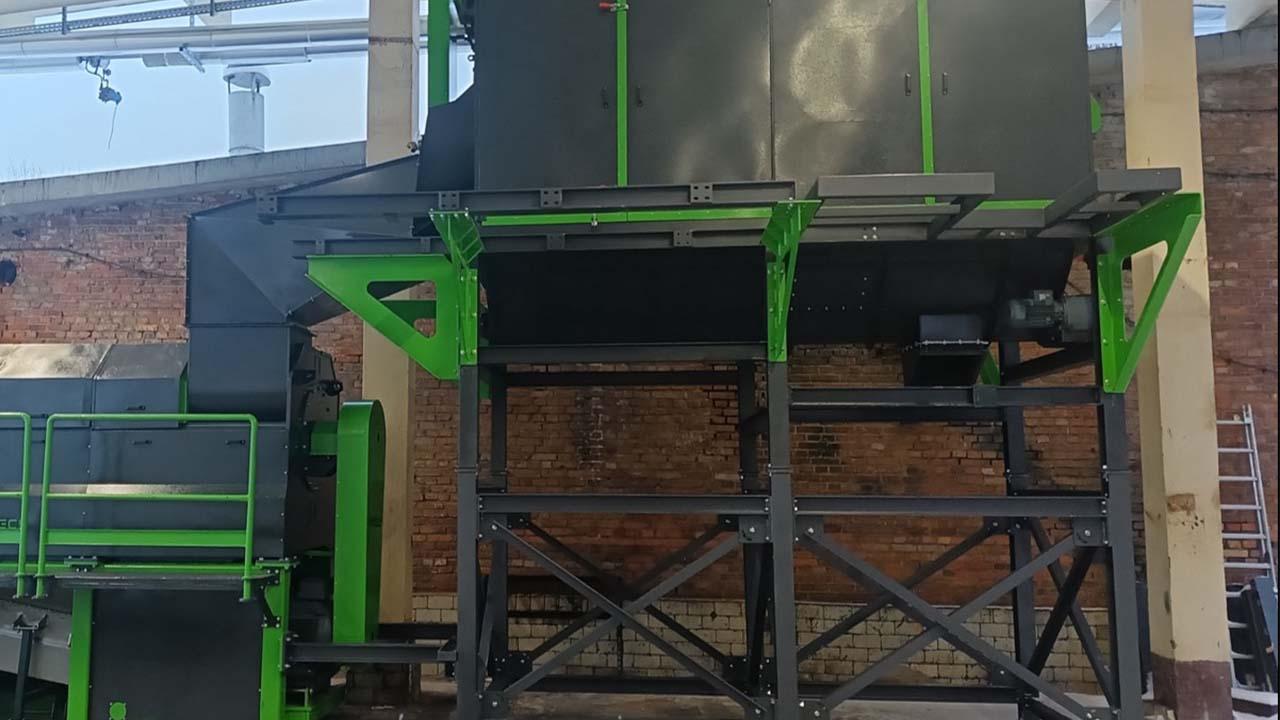

Pre-Washing-2
Pre-Washing-2

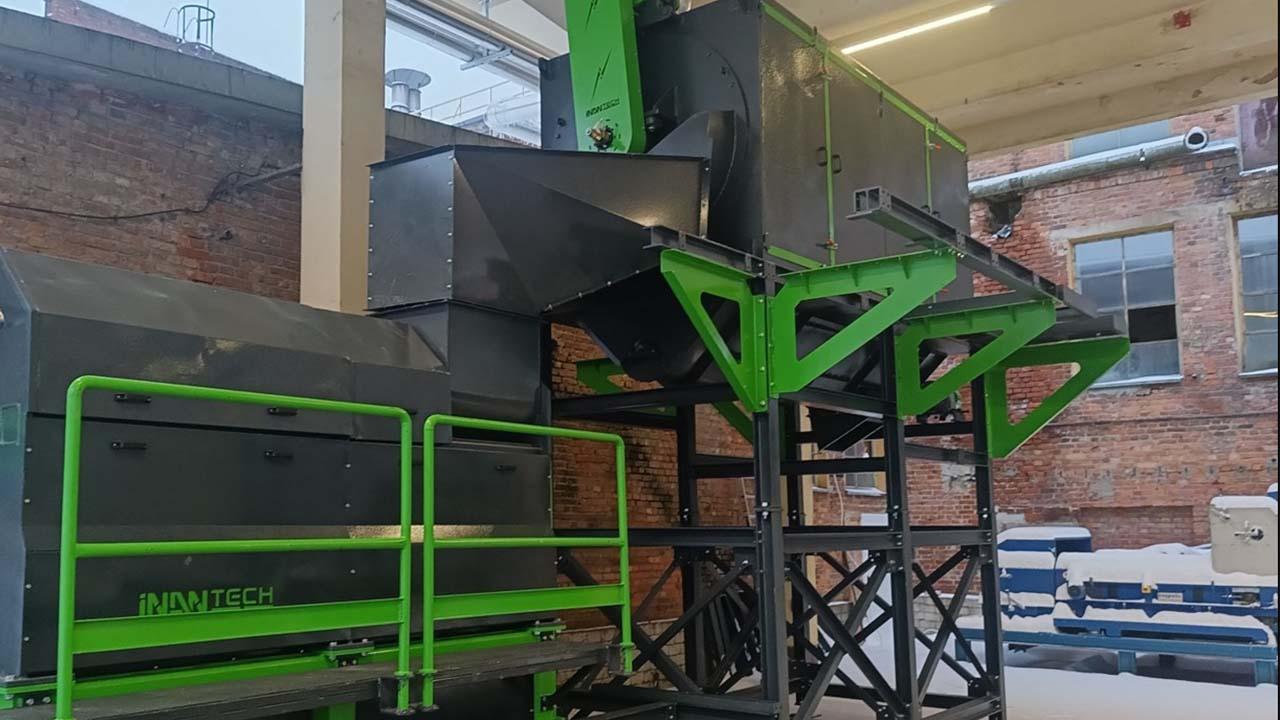

Pre-Washing-3
Pre-Washing-3
Frequently Asked Questions

About this page

What is the Pre-Washing Unit used for?
Roughly cleans crushed plastic through pre-washing; separates coarse dirt such as dust, soil and sand, and light foreign matter, from the water.
Is pre-washing sufficient on its own?
It is generally the first stage of the line; depending on the degree of contamination, it is complemented by hot washing, friction and rinsing stages.
Do you provide installation, spare parts and service?
Yes. We provide engineering, installation, commissioning, operator training, spare parts and ongoing technical service.
