Hot Washing Unit

Deeply cleans flakes by dissolving oil, adhesive and stubborn dirt with hot water and, where needed, chemical support. For PET and PE.

Hot Washing Unit
Technical Data

Features

Dimensions (W×D×H)
~2500 × 2500 × 3160 mm
Total Power
26 kW
Approximate Weight
~3,5 t

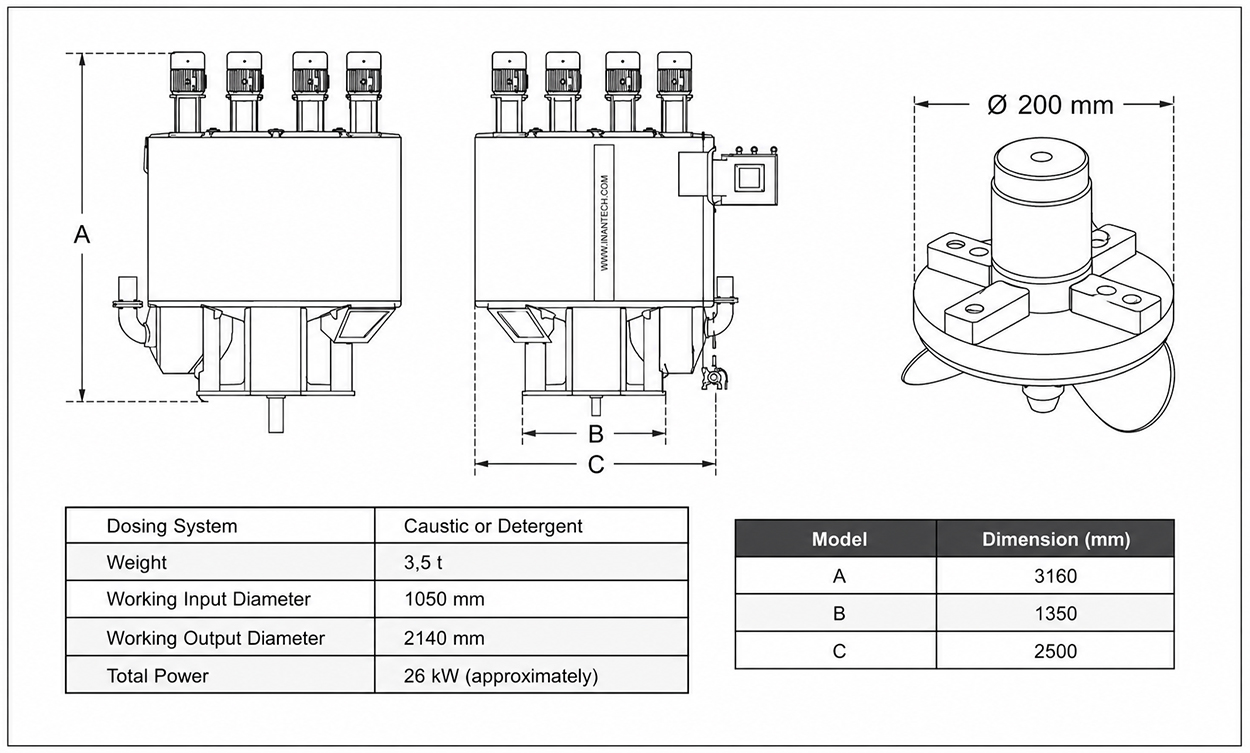

Hot Washing Unit technical drawing

What is the Hot Washing Unit and what is it used for?

The hot washing unit washes the flakes with heated water (and, where needed, detergent/caustic) to dissolve surface oil, adhesive, label glue and organic dirt. It delivers high cleaning quality particularly in the recycling of PET bottles and contaminated PE/PP.

Advantages

  • Effective dissolution of oil, glue and organic dirt
  • High cleaning quality
  • Suitable for PET and PE/PP
  • Temperature and time control

Applications

  • PET bottle recycling lines
  • Washing of contaminated PE/PP
  • Label glue and oil removal

How does it work?

The system consists of washing chambers positioned inside a tank filled with caustic soda solution. Each washing chamber rotates around its own axis, enabling the material to fill and empty in a controlled manner; independently operating mixers support the homogeneous distribution of the solution and effective contact. Since the material is exposed to both mechanical and chemical action, label adhesives, organic dirt and surface residues are thoroughly broken down, raising the quality of the raw material before extrusion. High cleaning performance is achieved with plastics such as PET, HDPE, PVC and PP.

Automation and control

Thanks to digital conductivity measurement devices and temperature sensors, process parameters are kept under continuous control. Integrated automation optimizes temperature and chemical concentration levels, both increasing cleaning performance and balancing energy consumption. Operator intervention is minimized and process continuity is maintained. With its heavy-duty construction, the unit is designed for long-term, uninterrupted operation in plastic washing lines.

From the Field

Images

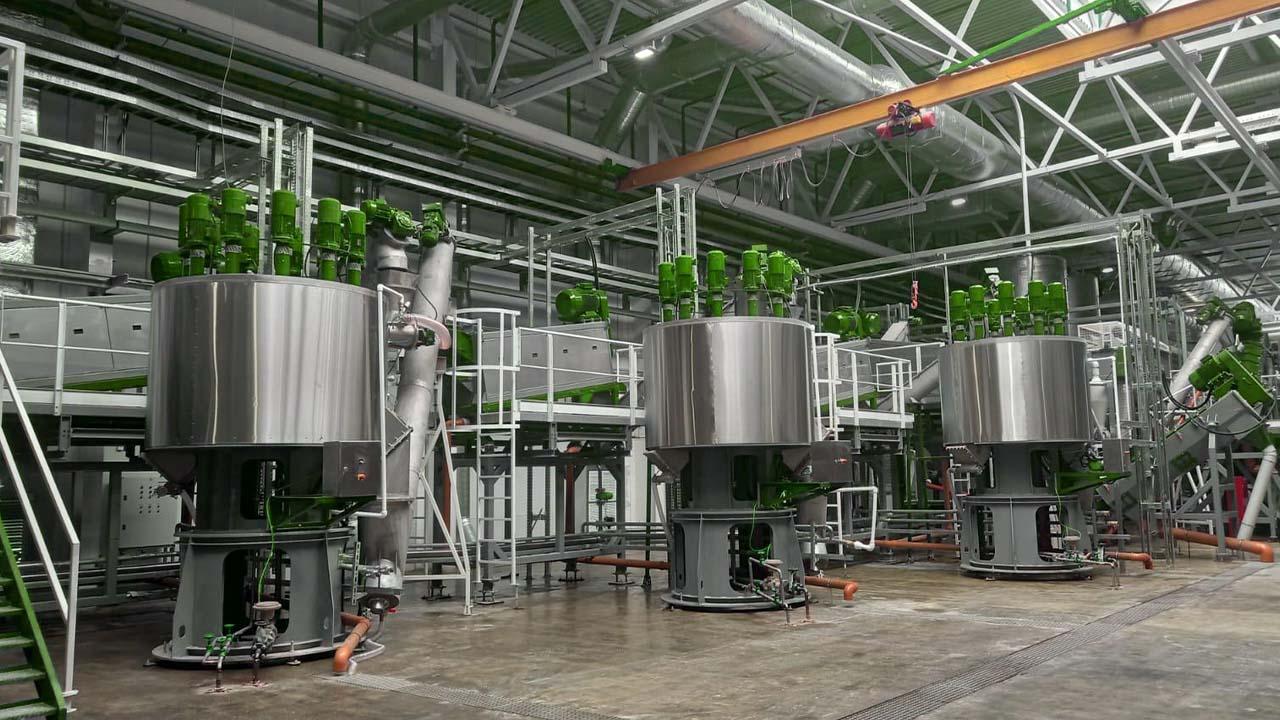

Hot Washing-1
Hot Washing-1

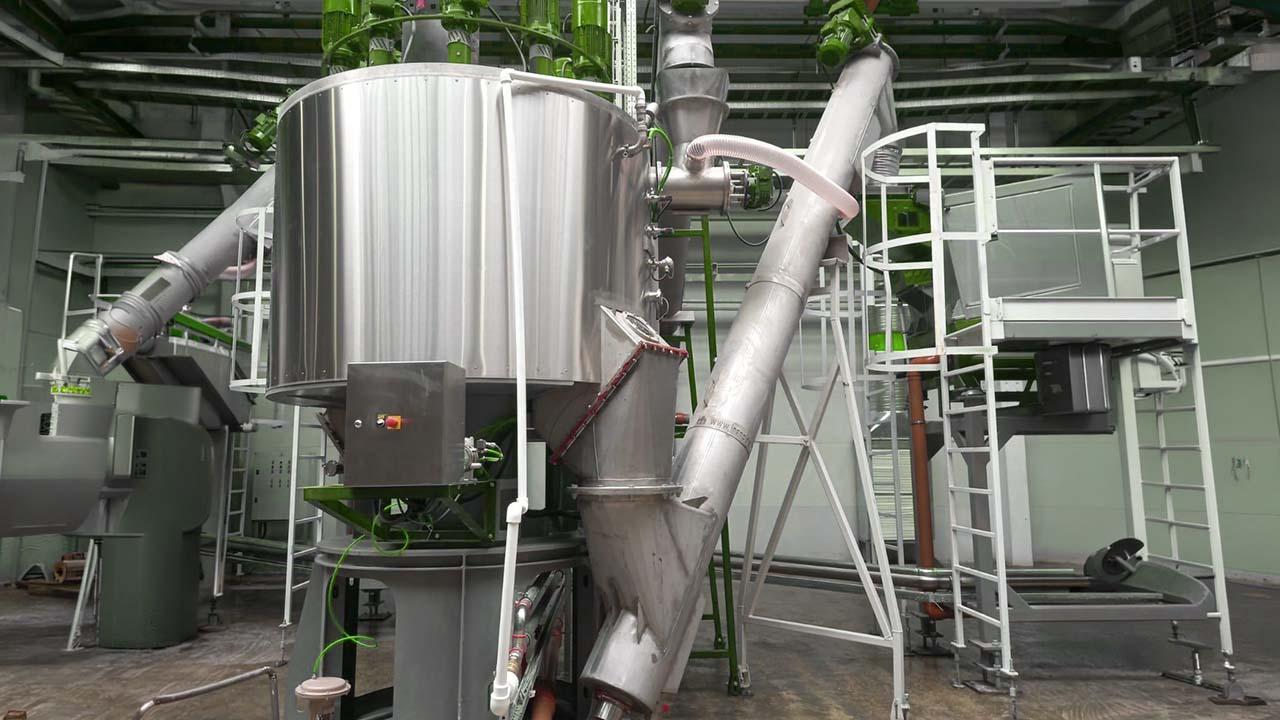

Hot Washing-2
Hot Washing-2

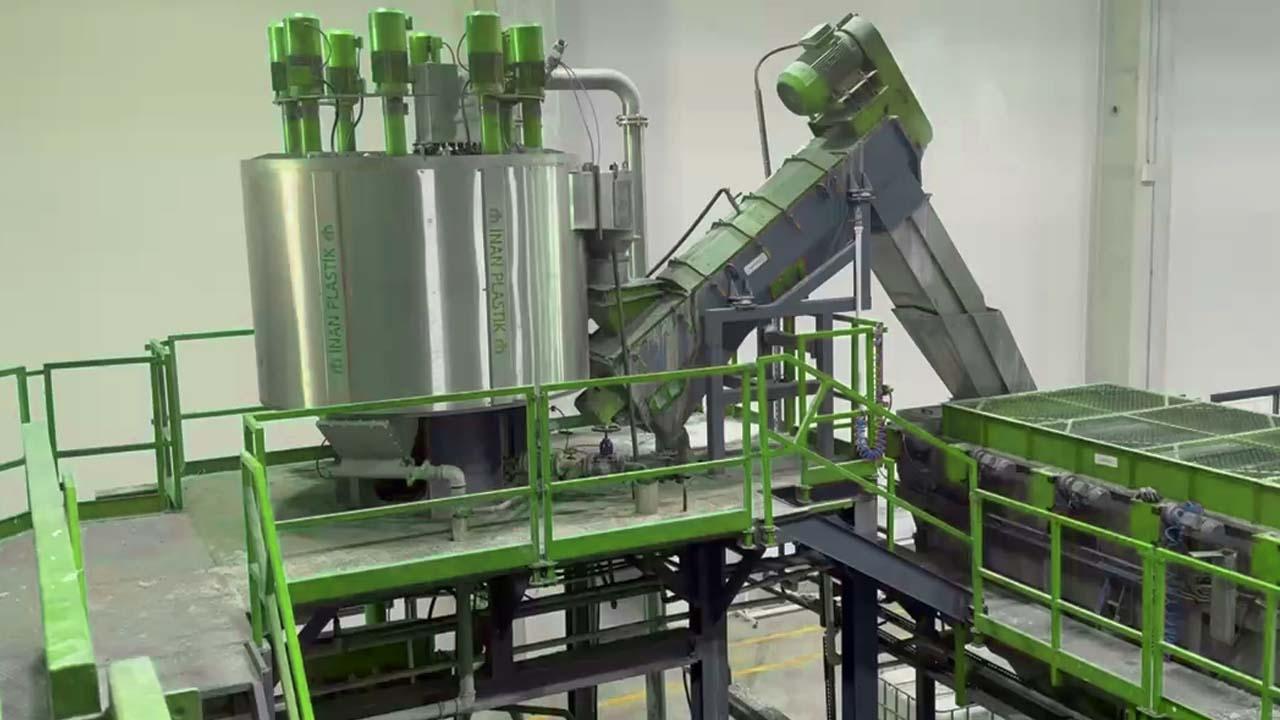

Hot Washing-3
Hot Washing-3
Video

In action

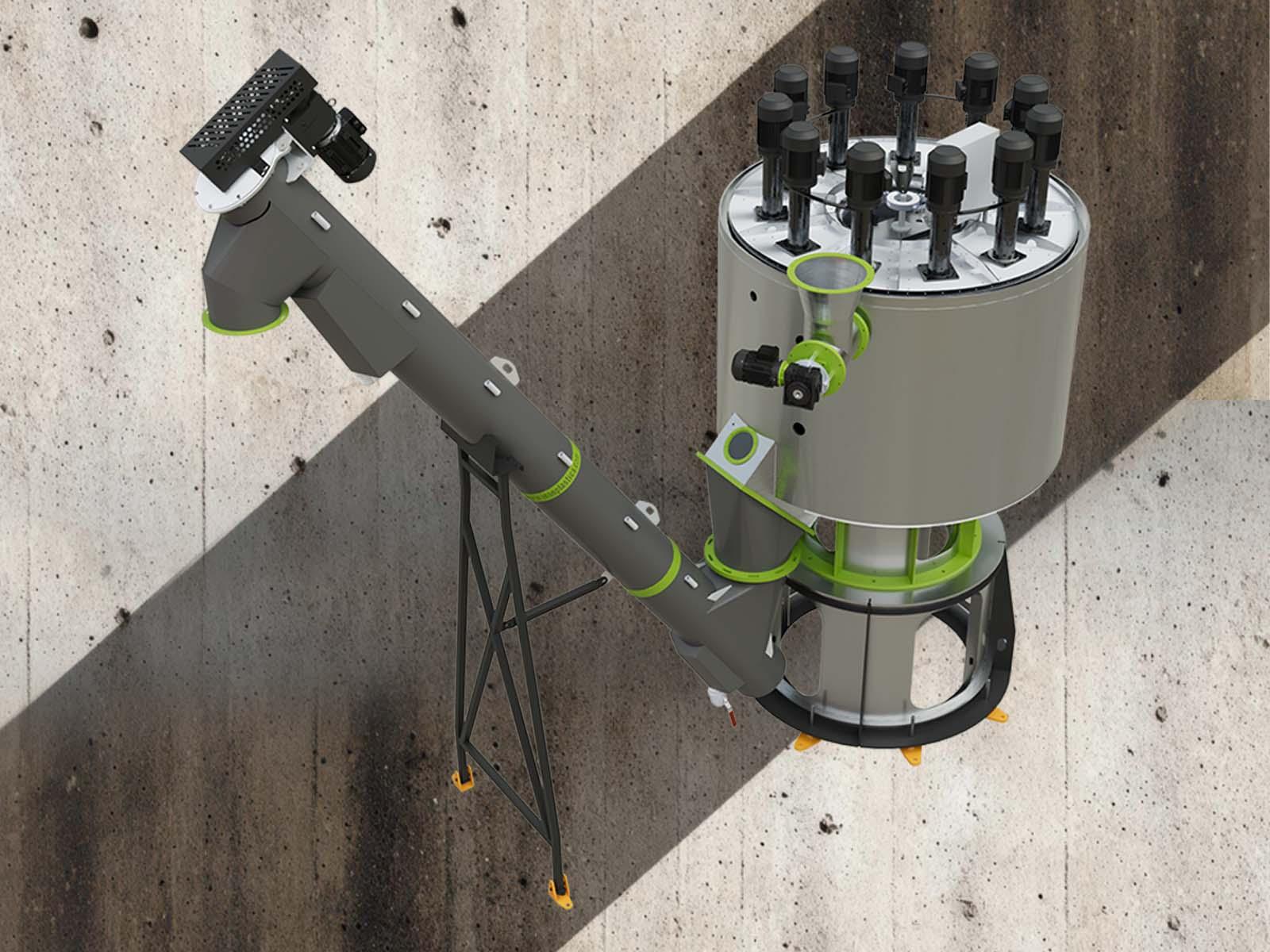

Hot Washing Unit
Frequently Asked Questions

About this page

What is the Hot Washing Unit used for?
Deeply cleans flakes by dissolving oil, adhesive and stubborn dirt with hot water and, where needed, chemical support. For PET and PE.
Are chemicals used in hot washing?
Detergent/caustic dosing can be applied as needed; it is determined according to the material and the degree of contamination.
Do you provide installation, spare parts and service?
Yes. We provide engineering, installation, commissioning, operator training, spare parts and ongoing technical service.
