Mechanical Dryer

Mechanically removes the surface water from washed plastic flakes using a high-speed rotor and screen; it is the drying stage of the washing line.

Mechanical Dryer
Technical Data

Features

Rotor Diameter
Ø730 mm
Total Power
38,3 kW
Approximate Weight
~4 t
Mechanical Dryer technical drawing

What is a Mechanical Dryer and what is it used for?

The mechanical (centrifugal) dryer spins the washed flakes at high speed inside a vertical body, throwing the surface water out through the screen by centrifugal force. This brings the flakes to a moisture level suitable for pelletizing or subsequent processing.

Advantages

  • Effective water removal with a high-speed rotor
  • Low residual moisture content
  • Wear-protected, durable body
  • Continuous, high-capacity operation

Applications

  • Post-wash drying in PET, HDPE and PP washing lines
  • Dewatering of flakes and crushed material
  • Moisture reduction before pelletizing

Position in the line

Mechanical drying comes after the washing stages (hot washing, friction washing) and lowers the moisture content of the flakes by spinning off the surface water at high speed. It is positioned together with the screw press to mechanically remove the bulk of the water.

From the Field

Images

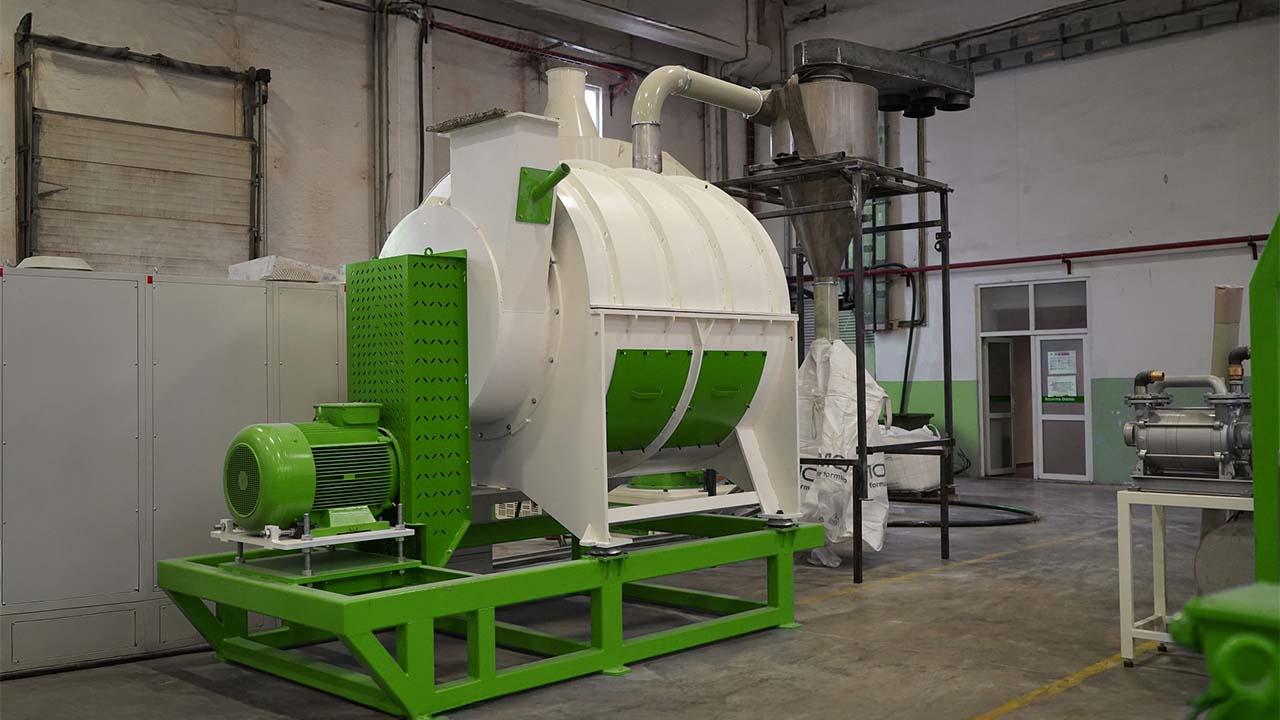

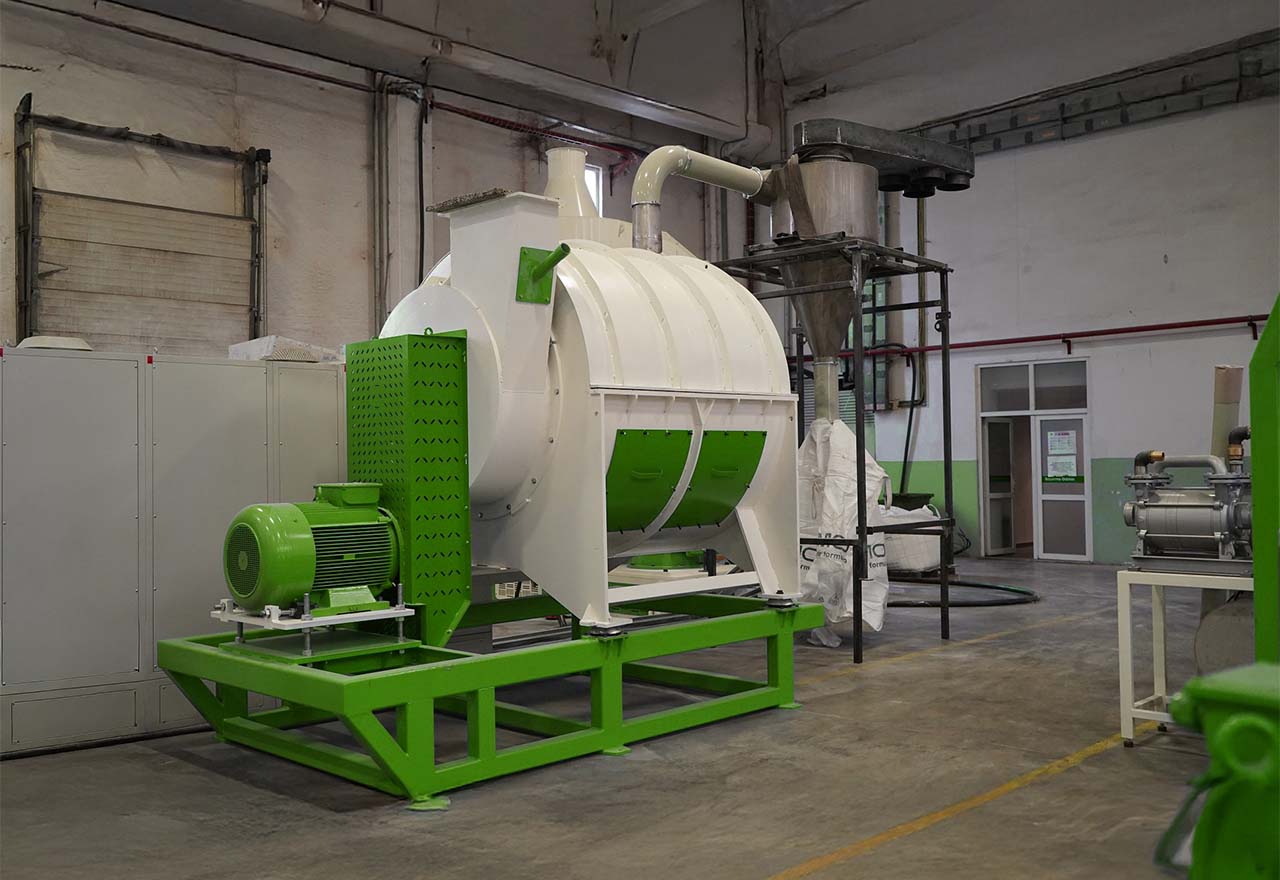

Mechanical Dryer-1
Mechanical Dryer-1

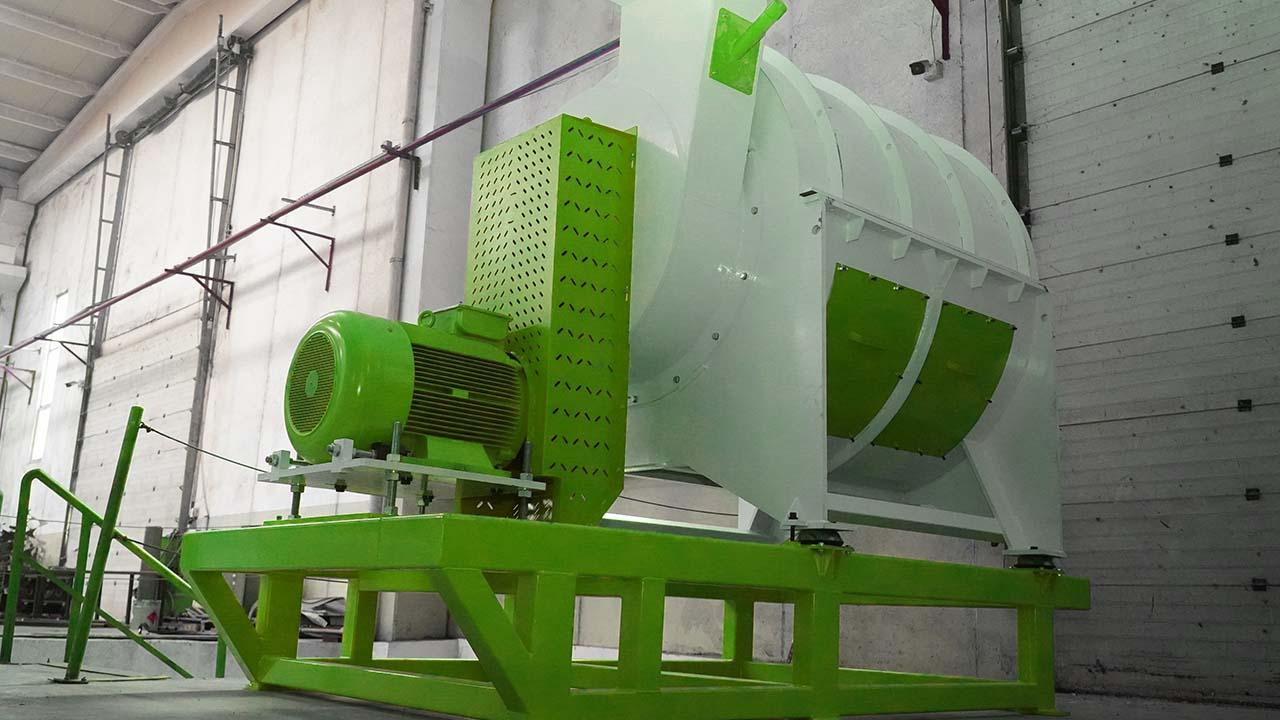

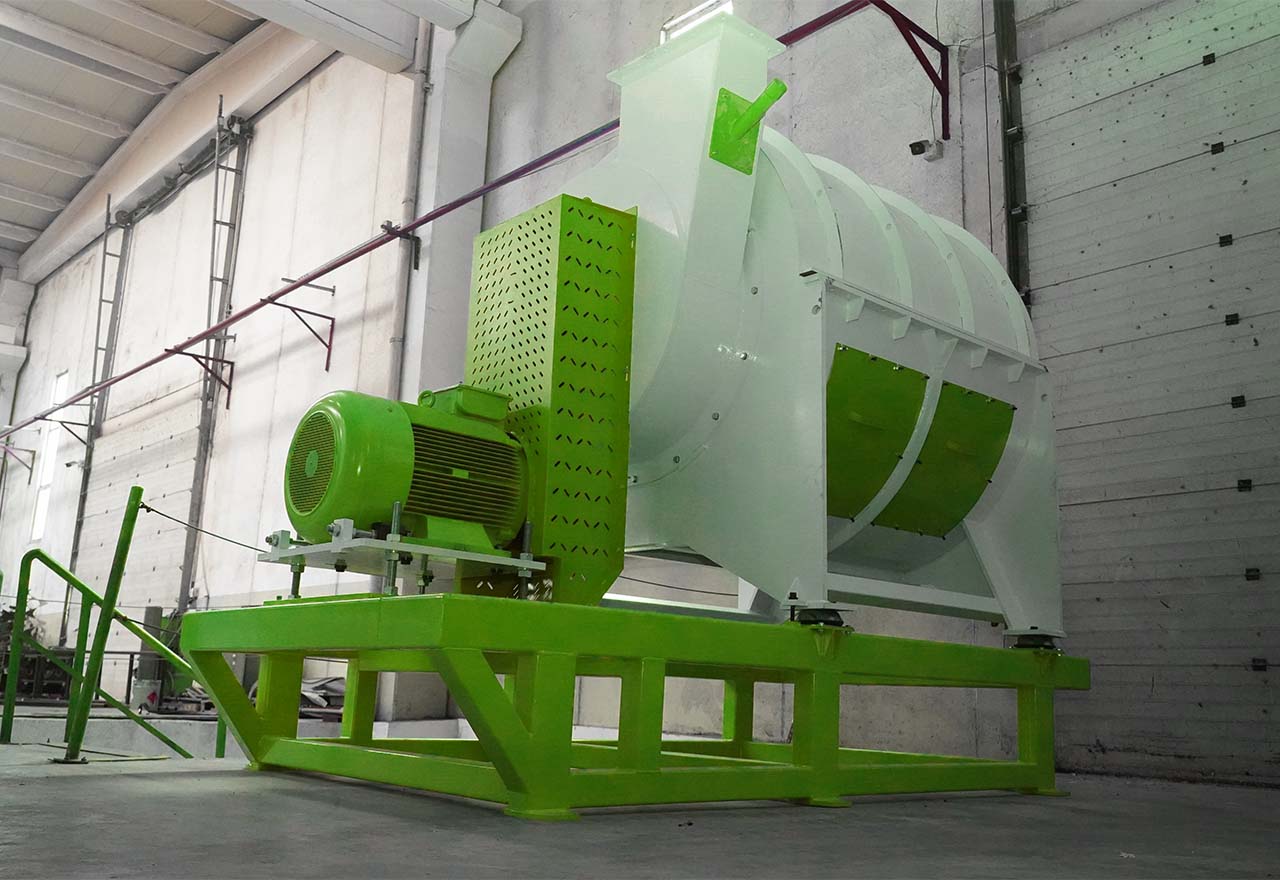

Mechanical Dryer-2
Mechanical Dryer-2

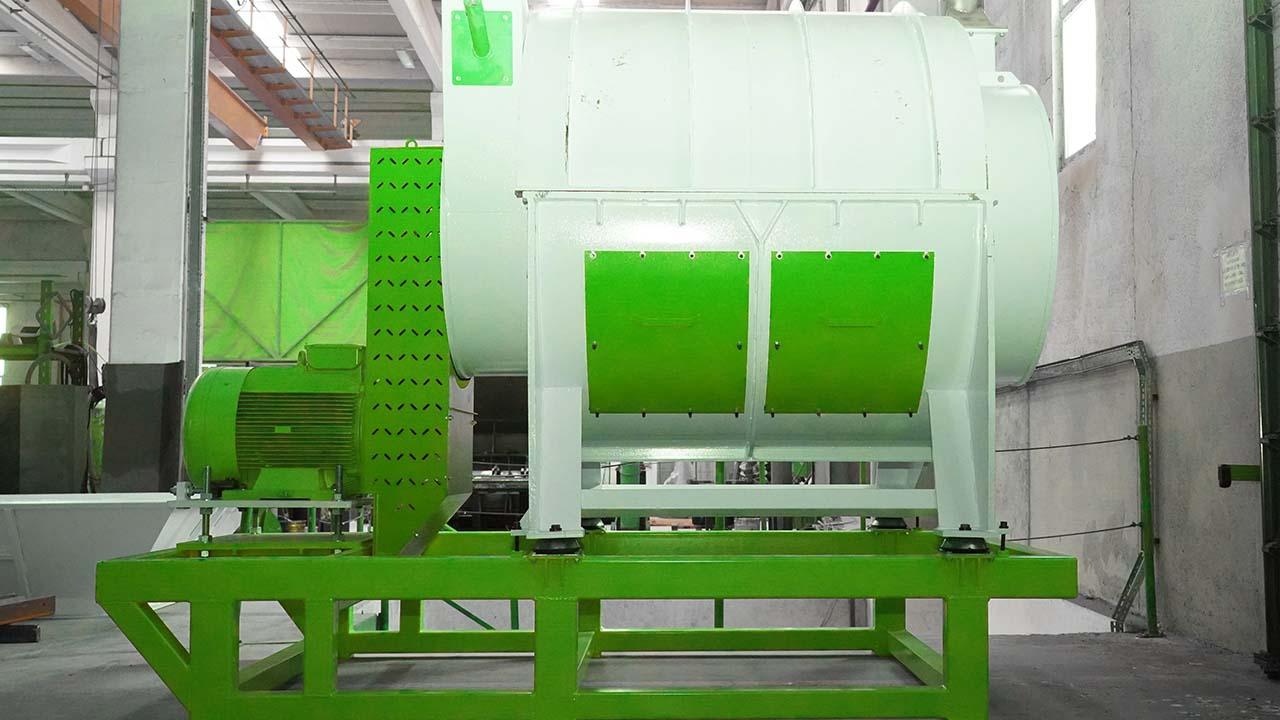

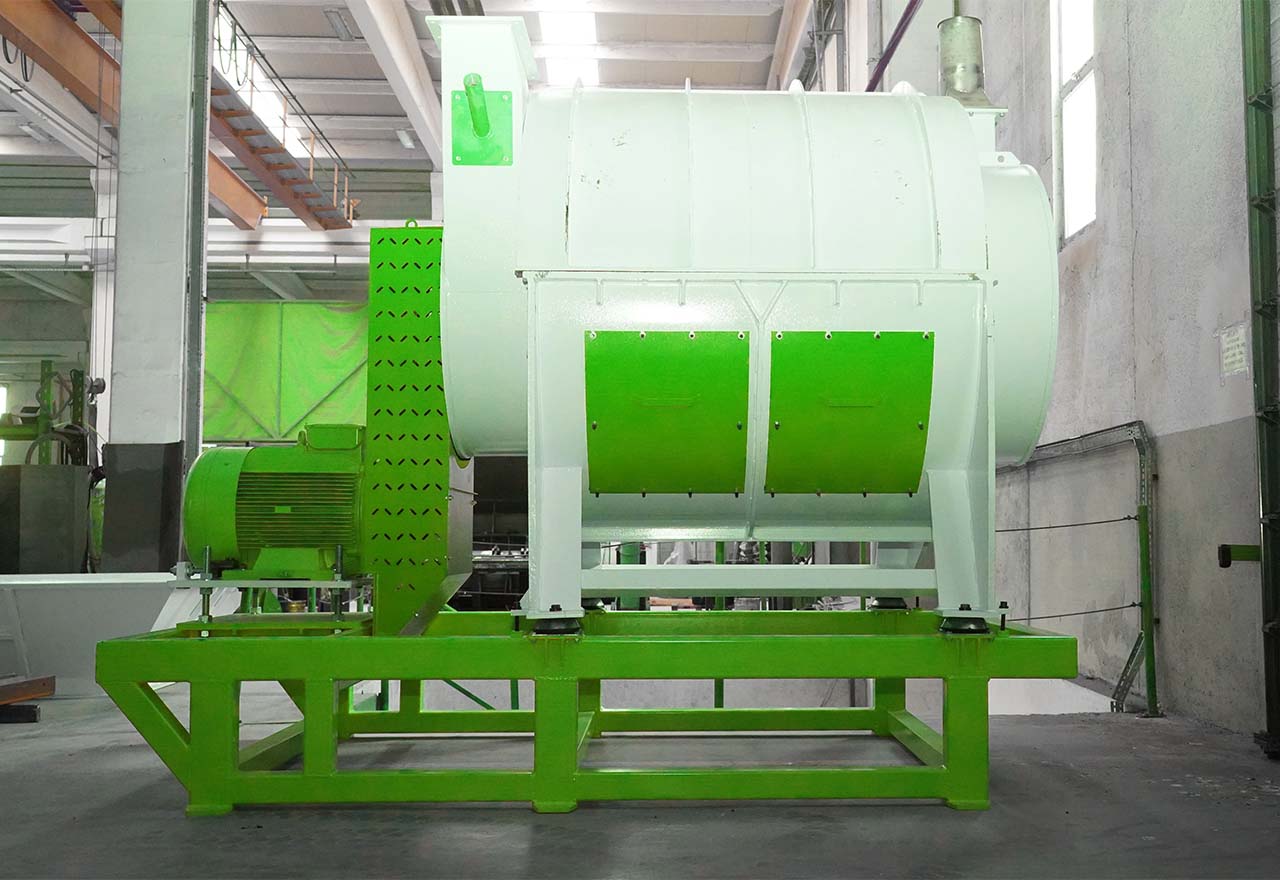

Mechanical Dryer-3
Mechanical Dryer-3
Video

In action

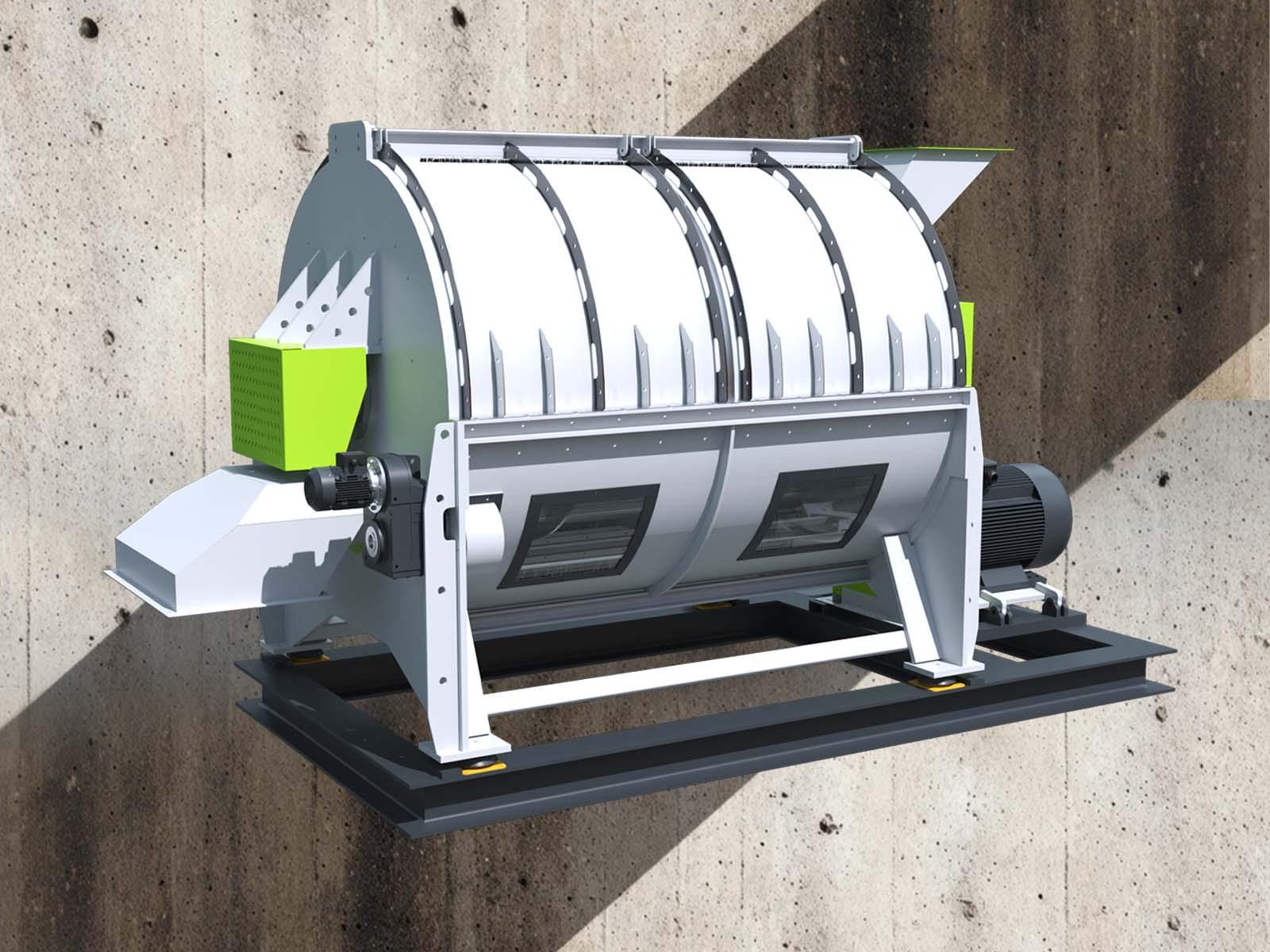

Mechanical Dryer
Frequently Asked Questions

About this page

What is the Mechanical Dryer used for?
Mechanically removes the surface water from washed plastic flakes using a high-speed rotor and screen; it is the drying stage of the washing line.
How much moisture does mechanical drying leave behind?
The residual moisture varies depending on the material type, particle size and capacity. You can contact İnan Tech for your target moisture level.
Do you provide installation, spare parts and service?
Yes. We provide engineering, installation, commissioning, operator training, spare parts and ongoing technical service.
