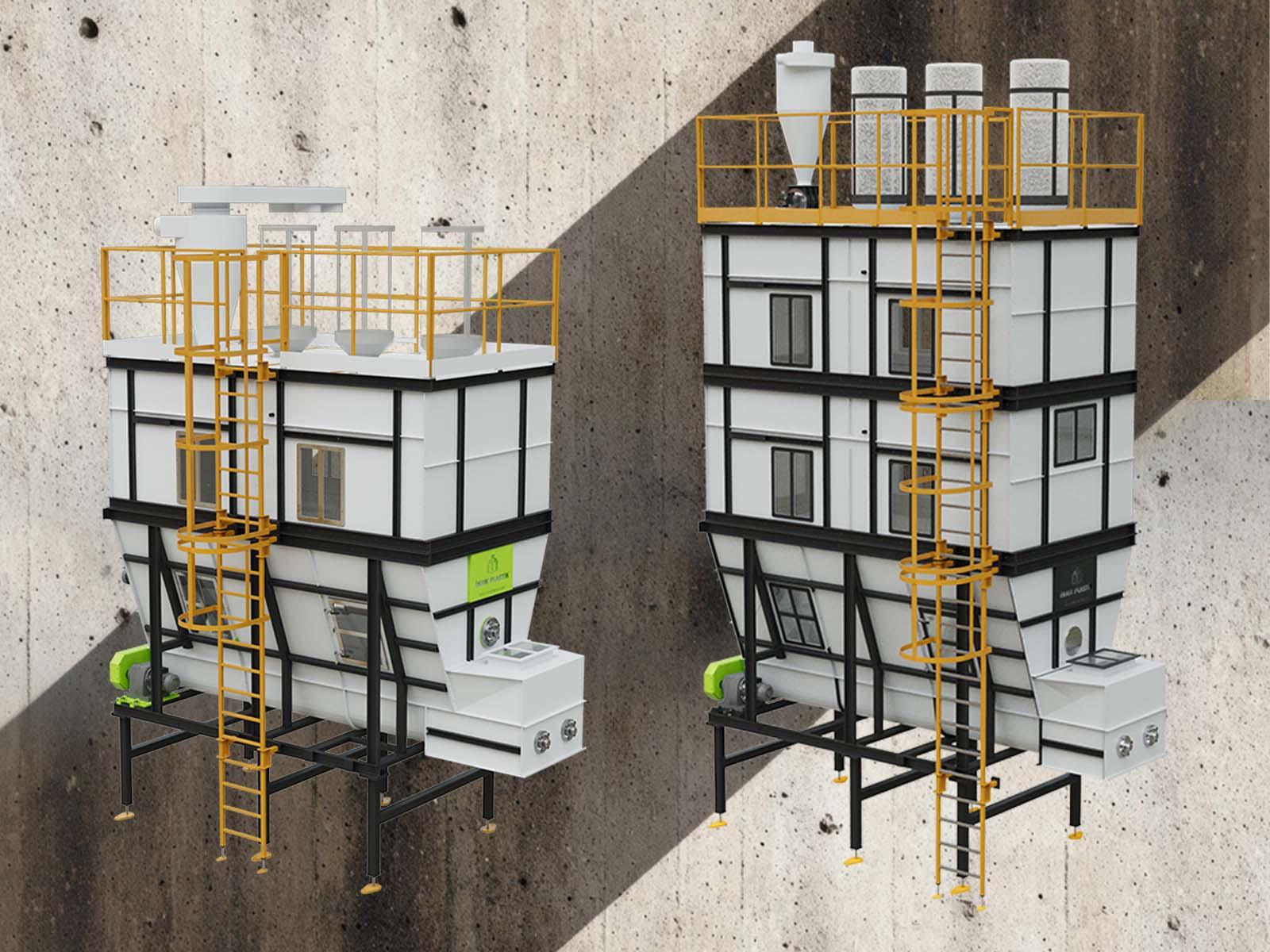

Storage Bunker (Silo)

Temporarily stores the material and feeds the line in a balanced, uninterrupted way; it provides buffer volume.

Storage Bunker (Silo)
Technical Data

Features

Volume
40 m³
Total Power
9 kW
Approximate Weight
~6 t

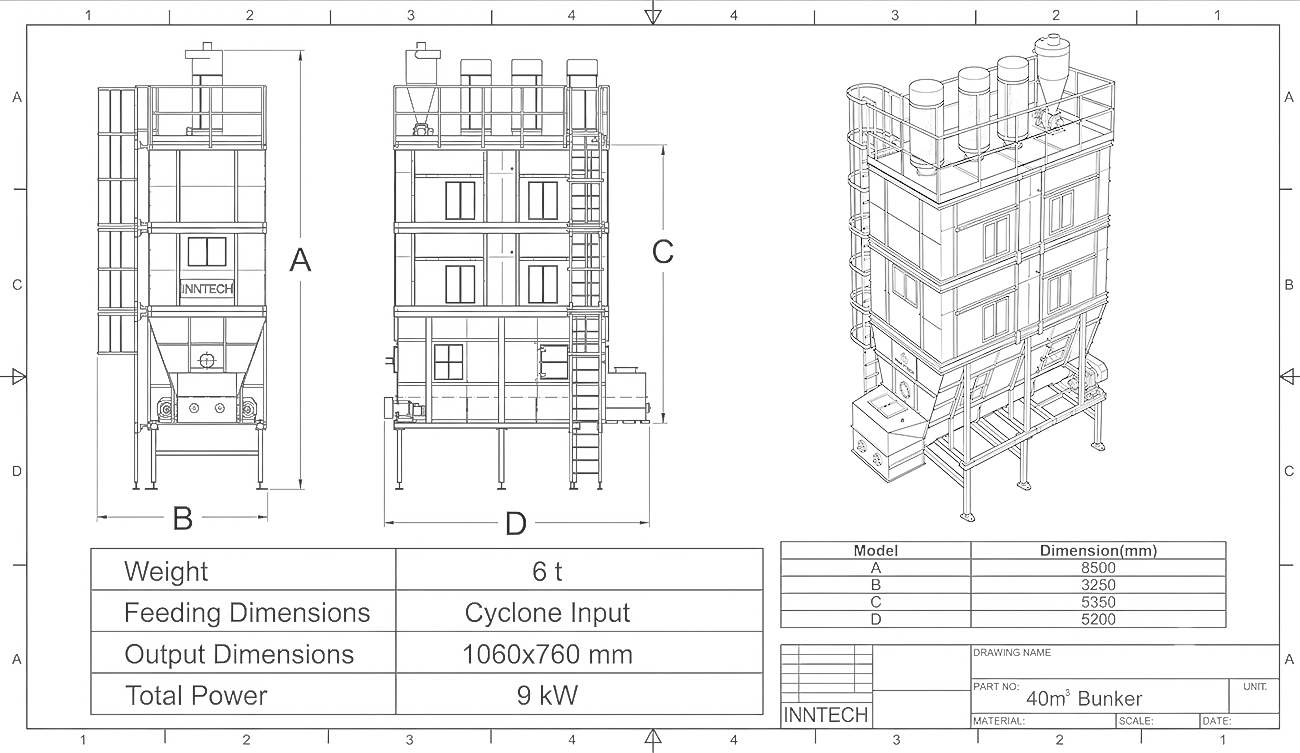

Storage Bunker (Silo) technical drawing

What is a Storage Bunker (Silo) and what is it used for?

The storage bunker (silo) temporarily stores crushed or washed material and, with its rotating base/screw, feeds the line in a balanced and uninterrupted way. It acts as a buffer volume that smooths out fluctuations in the production line. It is offered in different volumes and with cyclone feeding options.

Advantages

  • Balanced and uninterrupted feeding
  • Buffer volume that smooths out line fluctuations
  • Different volume options (25 / 40 m³)
  • Pneumatic feeding capability with a cyclone

Applications

  • Intermediate storage in washing and pelletizing lines
  • Line feed balancing
  • Flake and pellet stocking

Position in the line

The storage bunker acts as a buffer between stages; it temporarily stores the material and feeds it to the next unit in a balanced way via conveying elements. By reducing feeding fluctuations, it contributes to the uninterrupted operation of the line.

From the Field

Images

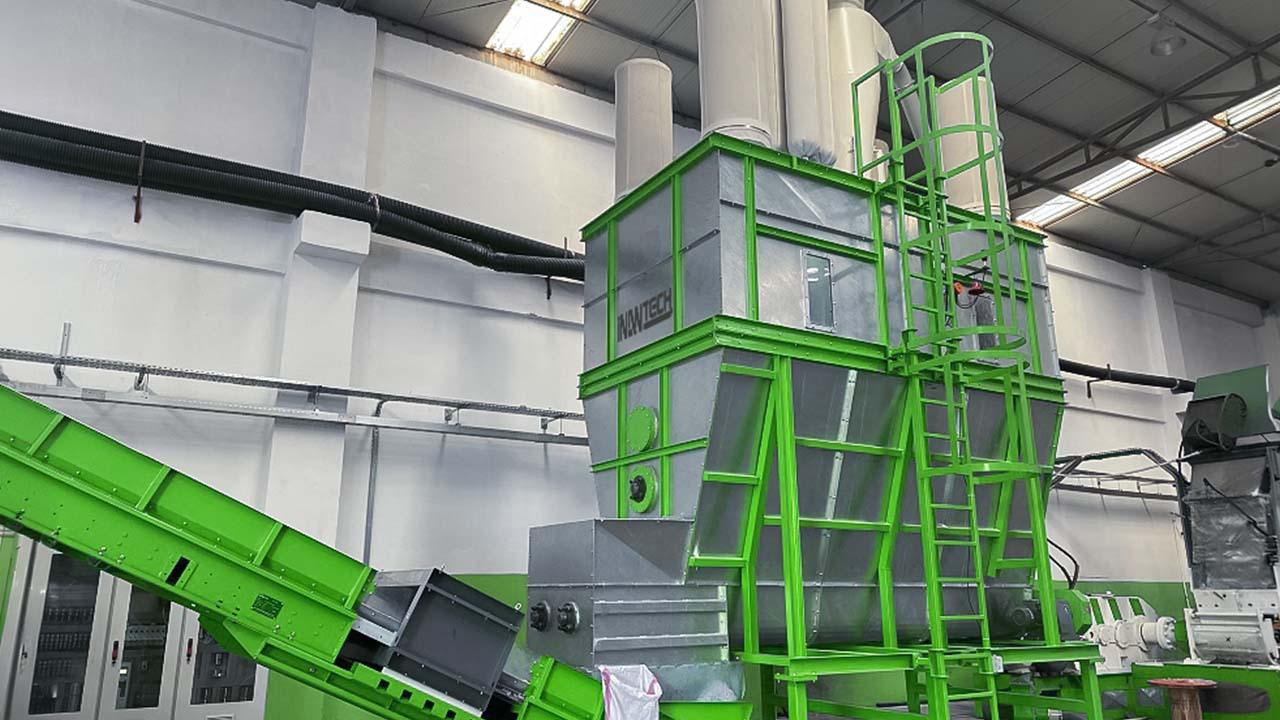

Storage Bunker (Silo)-1
Storage Bunker (Silo)-1

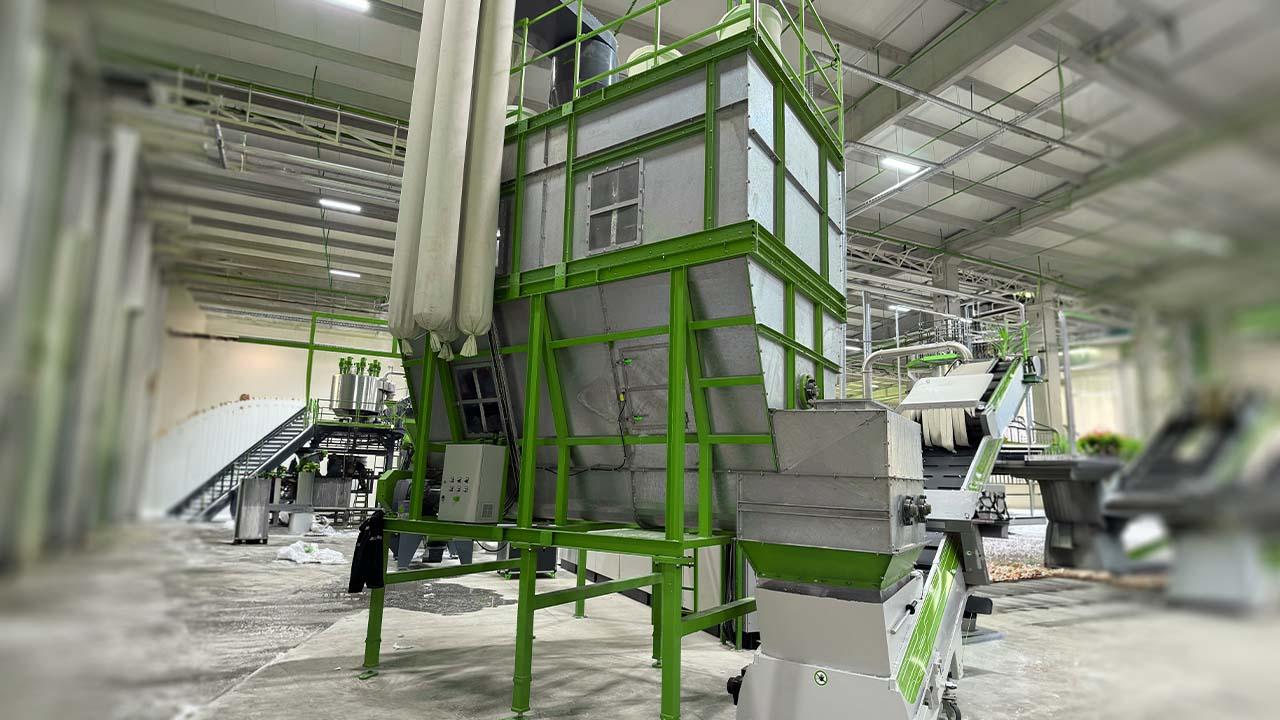

Storage Bunker (Silo)-2
Storage Bunker (Silo)-2

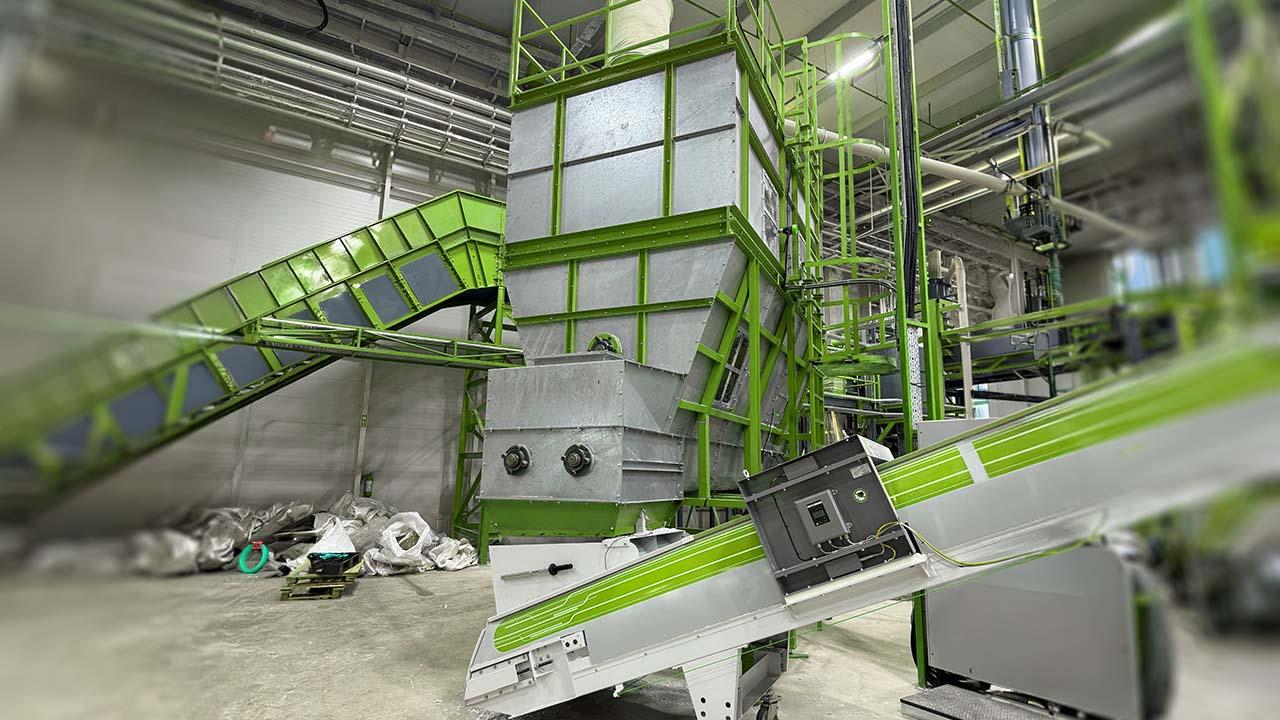

Storage Bunker (Silo)-3
Storage Bunker (Silo)-3
Frequently Asked Questions

About this page

What is the Storage Bunker (Silo) used for?
Temporarily stores the material and feeds the line in a balanced, uninterrupted way; it provides buffer volume.
In which volumes is the bunker offered?
It is sized according to need, primarily in 25 m³ and 40 m³; a cyclone feeding option is also available.
Do you provide installation, spare parts and service?
Yes. We provide engineering, installation, commissioning, operator training, spare parts and ongoing technical service.
