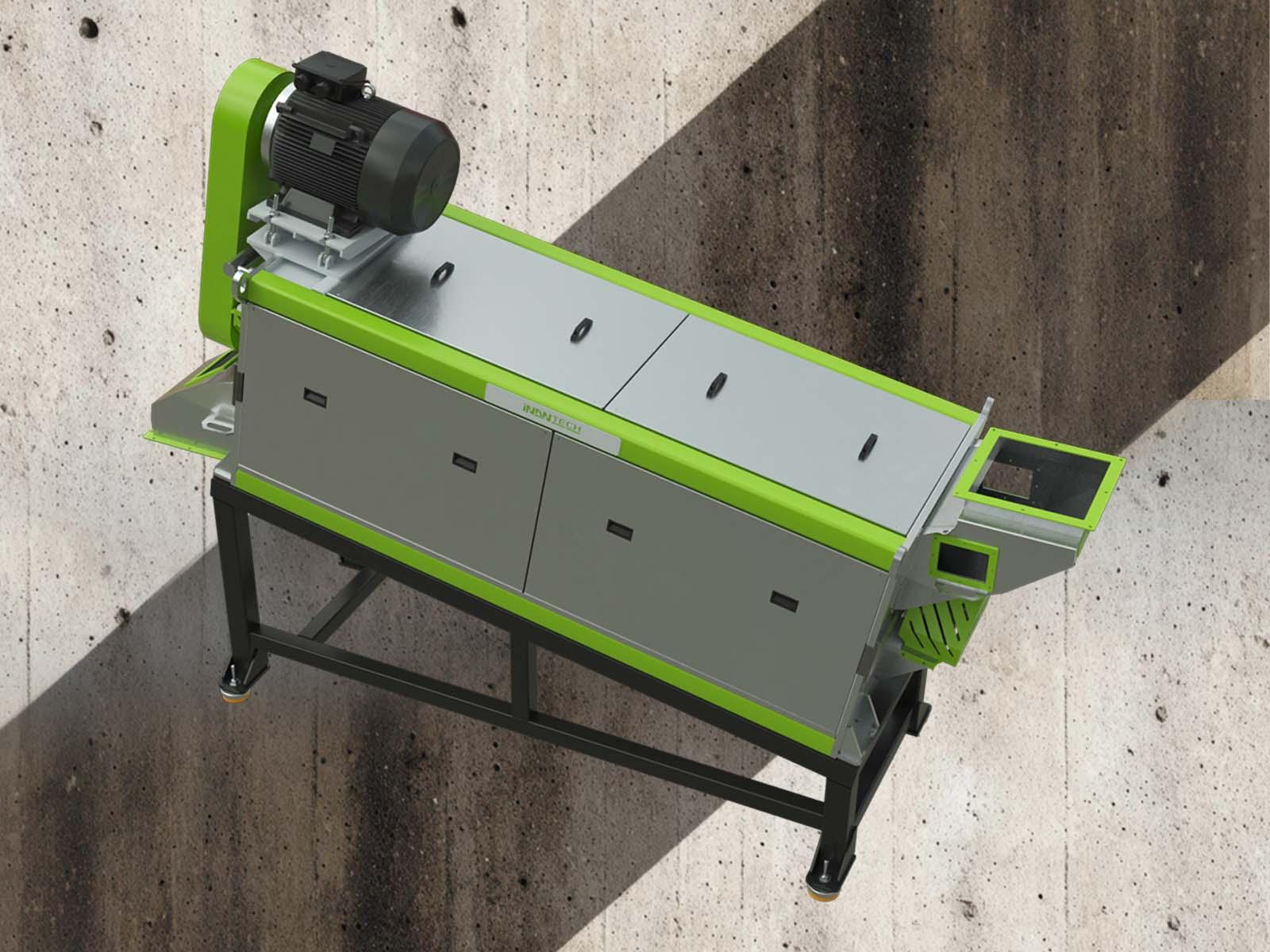

Horizontal Friction Washer

Using a high-speed rotor, it scrubs flakes to remove surface dirt, labels and adhesives while removing water at the same time.

Horizontal Friction Washer
Technical Data

Features

Dimensions (W×D×H)
3975 × 1150 × 2705 mm
Total Power
37 kW
Approximate Weight
~2,8 t

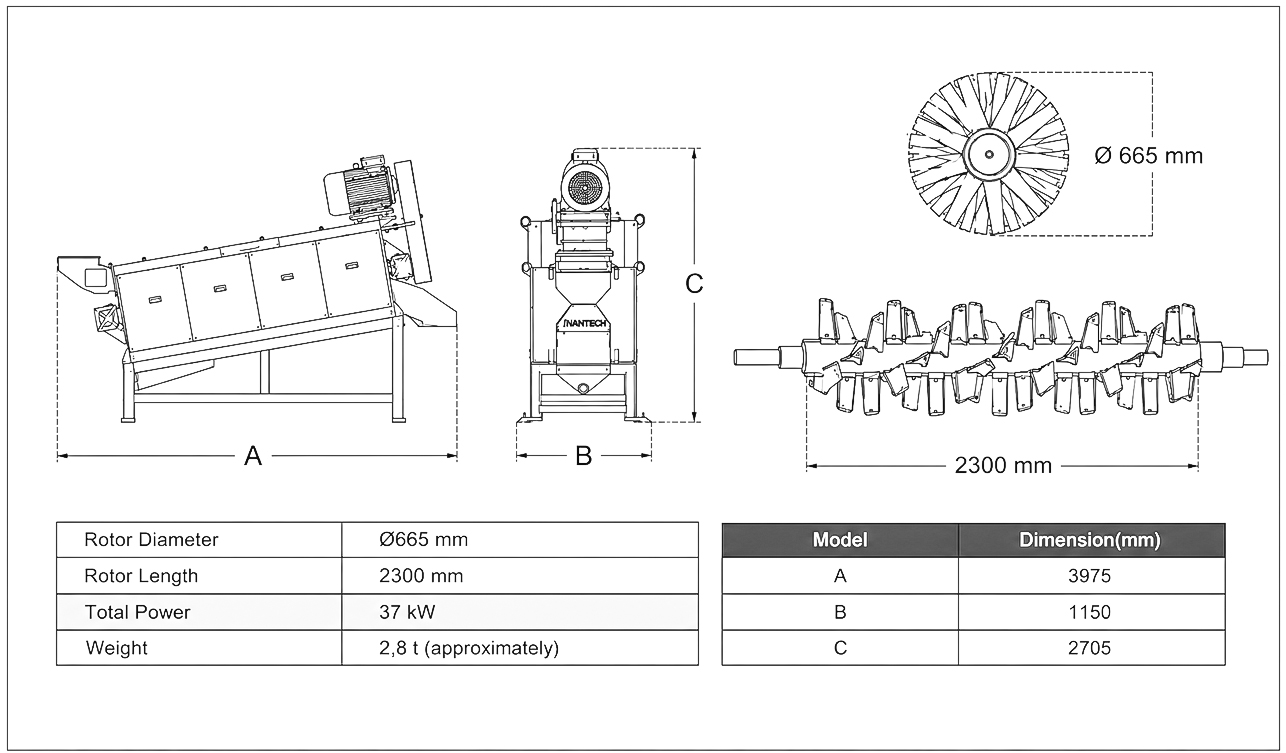

Horizontal Friction Washer technical drawing

What is the Horizontal Friction Washer and what is it used for?

The Horizontal Friction Washer rotates flakes inside the body using a horizontally positioned, high-speed rotor; it both cleans surface dirt and label residue through mechanical friction and removes a large portion of the water. Thanks to the long contact time, it provides effective washing and pre-drying.

Applications

  • PET bottle and hot washing lines
  • Film and rigid plastic washing
  • Removal of label and adhesive residue
  • Pre-dewatering after washing
From the Field

Images

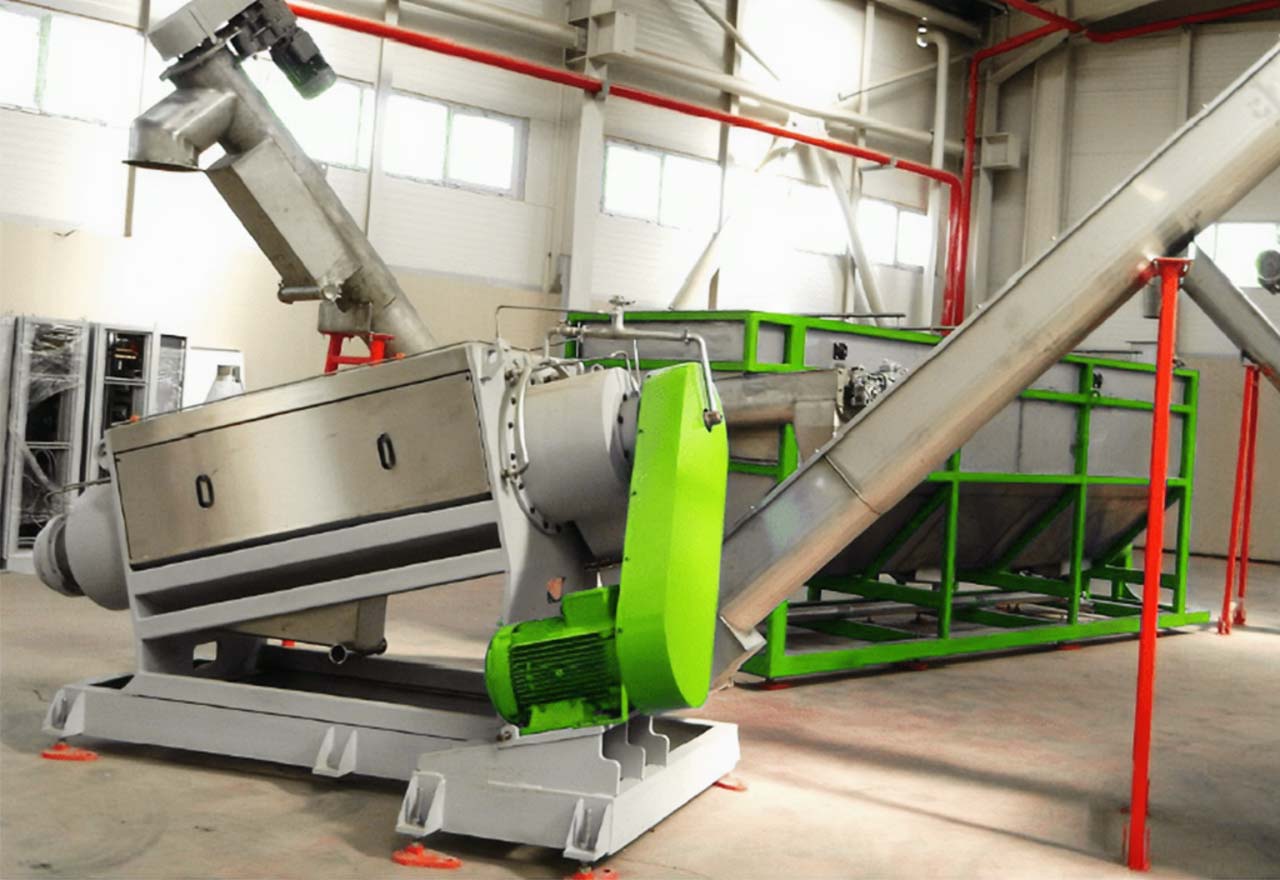

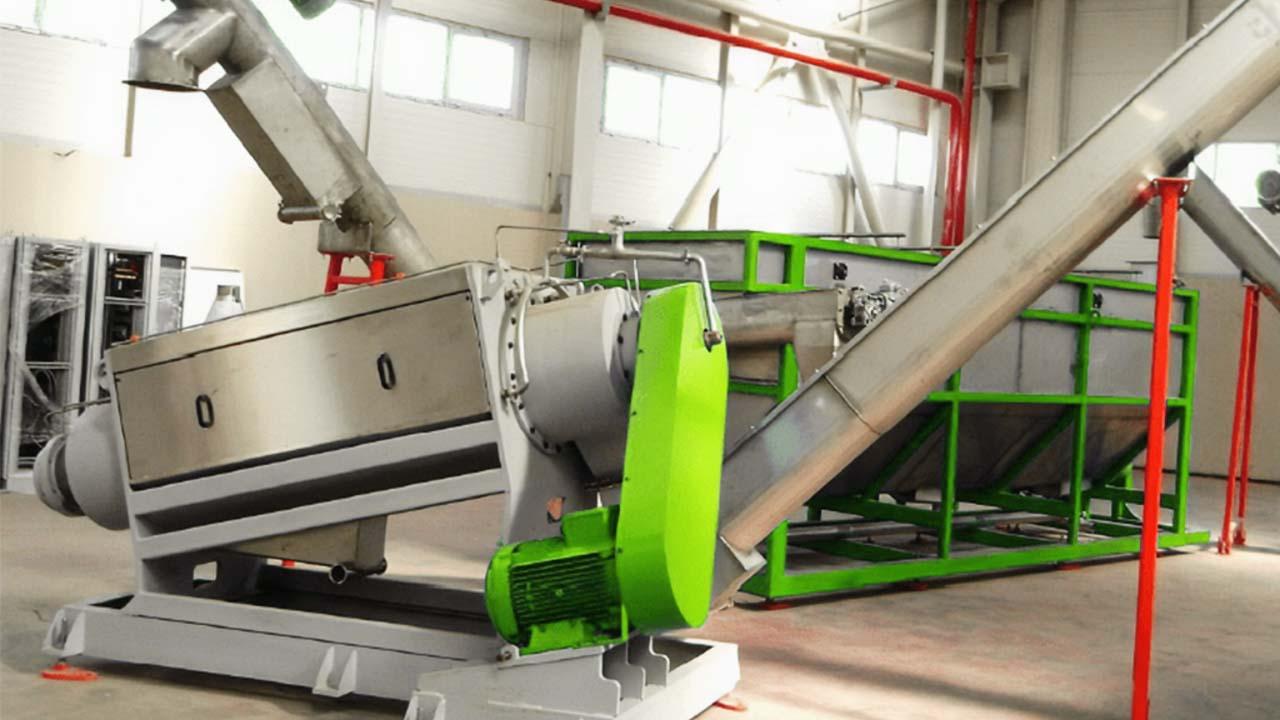

Horizontal Friction Washer-1
Horizontal Friction Washer-1

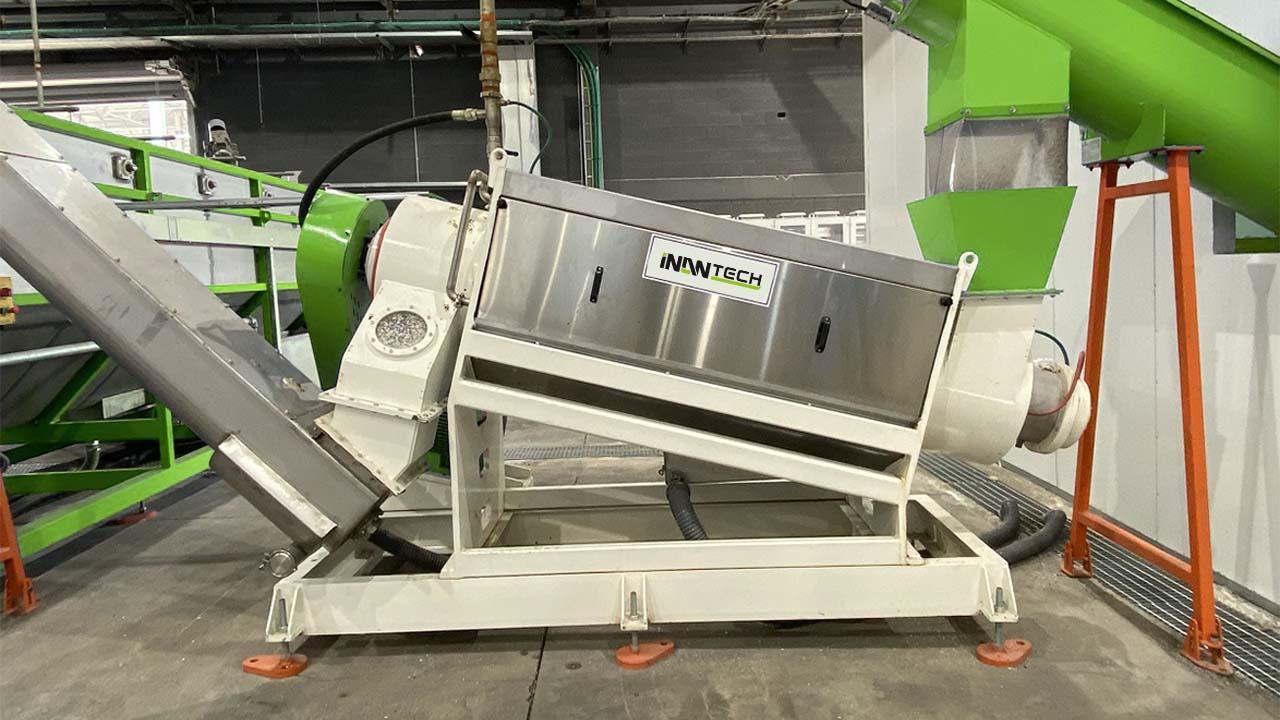

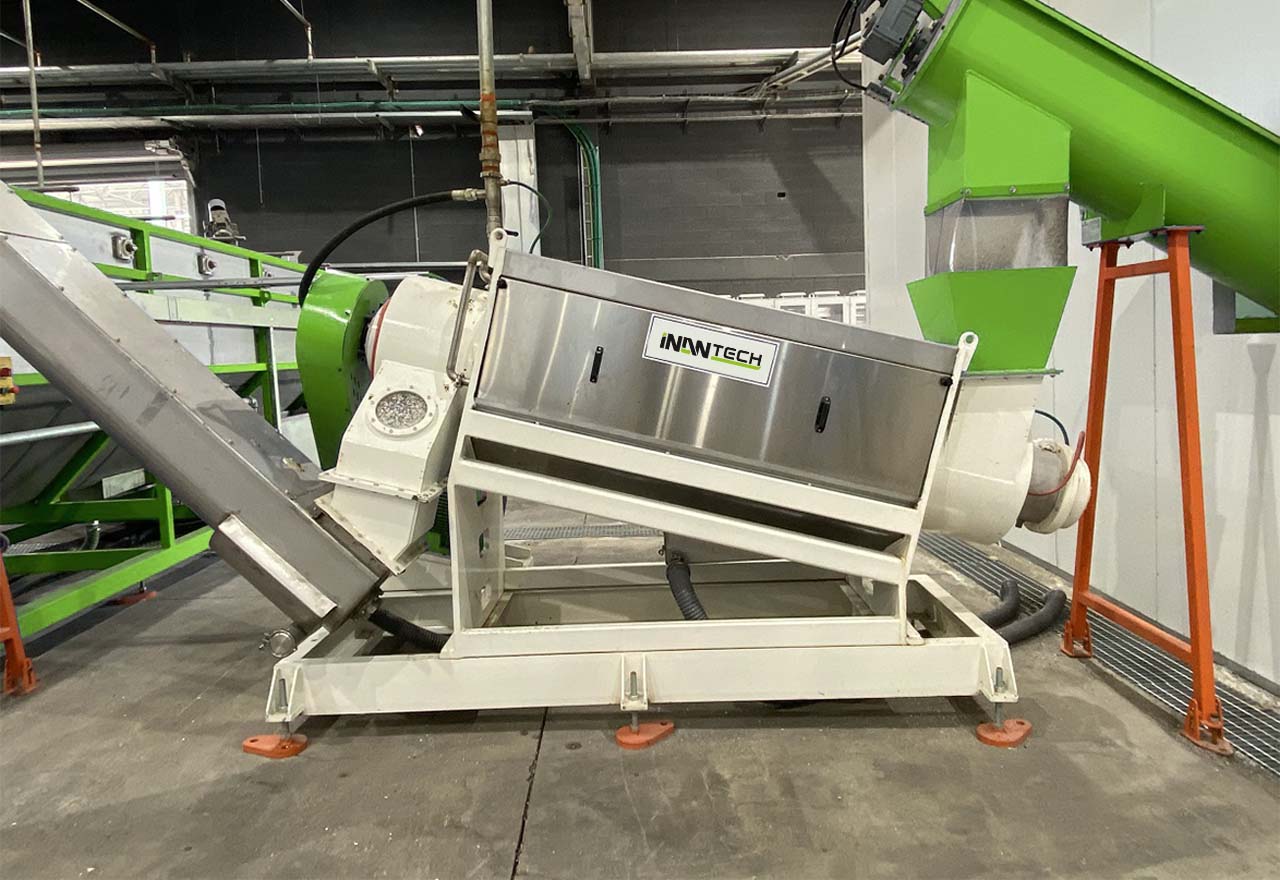

Horizontal Friction Washer-2
Horizontal Friction Washer-2

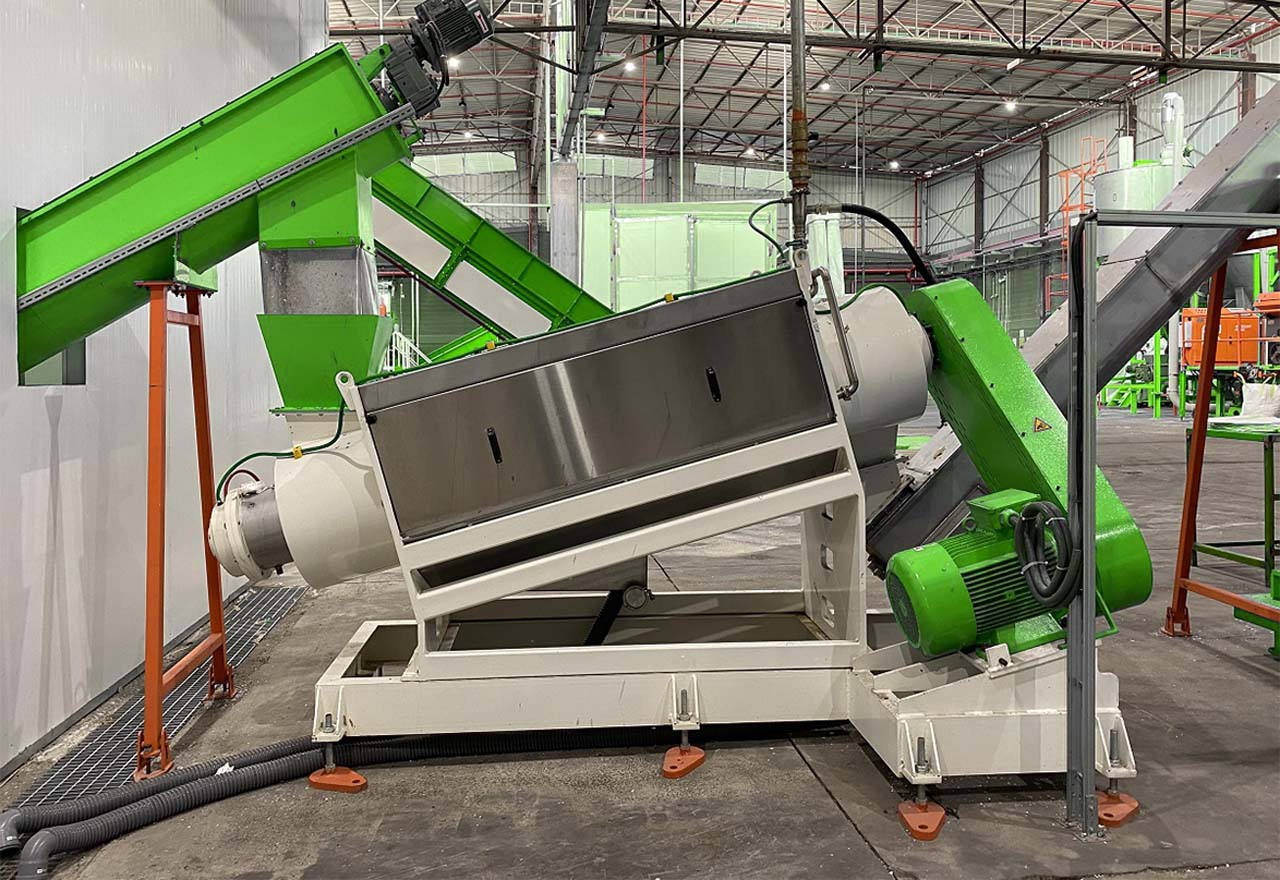

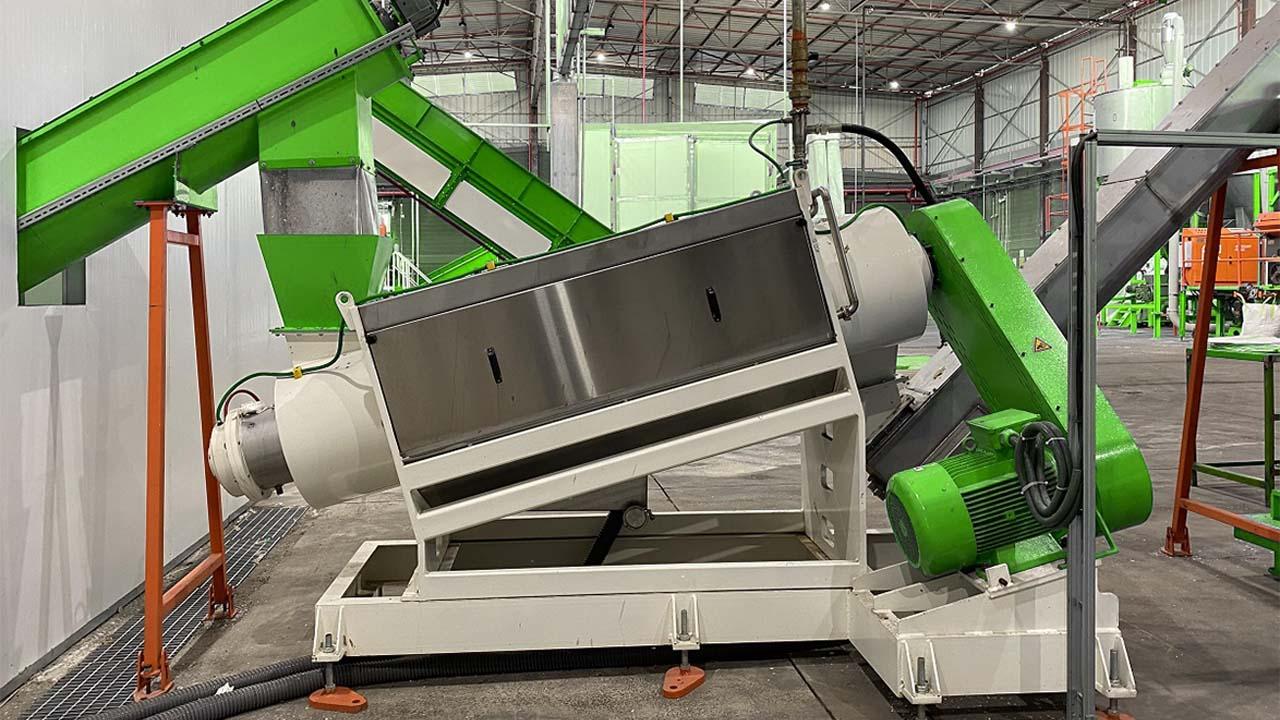

Horizontal Friction Washer-3
Horizontal Friction Washer-3
Frequently Asked Questions

About this page

What does the Horizontal Friction Washer do?
Using a high-speed rotor, it scrubs flakes to remove surface dirt, labels and adhesives and removes water; it serves as both an intensive wash and a pre-drying step.
What is the difference between the Horizontal and 35D friction washers?
Both perform friction washing and dewatering; they differ in layout (horizontal / vertical-inclined) and flow direction. We can determine the right type for your line together.
Do you provide installation, spare parts and service?
Yes. We provide engineering, installation, commissioning, operator training, spare parts and ongoing technical service.
