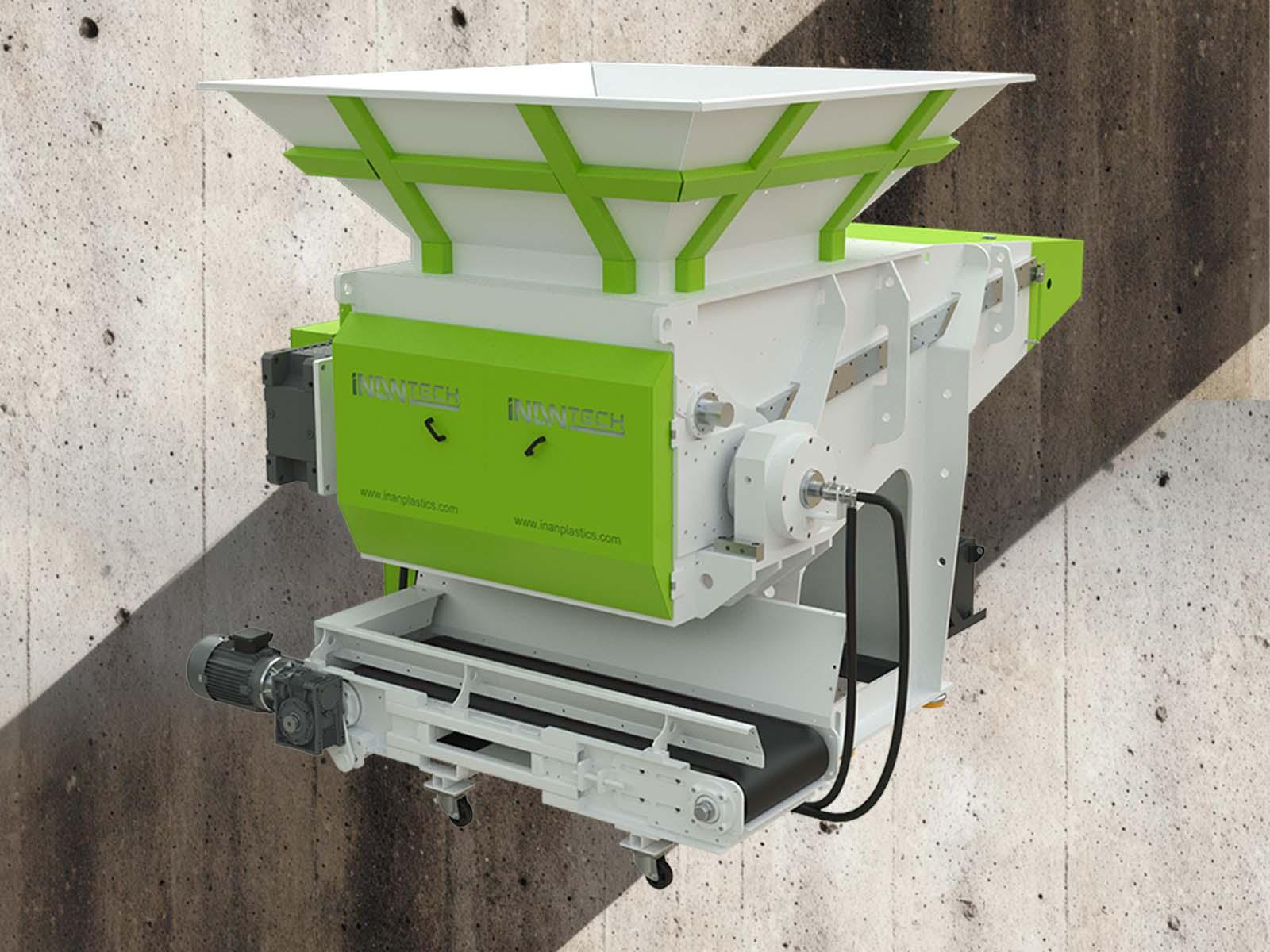

1300 Single-Shaft Shredder

A high-capacity class shredder. For the heavy-duty pre-shredding of bulky and tough plastic.

1300 Single-Shaft Shredder
Technical Data

Features

Total Power
99 kW

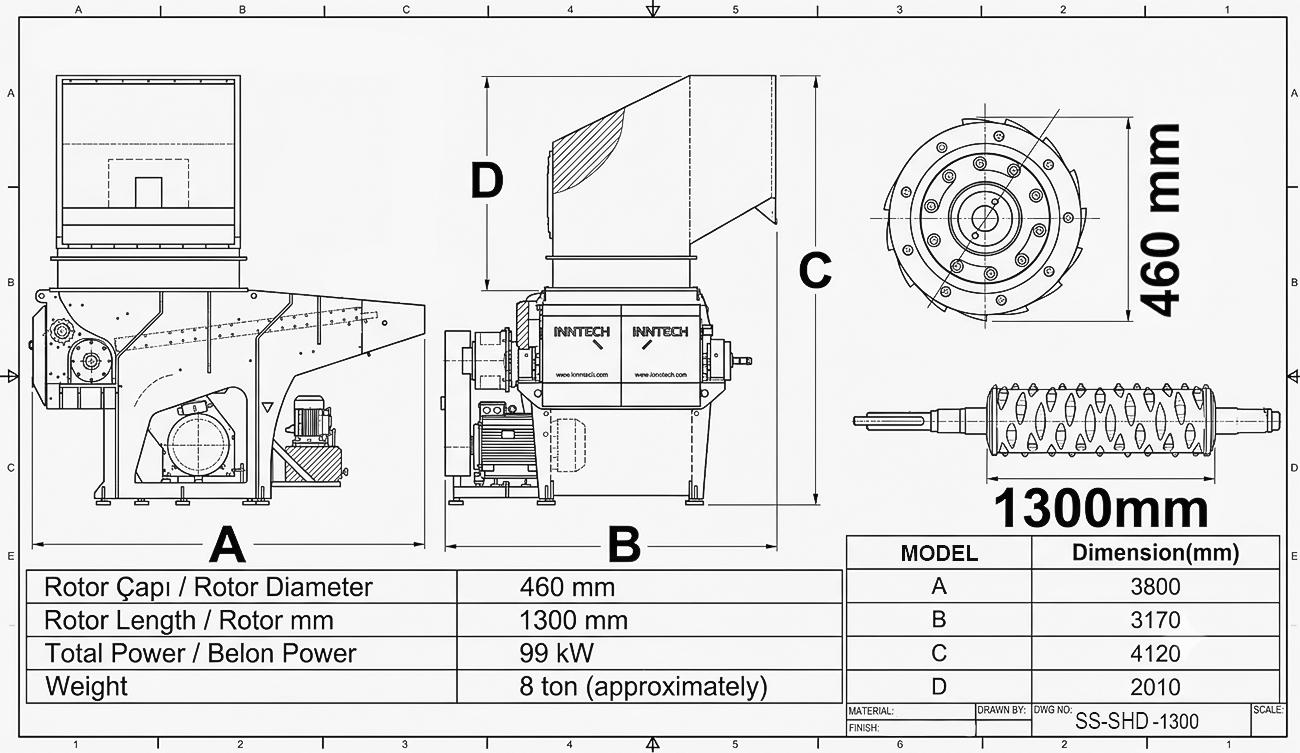

1300 Single-Shaft Shredder technical drawing

What is the 1300 and what is it used for?

The 1300 is a single-shaft shredder in the high-capacity class. It runs with a rotating rotor, a hydraulic pusher and a screen; it shreds the material by pressing it against the rotor and releases only the pieces that pass through the screen openings. The output is therefore controlled and homogeneous. With its low speed – high torque principle, it processes tough inputs without jamming.

1300 highlights

The 1300 meets the need for a wide feed on medium- to high-volume lines. Since it provides a size-controlled and relatively homogeneous output with its screen, it is suitable for feeding the subsequent granulation stage. The nearby models 1100 and 1500 can be reviewed.

Who is it suitable for?

  • Plants that want homogeneous, size-controlled output in a single stage
  • Processors of film, sheet, profile, injection scrap and packaging
  • Production lines that need continuous and balanced feeding
From the Field

Images

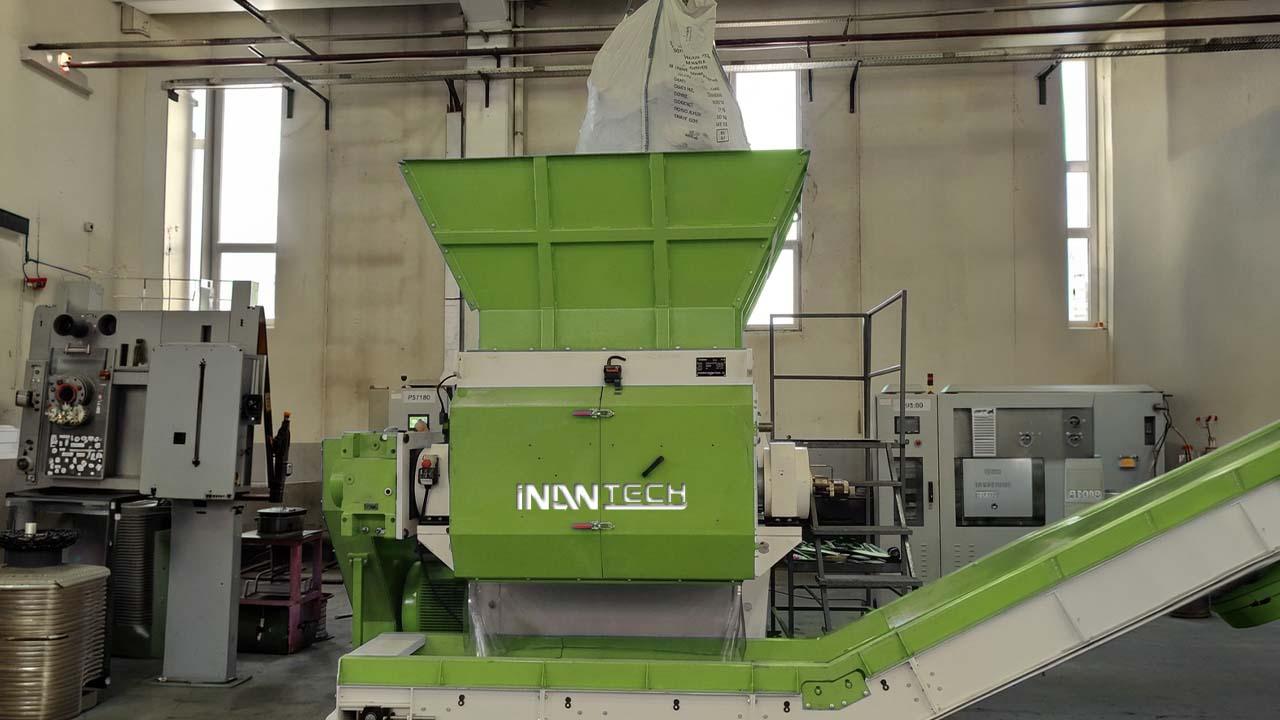

1300 Single-Shaft Shredder-1
1300 Single-Shaft Shredder-1

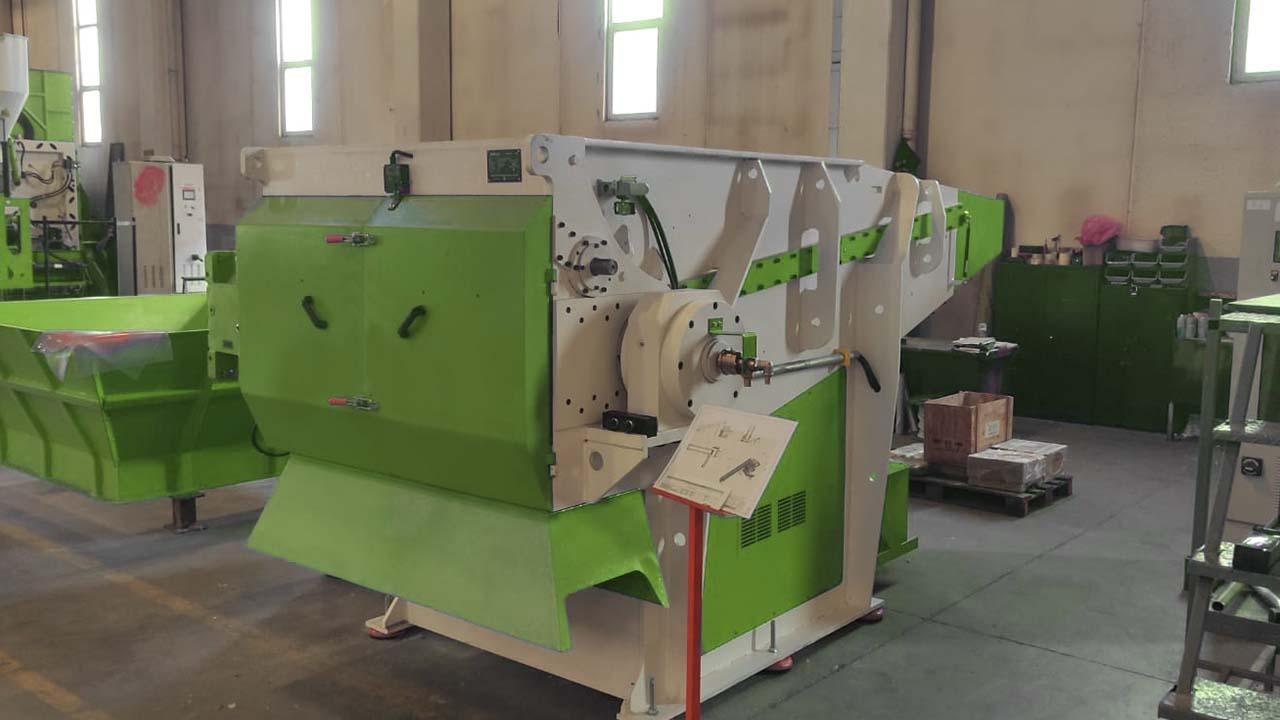

1300 Single-Shaft Shredder-2
1300 Single-Shaft Shredder-2

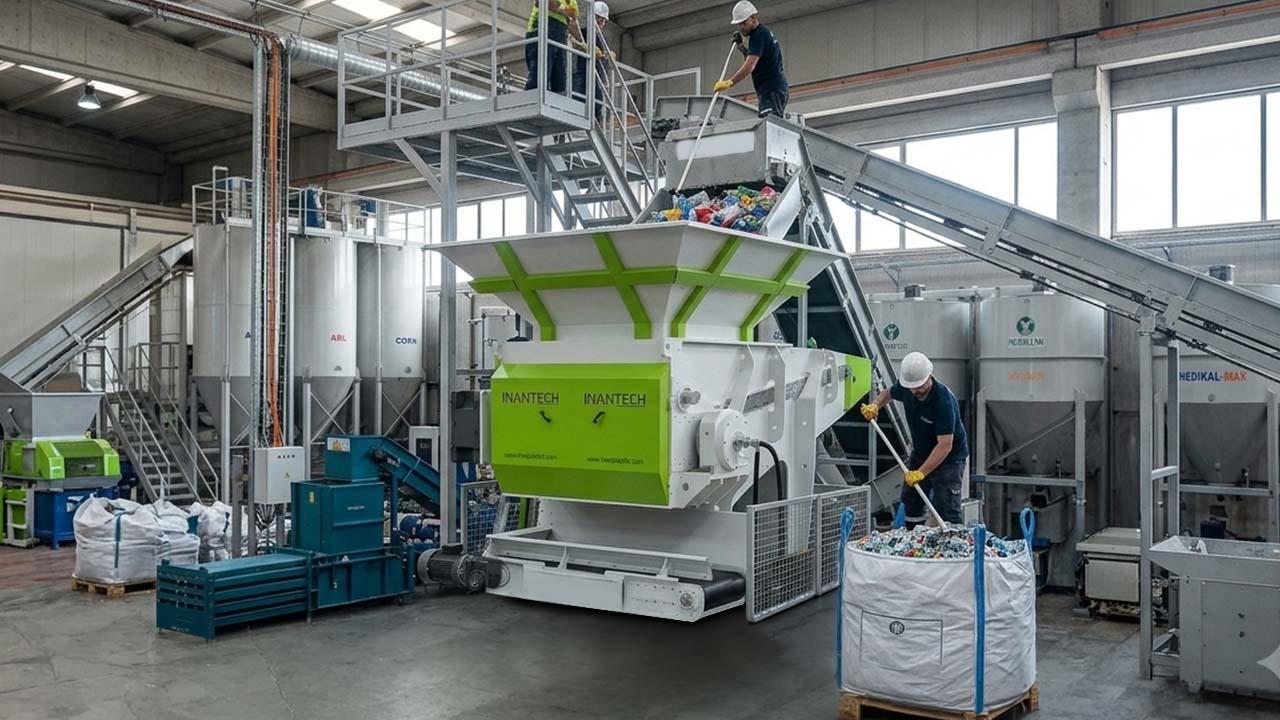

1300 Single-Shaft Shredder-3
1300 Single-Shaft Shredder-3
Video

In action

1300 Single-Shaft Shredder
Frequently Asked Questions

About this page

What type of shredder is the 1300?
The 1300 is a shredder machine in the single-shaft class; it is a high-capacity model.
What are the technical specifications of the 1300?
Dimensions, total power and approximate weight are determined according to the project and shared at the quotation stage. For more information, you can contact İnan Tech.
What is the difference between single-shaft and double-shaft?
A single-shaft shredder delivers homogeneous, size-controlled output thanks to the screen. A double-shaft shredder works without a screen and performs coarser, heavy-duty pre-shredding.
Do you provide spare parts, installation and service?
Yes. We provide blade and spare-part supply, installation, commissioning, operator training and ongoing technical service.
