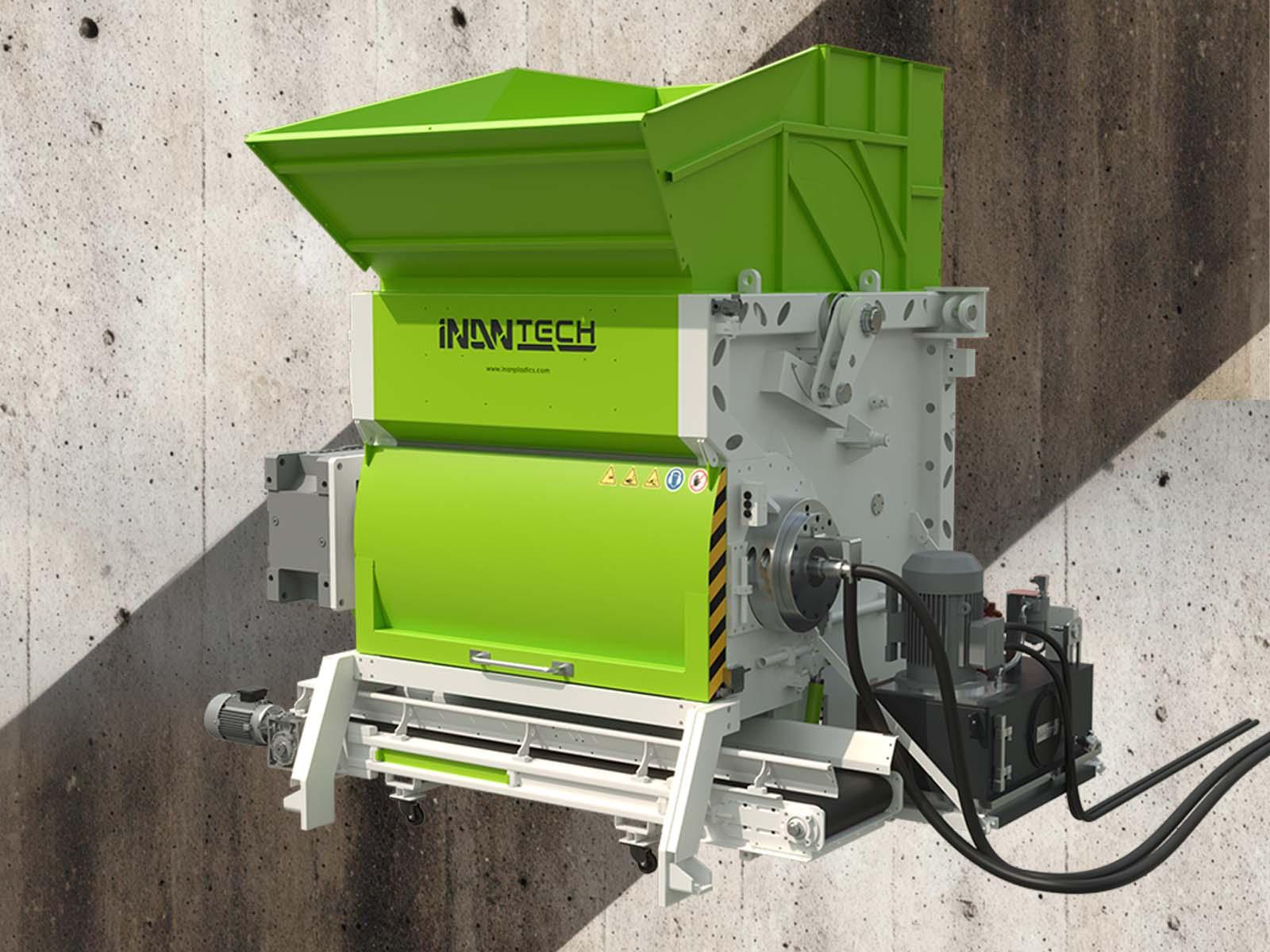

1500 Single-Shaft Shredder

Heavy-duty class shredder. For heavy-duty pre-shredding of bulky and demanding plastic.

1500 Single-Shaft Shredder
Technical Data

Features

Total Power
175 kW

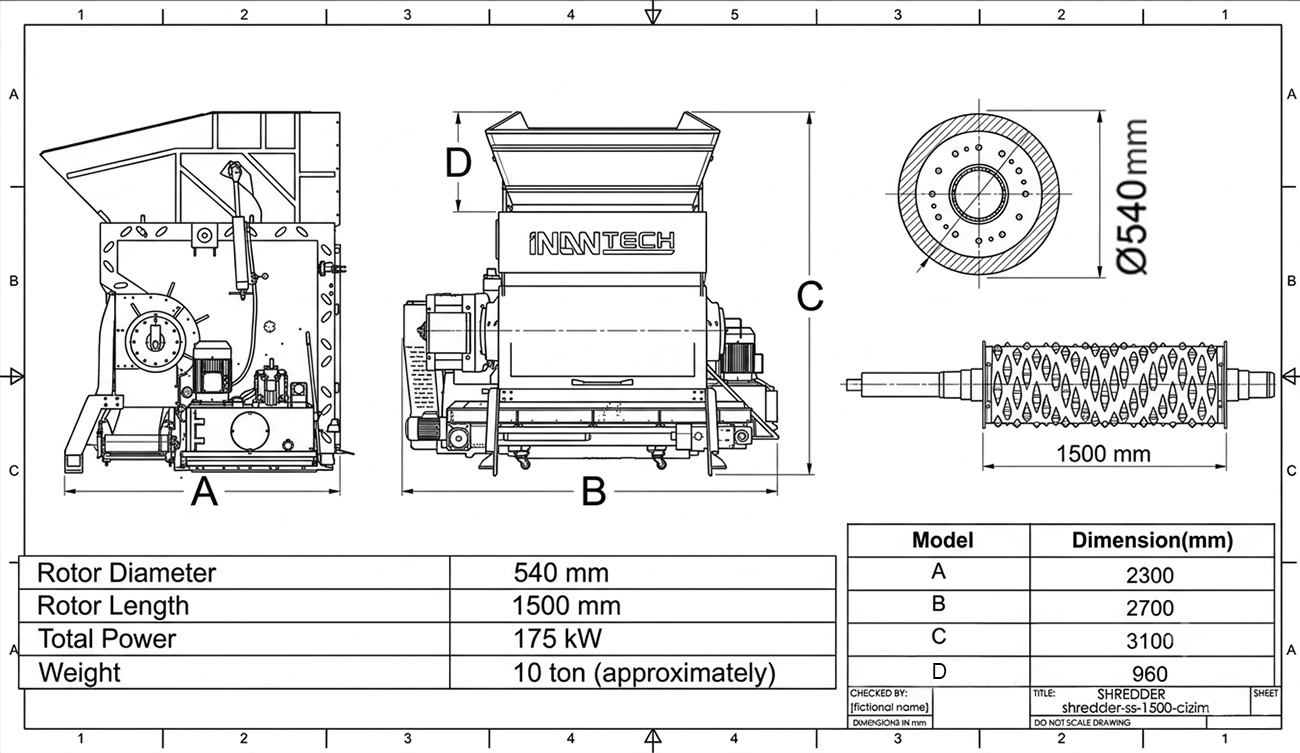

1500 Single-Shaft Shredder technical drawing

What is the 1500 and what is it used for?

The 1500 is a heavy-duty class single-shaft shredder. It operates with a rotating rotor, a hydraulic pusher and a screen; it shreds material by pressing it against the rotor and only releases the pieces that pass through the screen holes. This way the output size is controlled and homogeneous. With its low-speed, high-torque principle, it processes demanding inputs without jamming.

1500 highlights

The 1500 is a powerful model for high-tonnage single-shaft applications; with its wide feed opening, it pre-shreds large and tough parts. It targets stable performance on continuously running lines. For wider feeding, the 1600 and 2000 can be considered.

Who is it suitable for?

  • Plants that want homogeneous, size-controlled output in a single stage
  • Processors of film, sheet, profile, injection scrap and packaging
  • Production lines that need continuous and balanced feeding
From the Field

Images

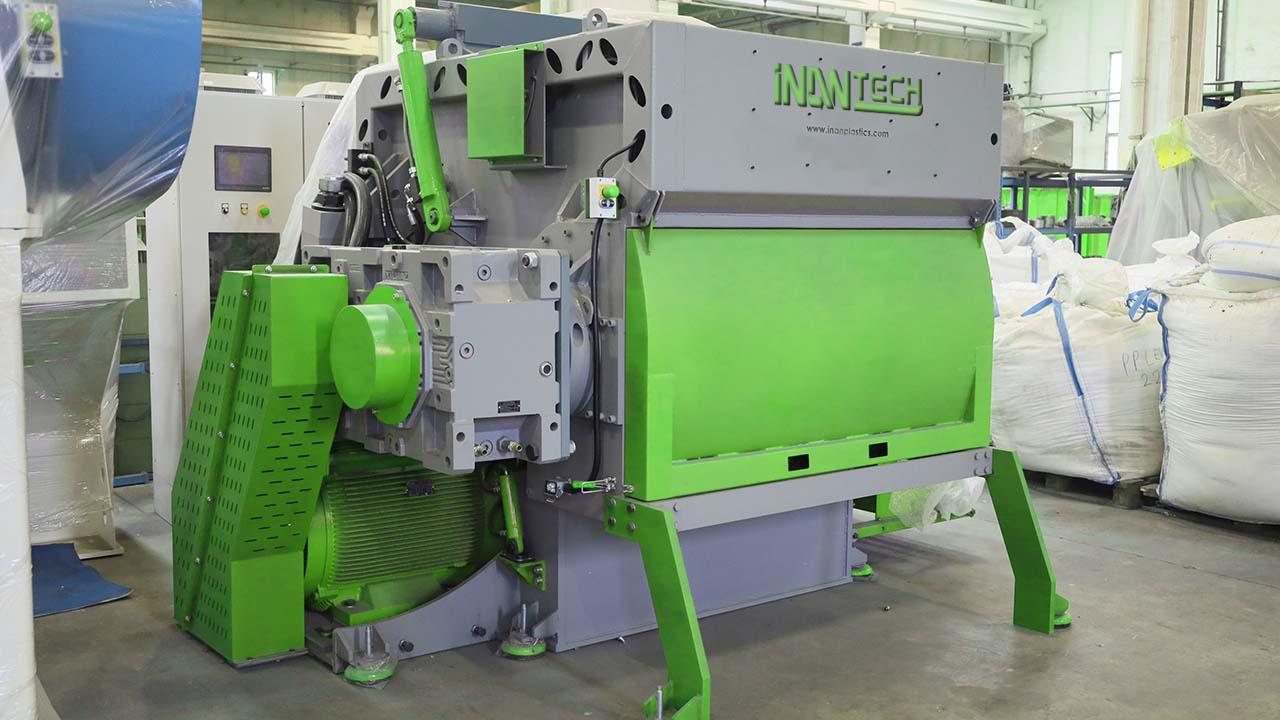

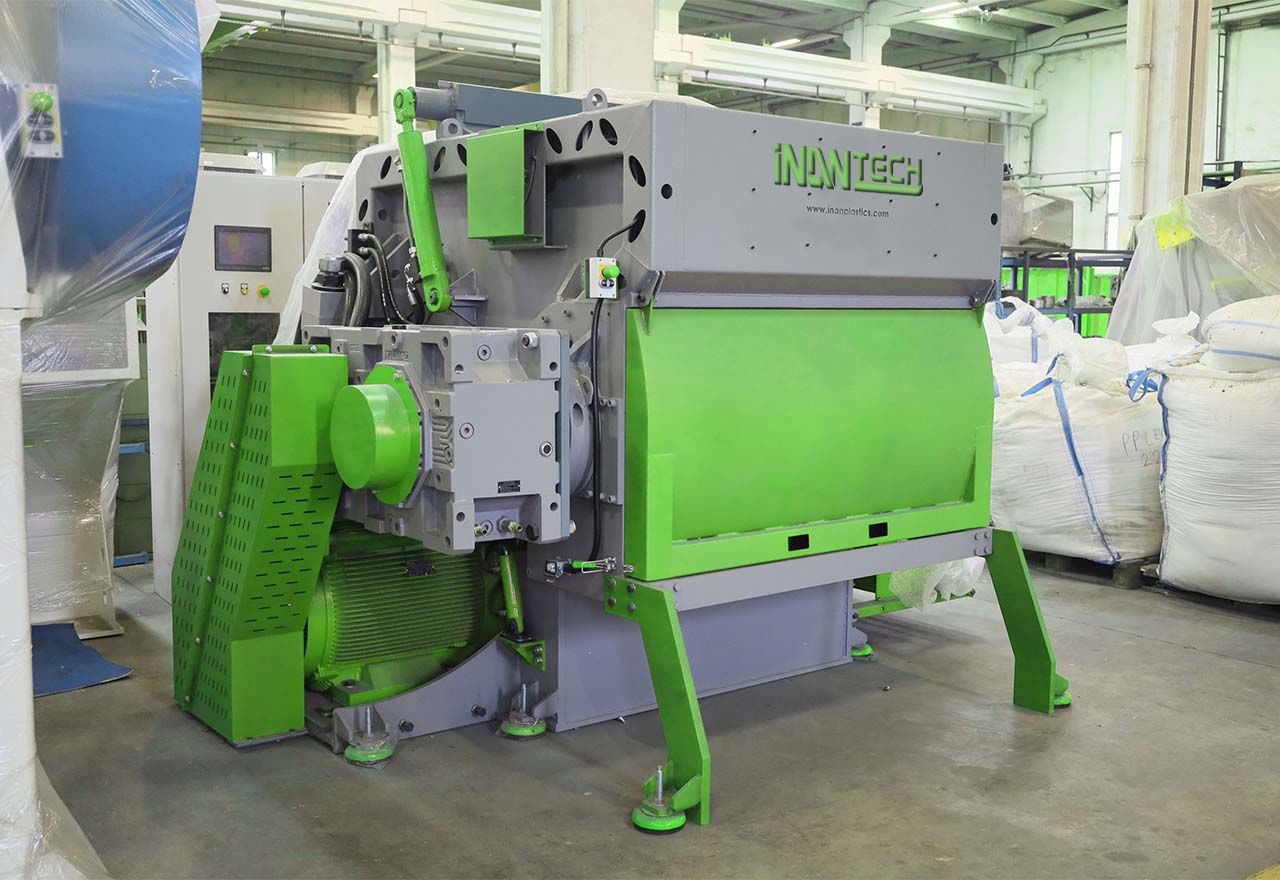

1500 Single-Shaft Shredder-1
1500 Single-Shaft Shredder-1

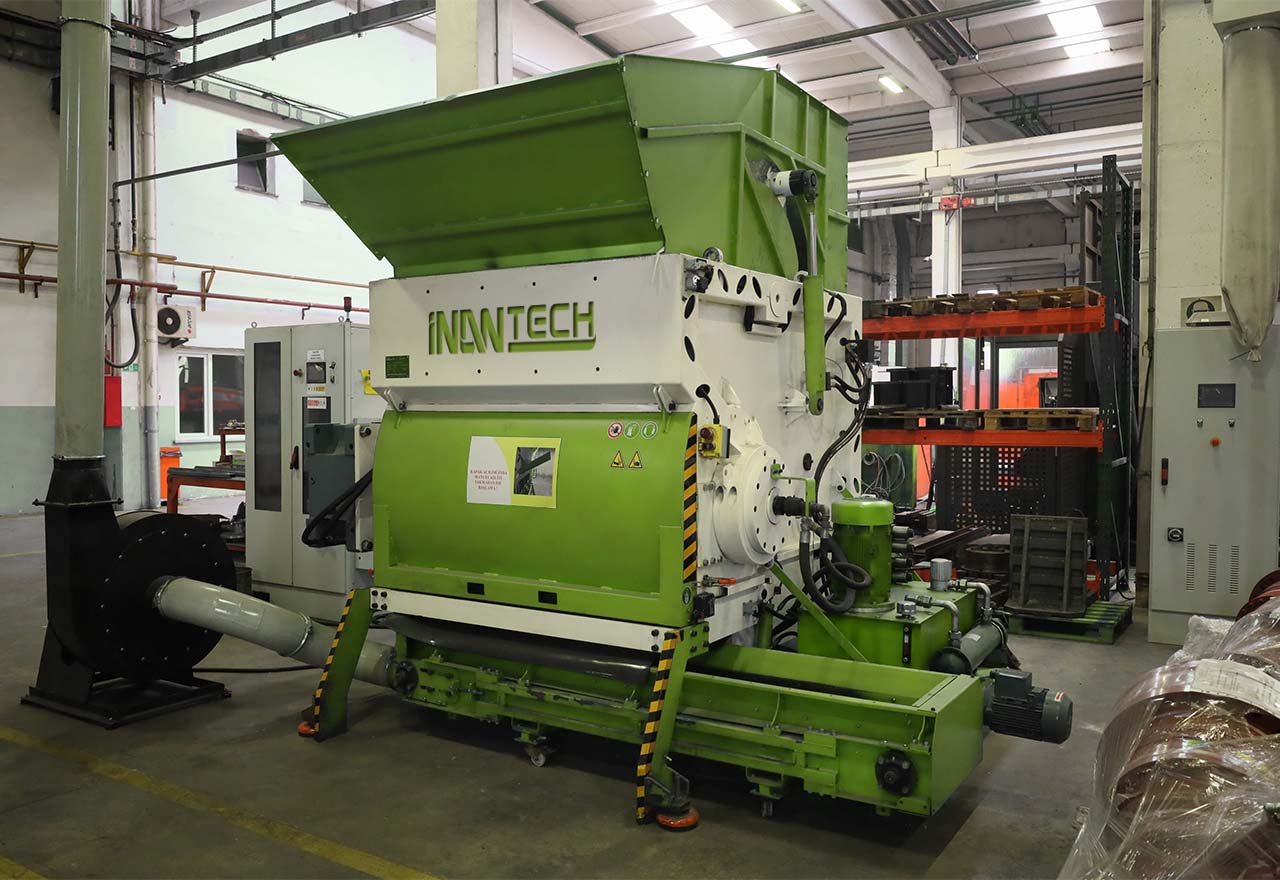

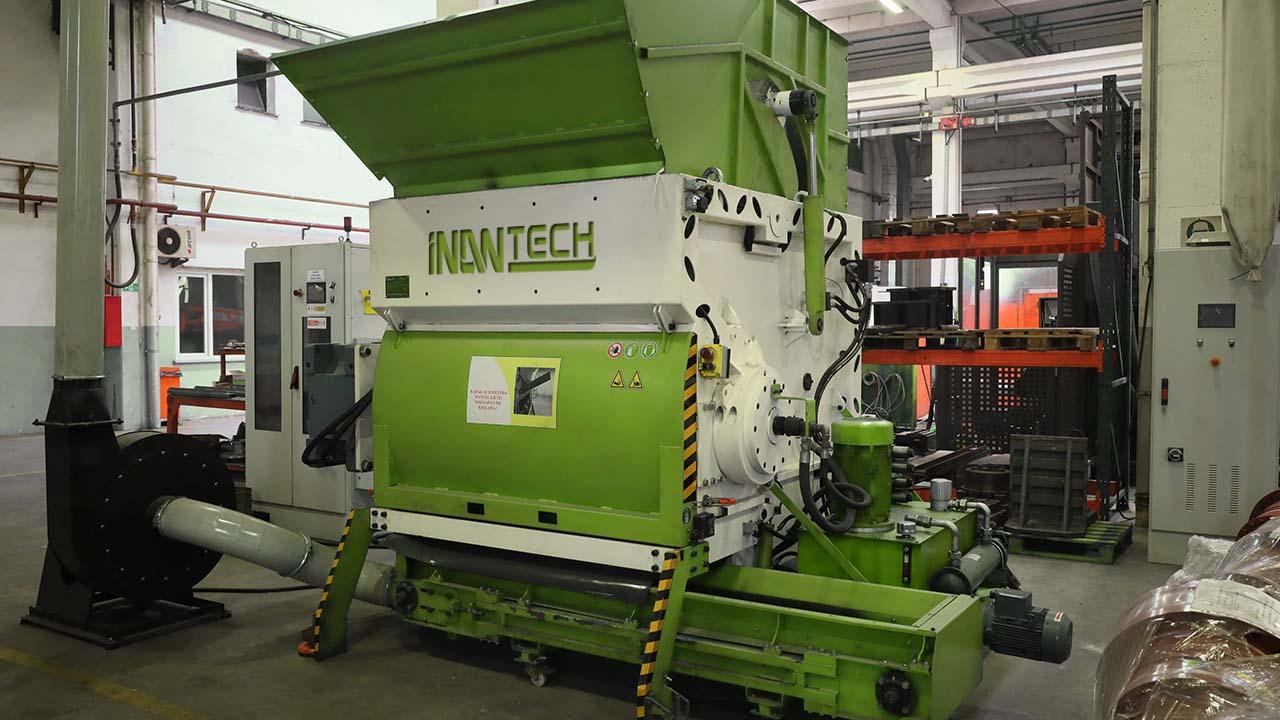

1500 Single-Shaft Shredder-2
1500 Single-Shaft Shredder-2

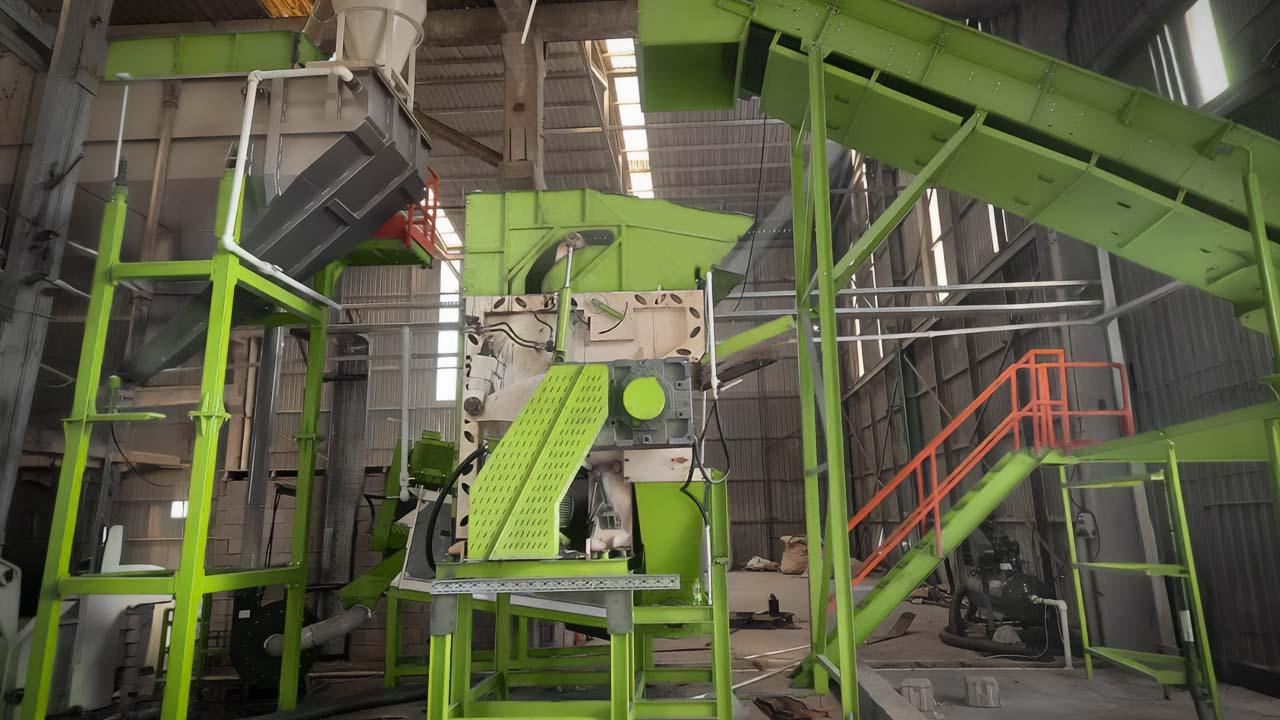

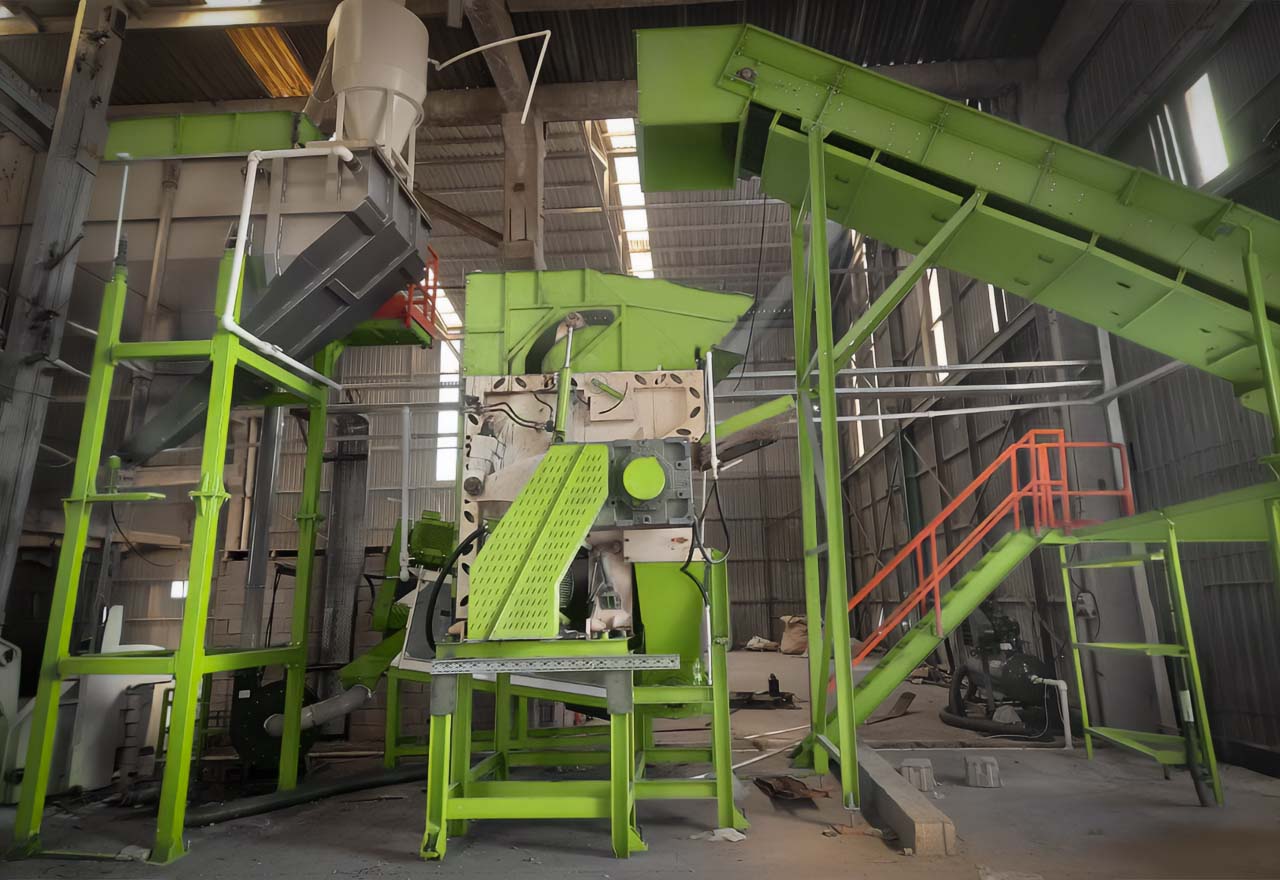

1500 Single-Shaft Shredder-3
1500 Single-Shaft Shredder-3
Video

In action

1500 Single-Shaft Shredder
Frequently Asked Questions

About this page

What type of shredder is the 1500?
The 1500 is a shredder machine in the single-shaft class; it is a heavy-duty class model.
What are the technical specifications of the 1500?
Dimensions, total power and approximate weight are determined according to the project and shared at the quotation stage. For more information, you can contact İnan Tech.
What is the difference between single-shaft and double-shaft?
A single-shaft shredder delivers homogeneous, size-controlled output thanks to the screen. A double-shaft shredder works without a screen and performs coarser, heavy-duty pre-shredding.
Do you provide spare parts, installation and service?
Yes. We provide blade and spare-part supply, installation, commissioning, operator training and ongoing technical service.
