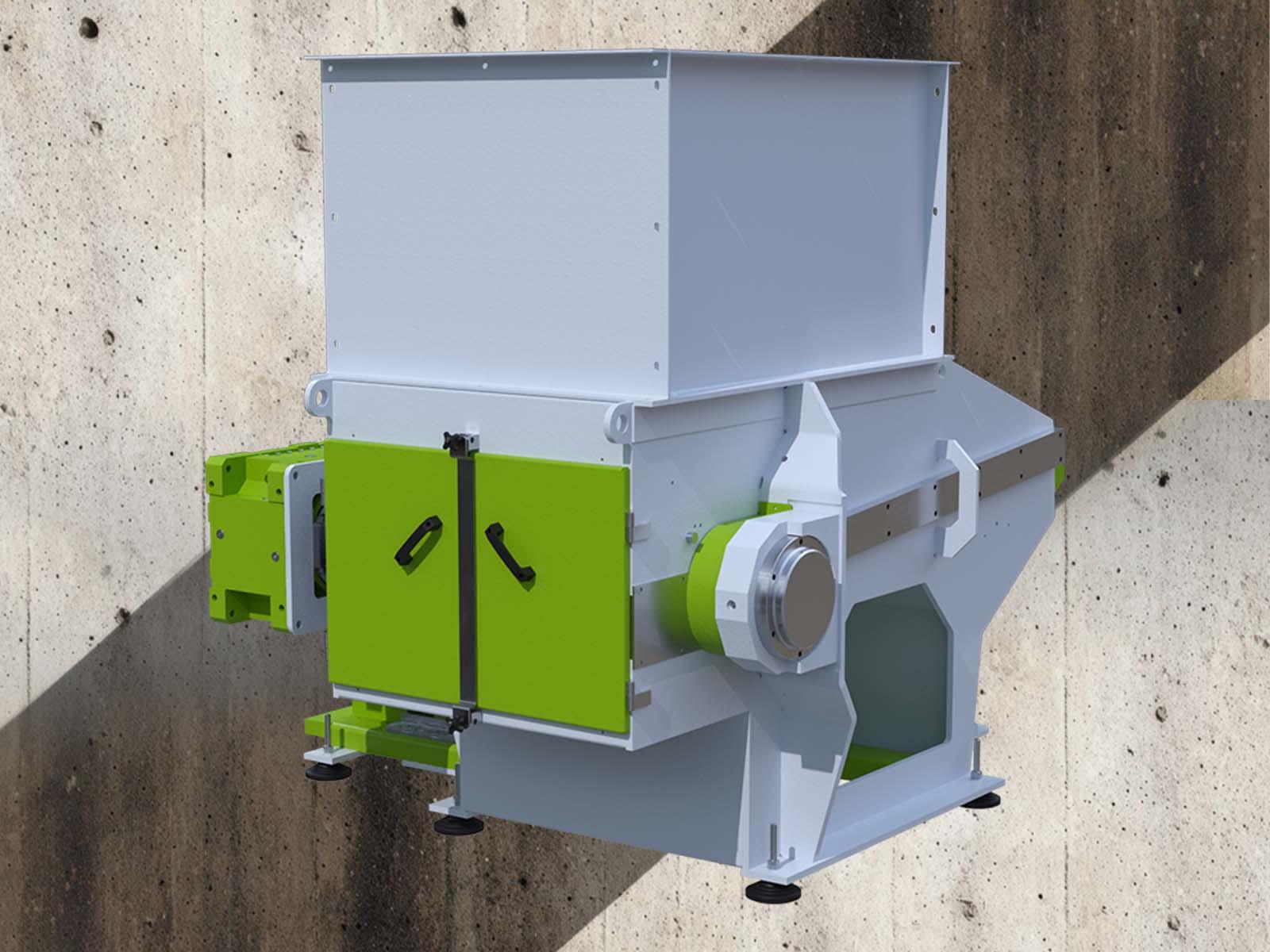

800 Single-Shaft Shredder

A compact / entry-level class shredder. For the controlled pre-shredding of bulky and tough plastic.

800 Single-Shaft Shredder
Technical Data

Features

Total Power
34.5 kW

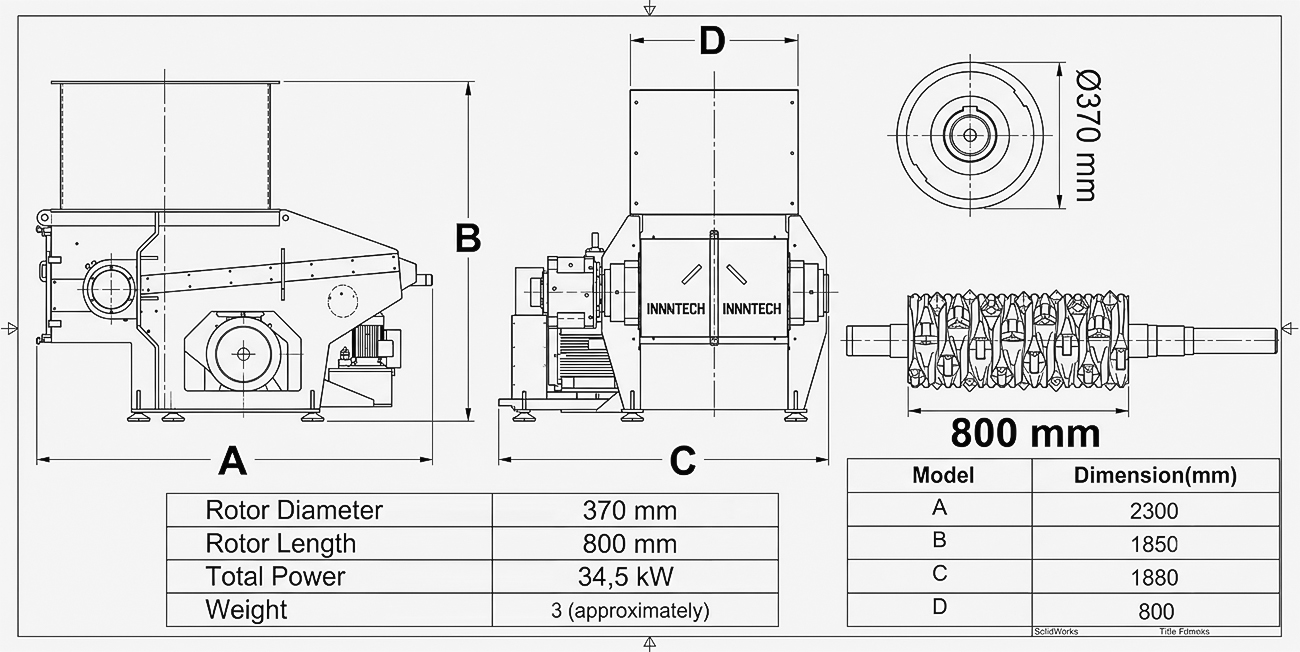

800 Single-Shaft Shredder technical drawing

What is the 800 and what is it used for?

The 800 is a single-shaft shredder in the compact / entry-level class. It runs with a rotating rotor, a hydraulic pusher and a screen; it shreds the material by pressing it against the rotor and releases only the pieces that pass through the screen openings. The output is therefore controlled and homogeneous. With its low speed – high torque principle, it processes tough inputs without jamming.

800 highlights

As the entry model of the single-shaft series, the 800 is suited to small- to medium-volume pre-shredding with its narrow feed width. With its pusher structure and screen it delivers a more homogeneous output; it is a practical starting solution for plants with limited space. For a wider feed opening, see the 1100 and 1300 can be reviewed.

Who is it suitable for?

  • Plants that want homogeneous, size-controlled output in a single stage
  • Processors of film, sheet, profile, injection scrap and packaging
  • Production lines that need continuous and balanced feeding
From the Field

Images

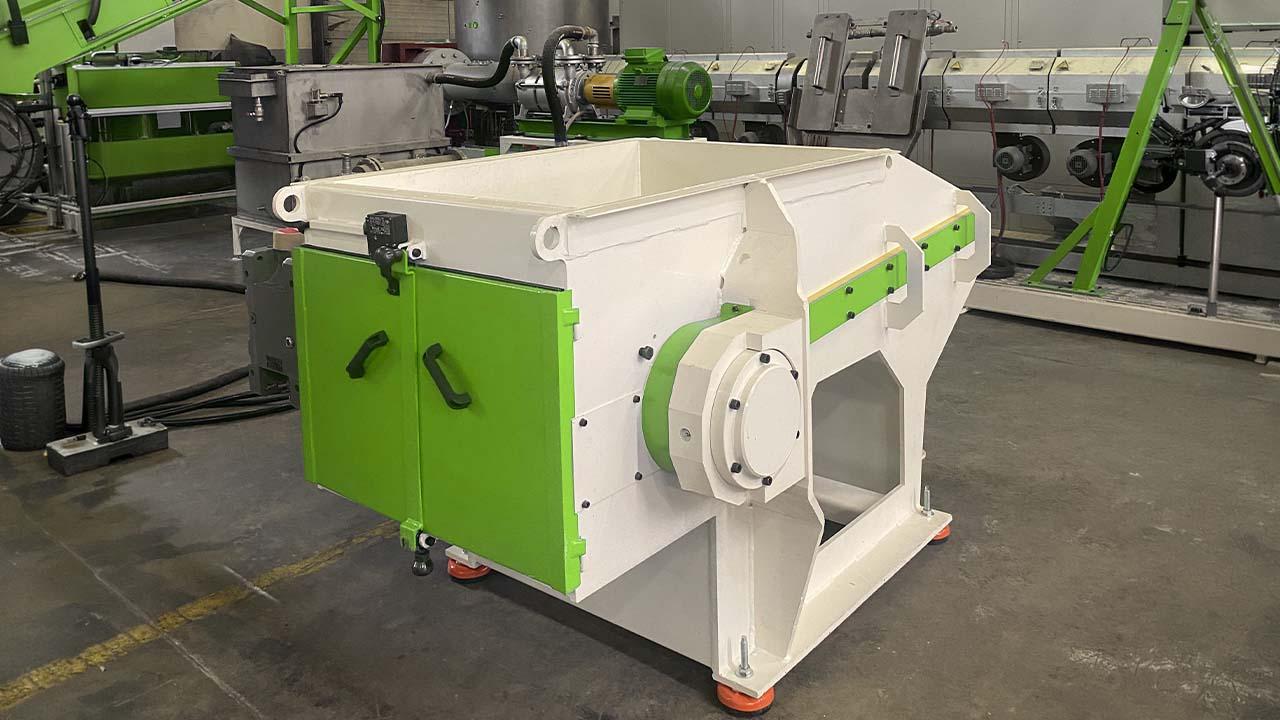

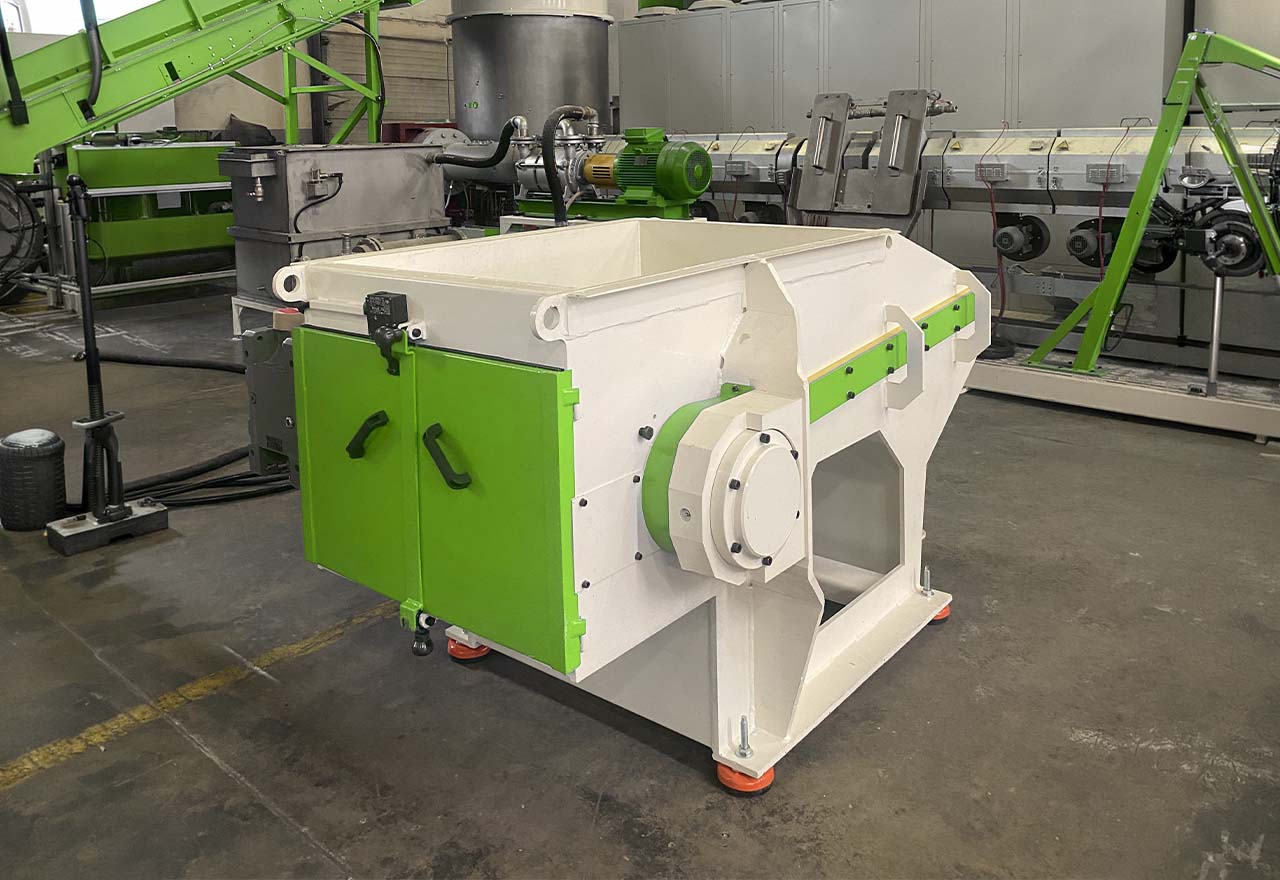

800 Single-Shaft Shredder-1
800 Single-Shaft Shredder-1

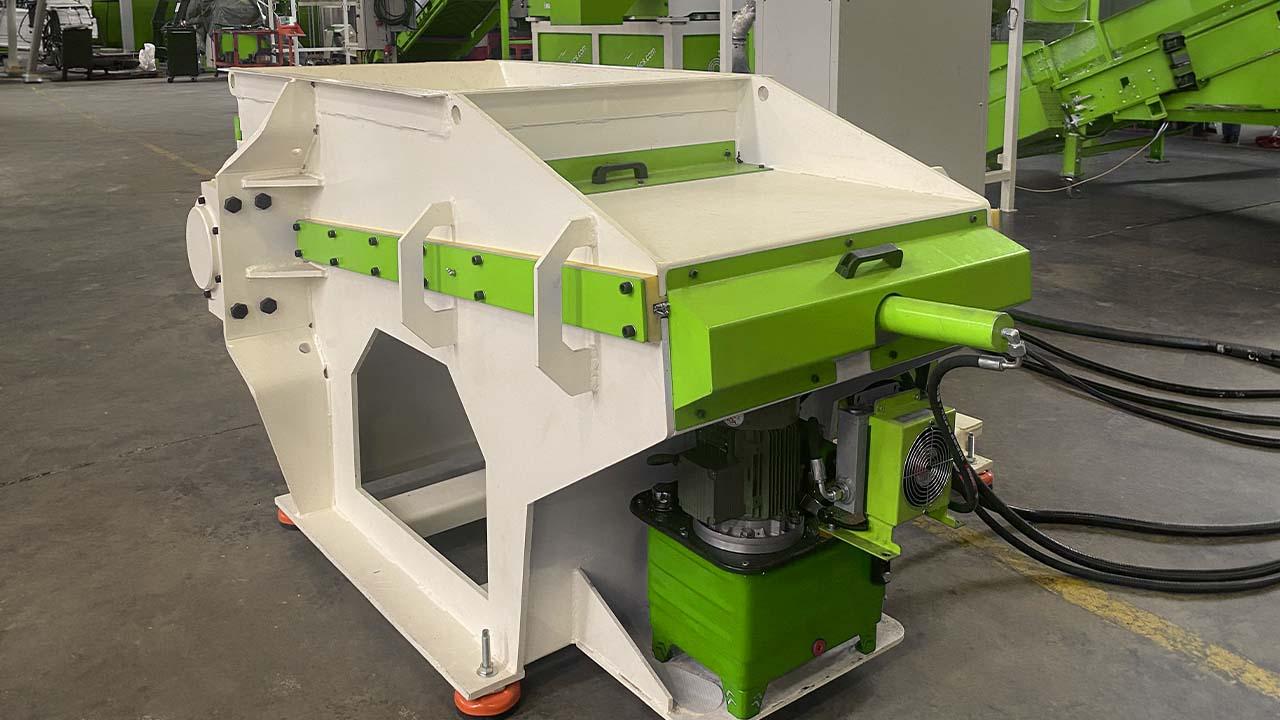

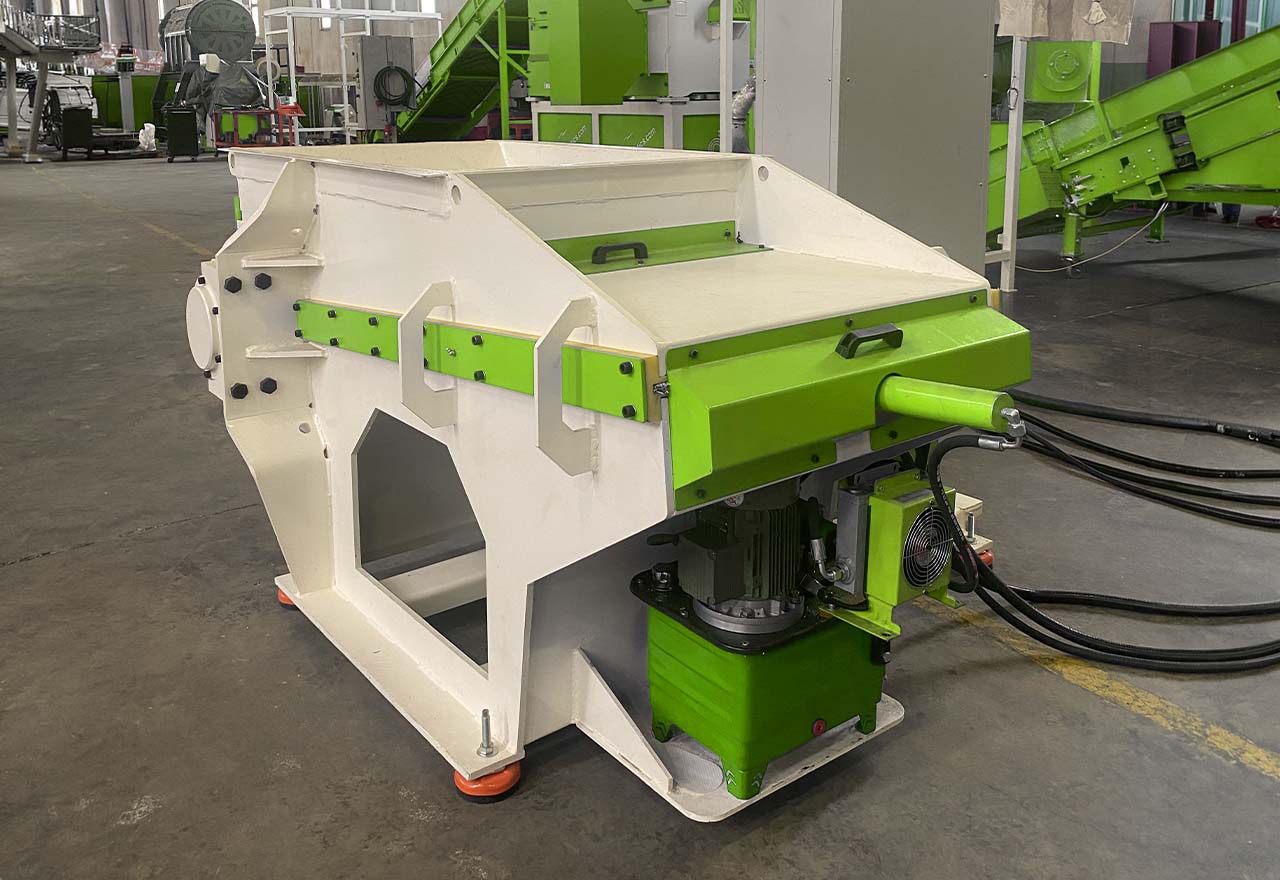

800 Single-Shaft Shredder-2
800 Single-Shaft Shredder-2

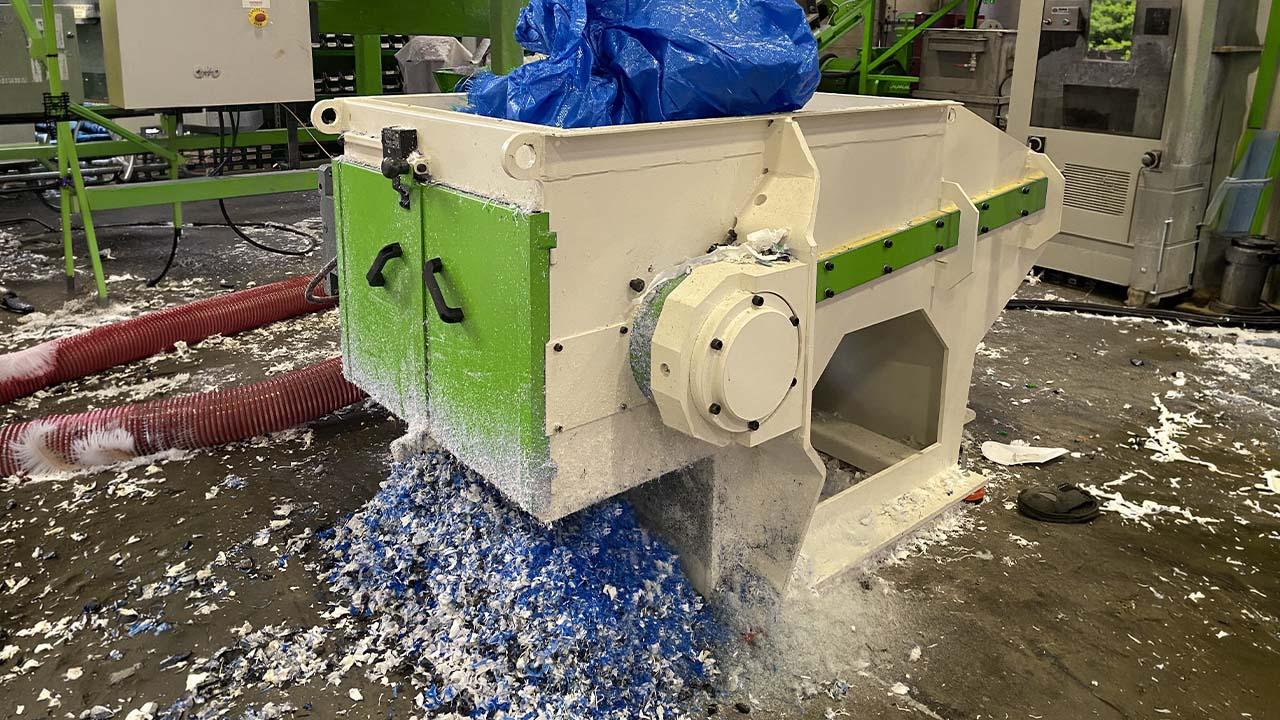

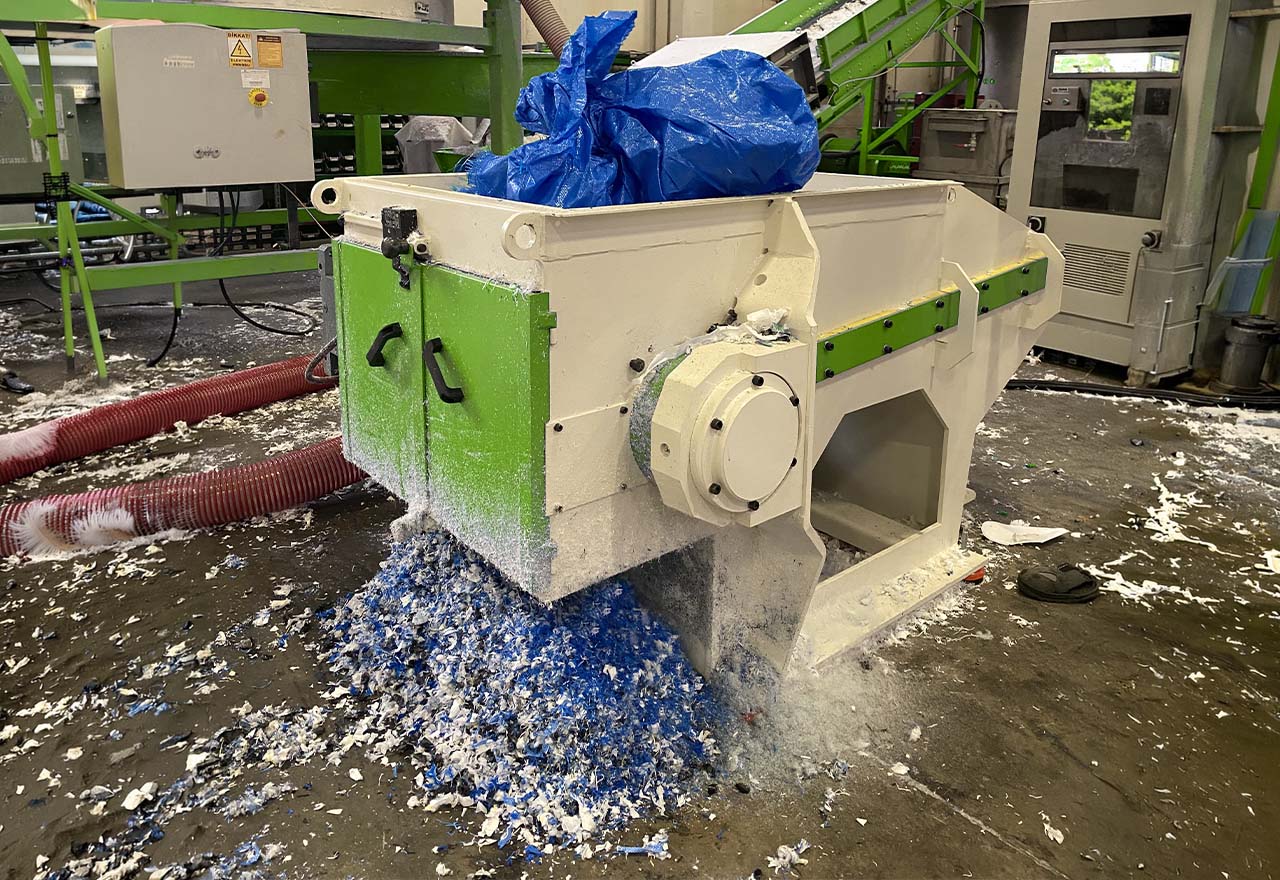

800 Single-Shaft Shredder3
800 Single-Shaft Shredder3
Video

In action

800 Single-Shaft Shredder
Frequently Asked Questions

About this page

What type of shredder is the 800?
The 800 is a shredder machine in the single-shaft class; it is a compact, entry-level model.
What are the technical specifications of the 800?
Total power is 34.5 kW. Dimensions and approximate weight are determined per project and shared at the quotation stage. For more information you can contact İnan Tech.
What is the difference between single-shaft and double-shaft?
A single-shaft shredder delivers homogeneous, size-controlled output thanks to the screen. A double-shaft shredder works without a screen and performs coarser, heavy-duty pre-shredding.
Do you provide spare parts, installation and service?
Yes. We provide blade and spare-part supply, installation, commissioning, operator training and ongoing technical service.
